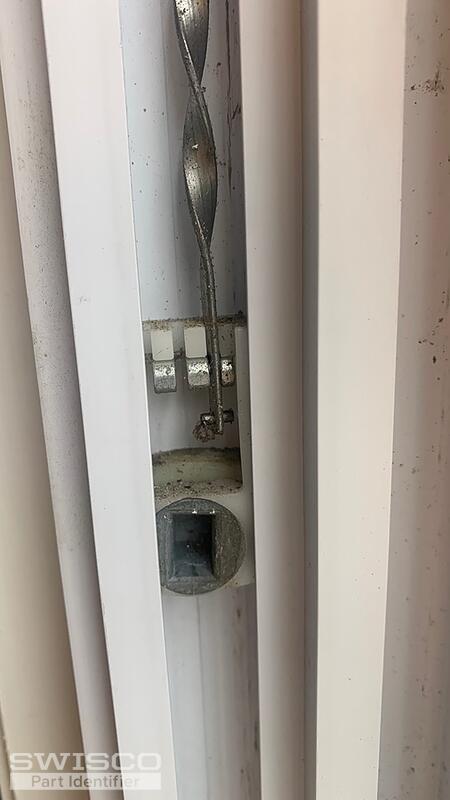

Pivot shoe

Your exact pivot shoe is no longer available but our 15-046 or 15-047 could potentially work to replace it. To confirm, you'll need to remove your shoe from the window channel and carefully compare the dimensions. It would be a good idea to confirm the cam measurements in addition to the outer dimensions of the shoe; ours have a 5/16" x 3/16" measurement (see below).

 Be sure to take a look at the video tutorials tagged below for an idea on how to remove and install them.

Alternate image for 15-046

Detailed image of the pivot bar slot of the 15-046 pivot shoe.

Alternate image for 15-047
