Pivot shoe cam to small

A handy person from South Carolina says:
February 26, 2021

Hi guys,

Well I ordered the 900 series balance system and pivot shoes Product Code: 15-134 swico. The problem now is, everything fits , except the cam hole, it's to small, the pivot bar is a little bit bigger so it won't fit in. So what are my options? New pivot bars? Or new pivot shoes?

Best regards Nik

Profile picture of Tom
Tom from SWISCO responded:
February 26, 2021

It sounds like you just bought the wrong shoe. We should be able to help, but I need a photo of your original shoe in order to find a good match. I'll also need the exact size of the cam hole, since that's the main problem.
A handy person from South Carolina says:
February 26, 2021
Hope these pictures are good enough..
Thumbnail of the uploaded file named 08D064A2-0313-483C-BC51-847B6A867D82.jpeg
Thumbnail of the uploaded file named 5120F164-17EB-4288-8923-48FC03E3731C.jpeg
Thumbnail of the uploaded file named 76A6AB14-D947-441F-A1D6-32F519E2C547.jpeg

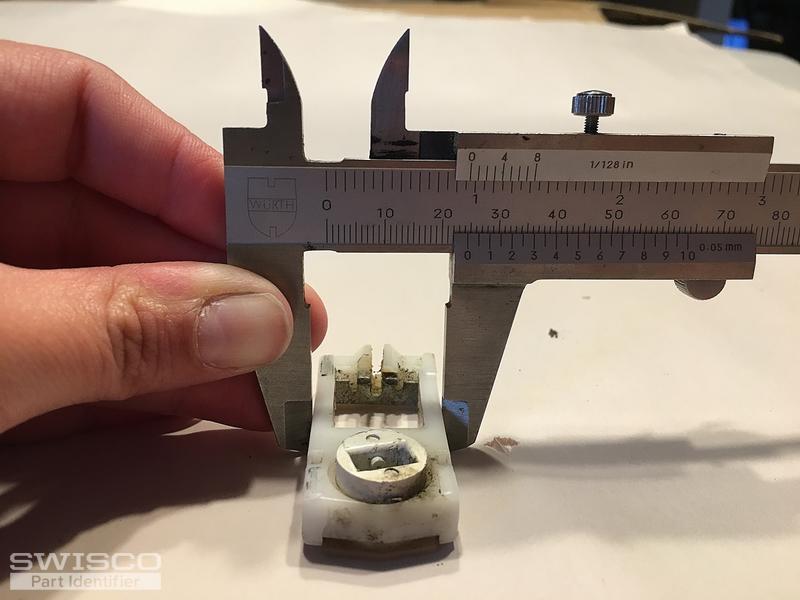

Thumbnail of the uploaded file named 477CC93F-6E5D-42D4-BF7B-0BC206AC063F.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 1, 2021

Thanks. It's tough to be sure, but that cam hole looks to be 3/16" x 5/16". If so, and assuming the dimensions otherwise match the 15-134, then you could use our 15-212 as a replacement. Look it over and see what you think. This is designed to be used with pivot bars like our 26-040.
A handy person from South Carolina says:
March 5, 2021
The cam hole is 9mm x 6mm.
Profile picture of Tom
Tom from SWISCO responded:
March 5, 2021

We don't have anything in that exact size, unfortunately. The 15-212 remains my best suggestion.
