Pivot shoe for Milgard double hung tilt

Handy Person from Hilo Hawaii

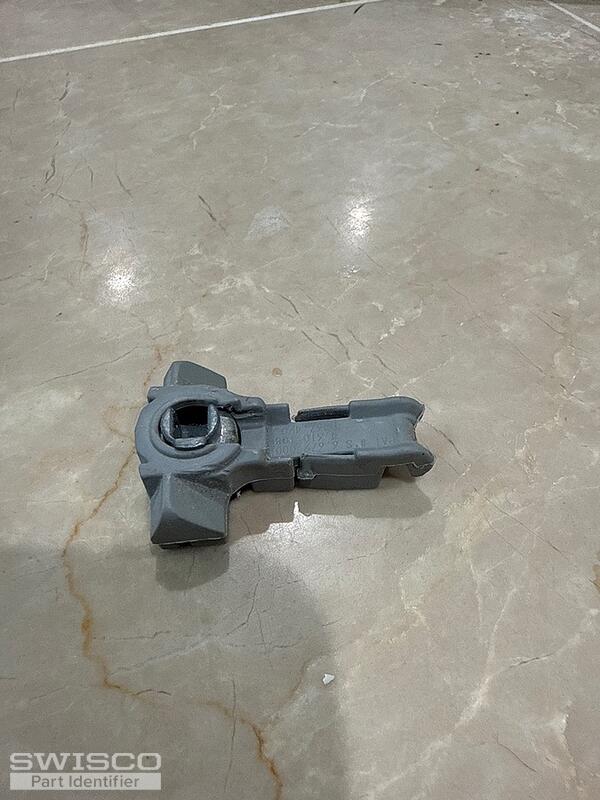

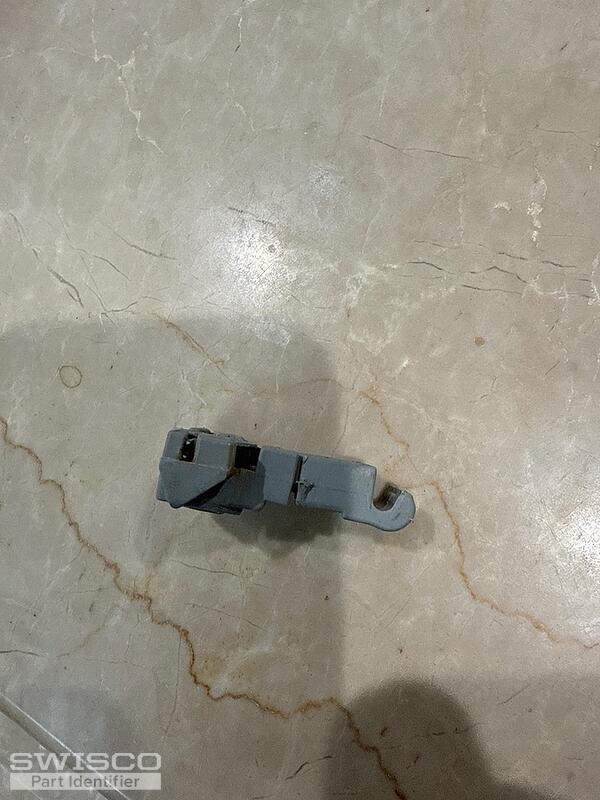

a bunch of these shoes gave up the ghost and broke. It's the only part that I need. Do you think you can help me

Apparently this is known as an inverted block and tackle balance. More precisely a series 747 inverted tilt block & tackle balance drop in t-lock, closed cam, metal spring.

5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Thanks for writing in! Since the shoe is the only part you'll need to repair the balances, I suggest taking a look at the 15-236 1-1/4" T-Spring Balance Shoe. This is made for balances that have a groove in the bottom of the balance, like yours.

Dimensions for 15-236
Dimensions for 15-236

Handy Person from Hilo Hawaii
Do you sell the entire balance?
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Yes, we do sell the entire balance. Although, it is important to note the 15-236 would not be compatible with it.

The replacement would be our Series 795 Channel Balance which is compatible with the 15-195 1-1/4" T-Lock Shoe, which has a closed cam like your existing shoe.

I'm happy to recommend a replacement for it. I'll just need to know the length of the metal channel, the stamp from the balance, and I'll need to see a photo of the attachment at the top of it. If the attachment at the top is a hook, I'll also need to see a photo of the hole it installs in at the top of the window.

Please don't hesitate to reach out with any other questions.
