Pivot shoe size

A quick learner from USA says:
June 13, 2014
Could you please tell me what size pivot shoe I need and what size tilt latch I need to replace my broken parts. Also I find a label that was on the window don't know if that helps. Thank you for your assistance

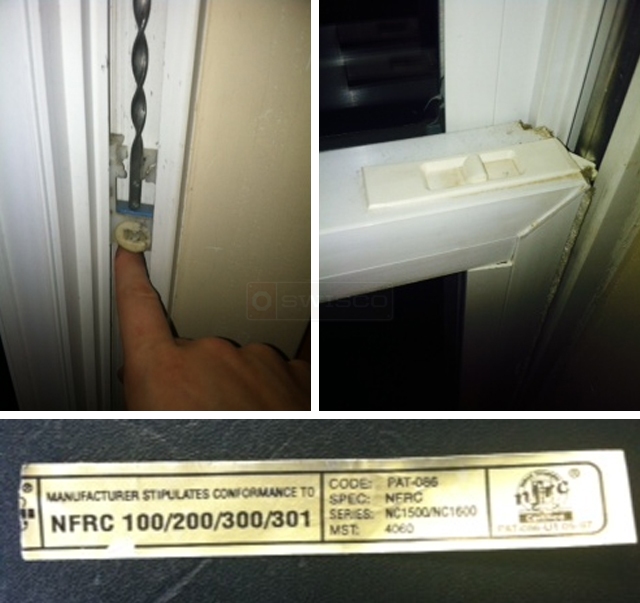

User submitted photos of window hardware.
A home owner from USA says:
June 13, 2014
I would like to know what size I need to replace the pivot shoes and the tilt latch. Please help! Thank you so much.
Profile picture of Paul
Paul from SWISCO responded:
June 13, 2014
Thanks for posting. For the pivot shoe, see our 15-046. For the tilt latches, see our 26-244 and 26-243. Just carefully compare the specs we show for these parts to your own to ensure that they match.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
