Pivot shoe with balance spring?

Home Owner from Illinois

Jun 22, 2024 7:29 pm

Advanced Window Corp double hung windows, pivot shoe with attached balance spring running up to a coiled receiver around mid-window. What part is this?

3 user uploaded images

4 Replies

Emily from SWISCO

Jun 25, 2024 3:54 pm

Hey there!

Thanks for reaching out to us. We may be able to help with this. Can you show us a photo of the pivot shoe removed from the window track? I'm afraid too much of it is obscured when installed.

Home Owner from Illinois

Jul 7, 2024 3:00 pm

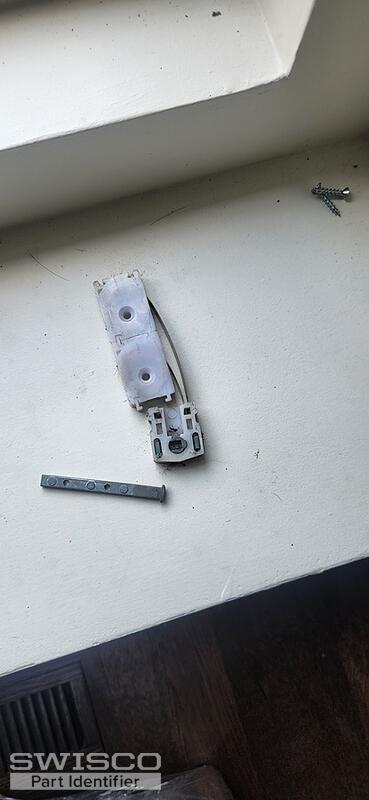

See attached for picture of the shoe and springs, along with the bar removed from the sash.

1 user uploaded image

Emily from SWISCO

Jul 8, 2024 8:27 am

Thank you! We don't sell this exact pivot shoe but take a look at the Series 140. I wonder if you could use this as a replacement. The 26-398 and 26-405 are the compatible pivot bars. Take a look at the specifications and see if at least one of the hole placements matches up.
