Pivot shoe and spiral balance

A quick learner from Sidney Ohio says:
November 30, 2021
Looking for replacement pivot shoe and spiral balances for a double hung tilt window.

The pivot shoe appears to be 2.25" tall x 1.25" wide and the spiral balance is 30".

Any help finding parts ?

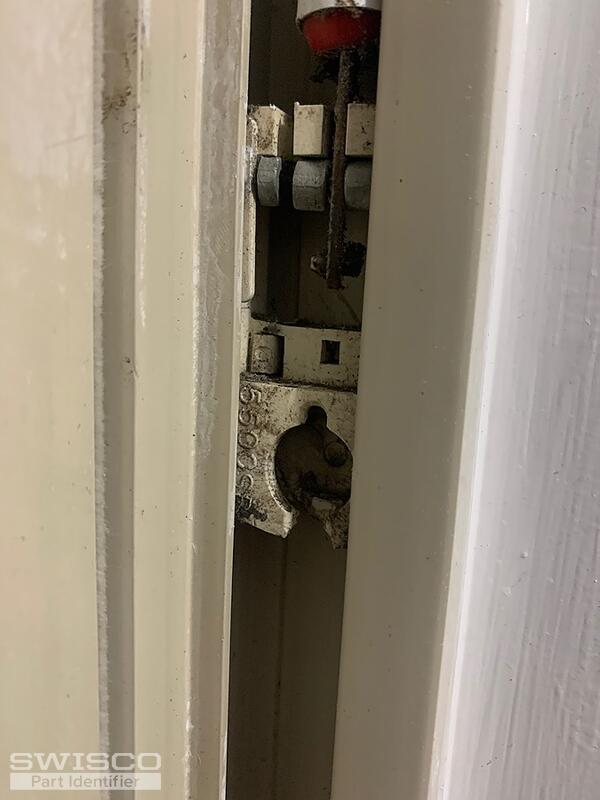

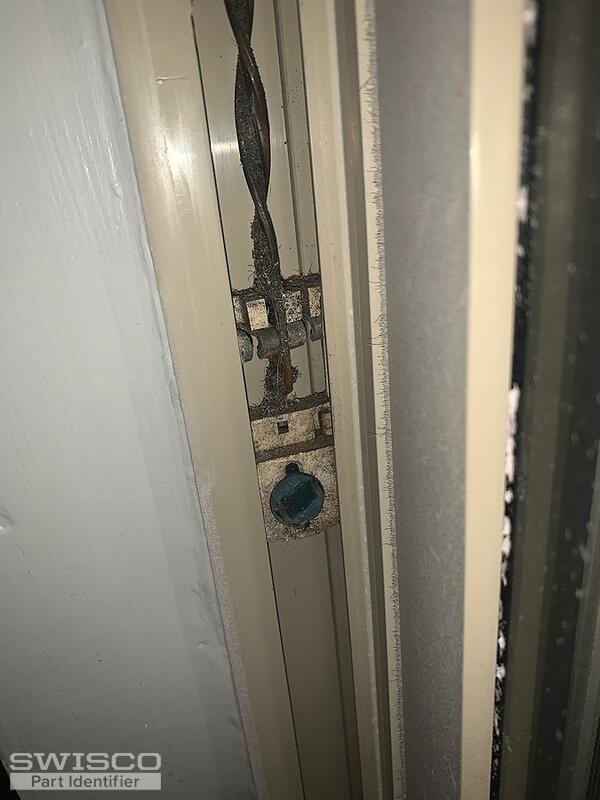

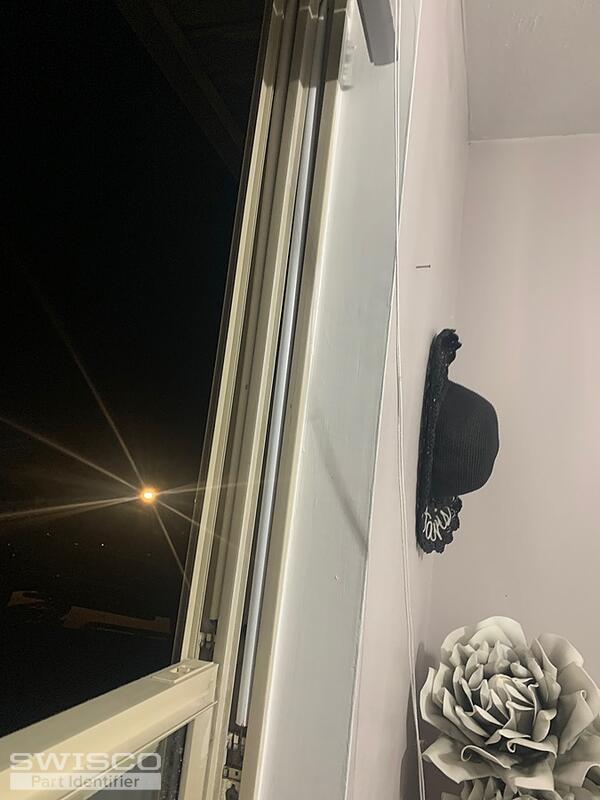

Thumbnail of the uploaded file named 9346F894-7AF7-4B8C-9D55-A89AF36A2E31.jpeg
Thumbnail of the uploaded file named 3577C168-35FC-4C88-A6A5-1276401262D1.jpeg
Thumbnail of the uploaded file named 33B3517D-8BCE-4CE5-BA32-D02C462D41F6.jpeg
Profile picture of Emily
Emily from SWISCO responded:
December 3, 2021

Hello!

This looks like a spiral balance for a tilt window. See either our S900 (3/8" diameter tube) or S600 (5/8" diameter tube). As for the pivot shoe, can you tell us the thickness? We carry a variety of pivot shoes and knowing that will help us narrow down some options.
A quick learner from Sidney Ohio says:
December 3, 2021
Yes it's a double hung tilt window. Thickness is tough because I can't remove it without removing the window and it's cold here so I'd like to do the removal same day. I don't mind buying multiple sizes if I have to. My guess is the thickness is approximately 1/2"
Profile picture of Emily
Emily from SWISCO responded:
December 3, 2021

The only 1/2" thick pivot shoe we carry with a similar style as yours is our 15-046. I can't guarantee that this is what you need without knowing the exact thickness but look it over and see what you think.
30" Series 900 Spiral Balance
30" Series 900 Spiral Balance
S900-30
$9.25
30" Series 600 Spiral Tilt Window Balance
30" Series 600 Spiral Tilt Window Balance
S600-30
$9.40
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
