Will you help me find this pivot shoe?

A quick learner from southern New Jersey says:

August 24, 2013

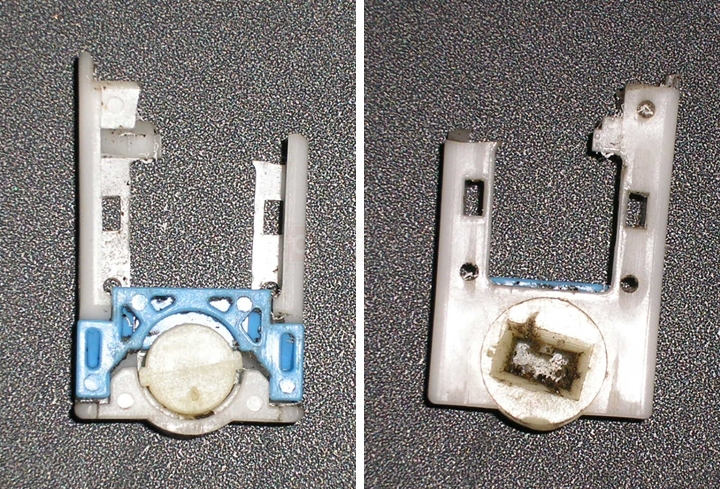

Hi Tom, I remove what is left of the pivot shoe and I am sending you 2 new pictures of the front and back of the shoe and also the measurments of the shoe and they are as followed, 1/4" deep, 2" inches long and 1 1/4" wide. On the back I noticed the blue part of the shoe moves so my guess it acts a stop when you tile the window. Aslo Thanks for Your help.

Frank

Tom from SWISCO responded:

August 27, 2013

Thank you for posting, Frank. Can you confirm that the thickness is 1/4"? I can't find anything with those exact dimensions. Let me know!

A quick learner from southern New Jersey says:

August 27, 2013

Sorry about that Tom, it is 1/2 deep not 1/4, that was my mistake when I typed you.. I am guessing it is You 15.046 pivot shoe.

Again Thanks

Tom from SWISCO responded:

August 28, 2013

Ah, great. That makes more sense. I agree, the 15-046 would be a great place to start.

Pivot Shoe, 1/2" Thick

15-046

$2.15
