Pivot shoes

Quick Learner
May 21, 2024 5:35 pm
Could you please direct me on your website where I could purchase these items. Also the tool necessary to fix the pivots.

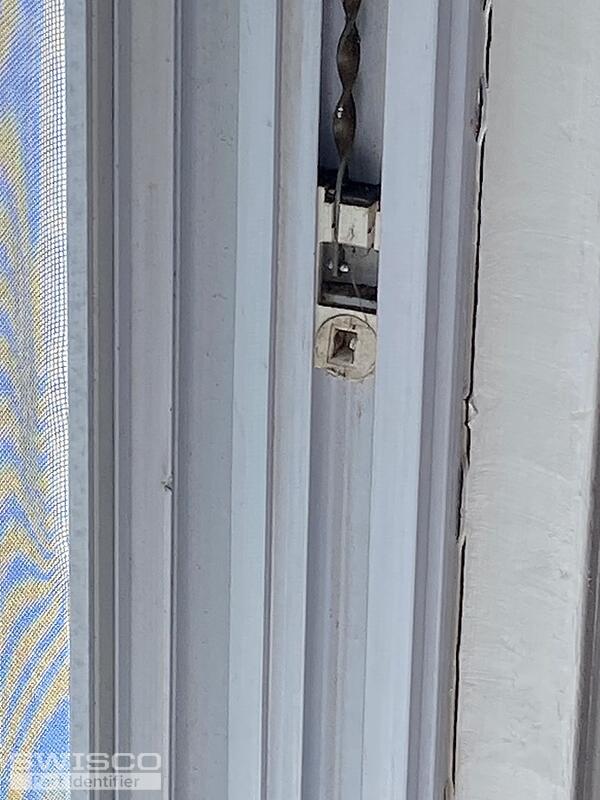

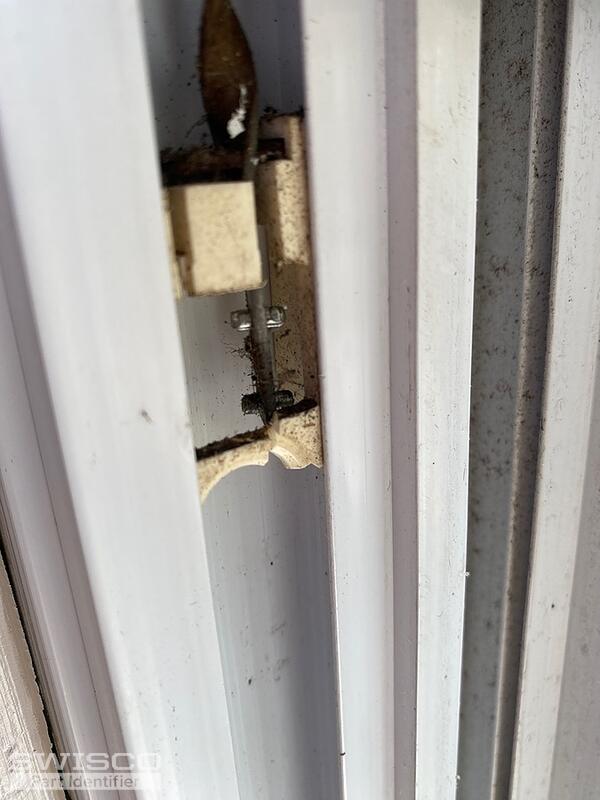

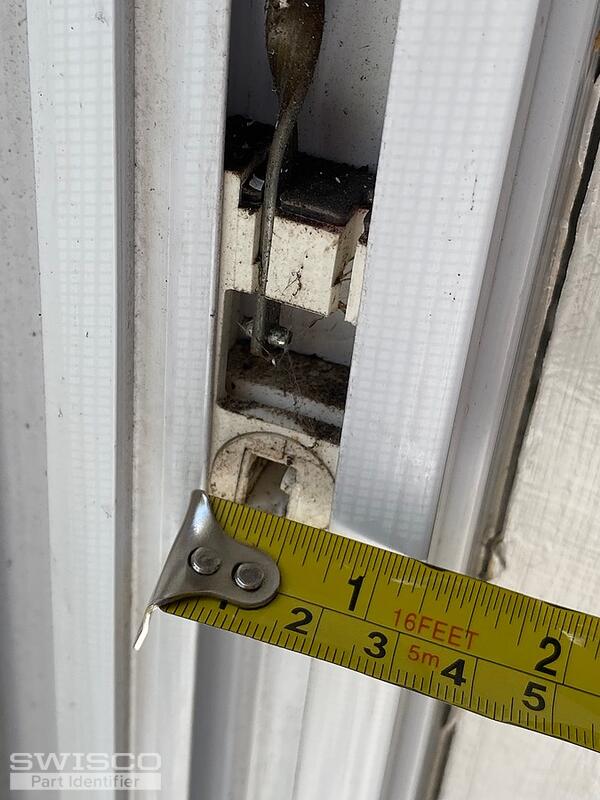

pivot shoe pivot shoe pivot shoe
3 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
May 24, 2024 1:52 pm
SWISCO
EXPERT

Hello there!

I'm afraid we can't be sure with it still installed and without written dimensions. The 15-046 is a start though. I recommend you remove your old pivot shoe and compare the specifications to confirm they align.

I'm not sure what tool you're referring to though. To remove the pivot shoe, you will have to make a cutout in the window track as shown in the video below.

Alternate image for 15-046
Alternate image for 15-046

Detailed image of the pivot bar slot of the 15-046 pivot shoe.
Detailed image of the pivot bar slot of the 15-046 pivot shoe.

+ Add a Comment
