Pivot shoes I'm trying to replace

Home Owner from 02474

Aug 19, 2026 9:48 pm

Attached are images of the pivot shoes I'm trying to replace for my spiral balance double hung windows.
The old pivot shoe fragment measures 1.25 inches across.
I'm not able to figure out what brand are my windows unfortunately.

3 user uploaded images

6 Replies

Bob from SWISCO

Aug 23, 2026 6:54 am

Hey there. The only way to know for sure what pivot shoe this is to remove the old one, preferably an undamaged version, and measure the width and thickness. See what you get and we can proceed from there.

Home Owner from 02474

Aug 25, 2026 4:27 pm

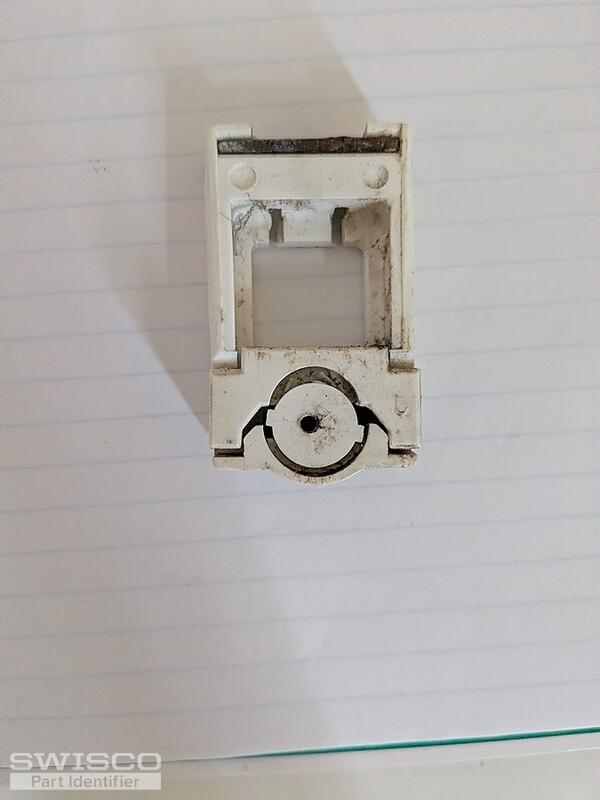

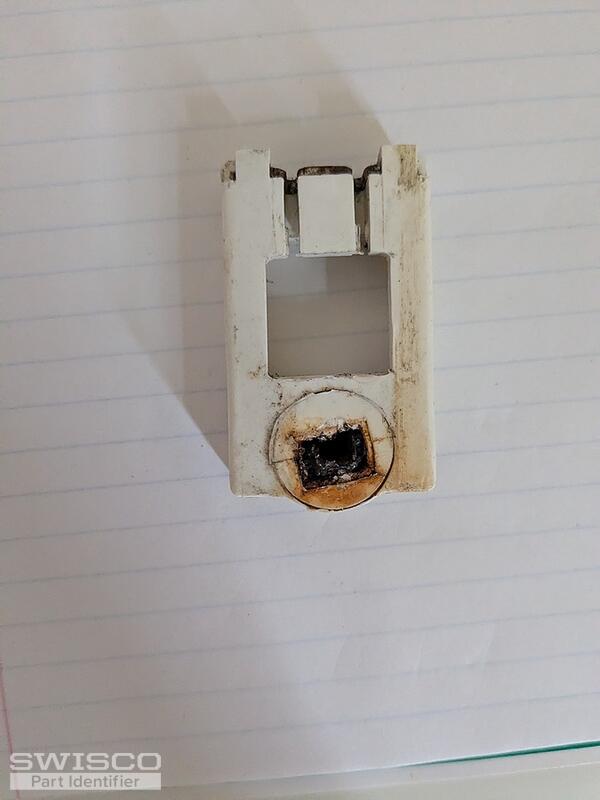

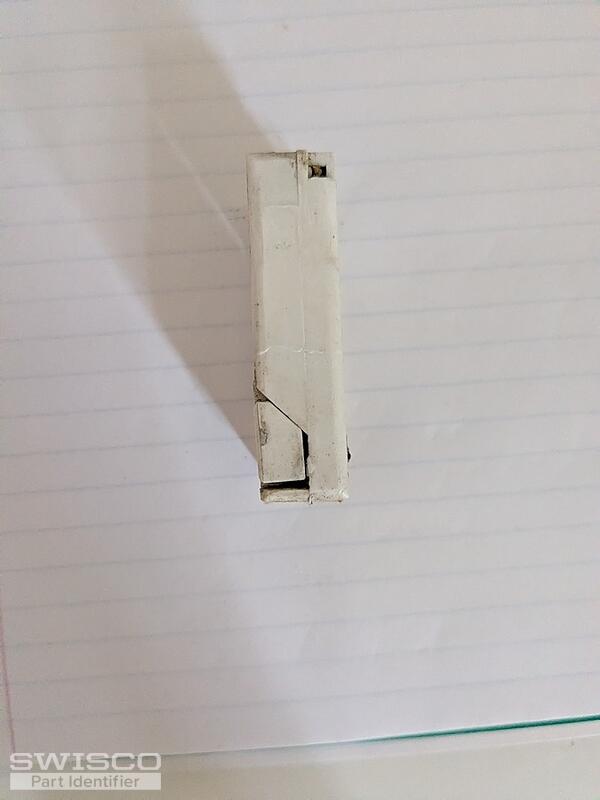

Ok I've been able to remove the old pivot shoe with jamb spreaders! Here are it's measurements along with photos:

2 inches tall
1.25 inches across
.5 inch front to back

I hope this helps!

3 user uploaded images

Home Owner from 02474

Aug 25, 2026 4:34 pm

The pivot shoe opening where the pivot bar goes into is just shy of a quarter inch.

Tom from SWISCO

Aug 31, 2026 2:58 pm

Thanks! Your exact pivot shoe isn't made anymore, but we've had a lot of success by using our 15-046 as a substitute. The design is a little different but it works the same way and fits in the same space, so it's no issue. Look it over and let me know if you had any questions.

Alternate image for 15-046

Home Owner from 02474

Sep 2, 2026 8:52 pm

Thank you very much for the information! I wish I saw your reply earlier, I just drove a while to a supplier who had your pictured item in stock , but great to know if I need more in the future.
