Pivot shoes question

A home owner from Boston says:
November 3, 2017
Hey there -
Happy Friday to you!

I need to replace a couple of pivot shoes that have broken in windows in my house. Pretty sure these are either 15-047 or 15-046 pivot shoes. They look more like the 15-047 with the black part, but the thickness really seems to be 1/2" like 15-046. If worse comes to worst, I can order a couple of each... but if it seems obvious to you guys that it's one or the other, let me know.

Thanks for your assistance!

-Mark M.

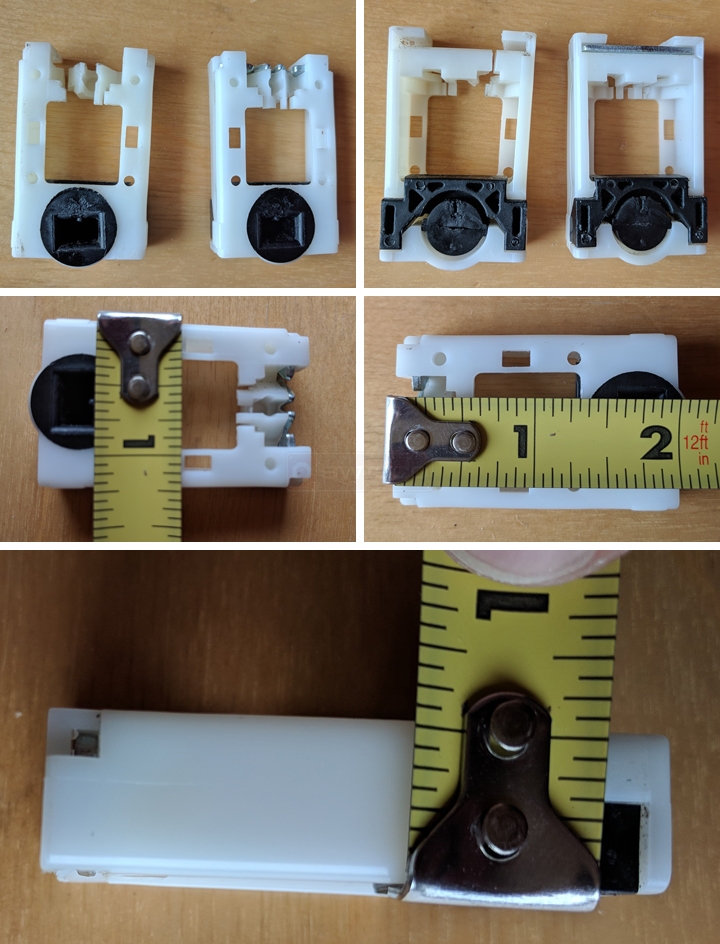

User submitted photos of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
November 8, 2017
I wouldn't worry about the color of the cam. The dimensions are more important. If your dimensions are the same as the 15-046, that would be a closer match.

Another thing to keep in mind is the size of the cam opening. Yours looks to be on the big side. Could you show us a picture of the pivot bar?
A quick learner says:
November 10, 2017
Thanks for the reply, I ordered the 15-046 and just replaced one them and it fit perfectly.

Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Pivot Shoe, 5/8" Thick
Pivot Shoe, 5/8" Thick
15-047
$2.20
