Good morning,
I am looking for a few of these. Do you have any? Thank you !
Pivot shoes replacement
Handy Person from Virginia
May 29, 2020 11:21 am
1 user uploaded image
5 Replies
Tom from SWISCO
Jun 2, 2020 1:04 pm
Sure, we carry a ton of them. You can see our selection here. In order to narrow it down to just one replacement part, can you tell me how thick your original is?
Handy Person from Virginia
Jun 2, 2020 10:16 pm

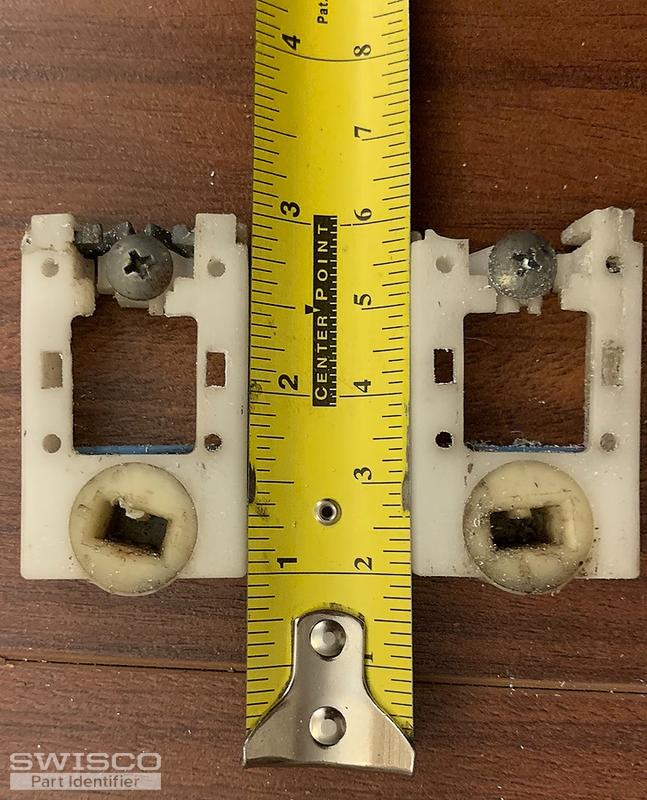

Sure thank you! Can you also tell me which rod I need? Let me know if the pictures are not clear enough. Claudia
5 user uploaded images
Tom from SWISCO
Jun 3, 2020 8:28 am

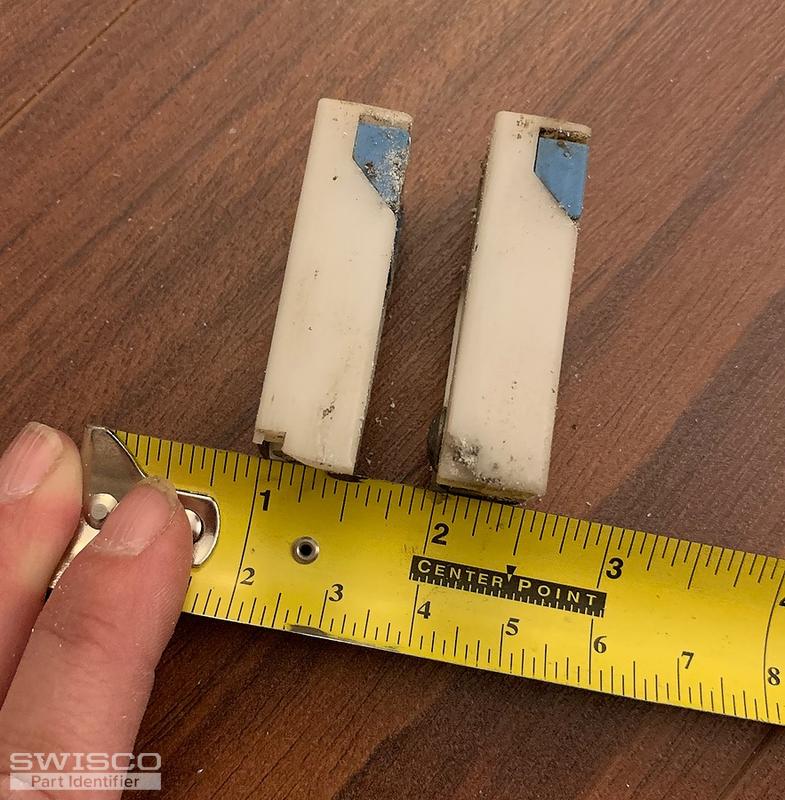

The thickness of your shoe appears to be 1/2", which would make it our 15-046. However it is admittedly a little tough to tell. You should triple check that dimension to be sure. If it differs, even by 1/32", then you might have something else.

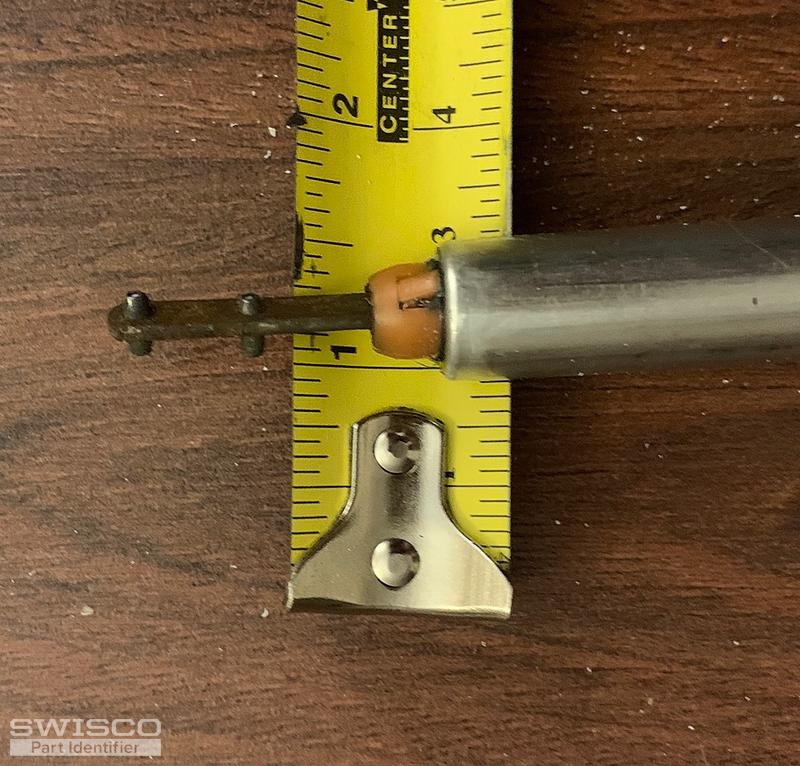

It's also tough to tell the spiral balance diameter. It looks to be 9/16", which would make it the Series 600. There's also the 3/8" Series 900, though.
Handy Person from Virginia
Jun 3, 2020 8:55 am
Yes ! I ordered them last night ! Thank you so much. Your linked really helped. I will be back for more hardware! Claudia
