Pivotal Shoe Replacement

A home owner from East Windsor NJ 08520 says:

Hello I'm Jerome and in need of (10) pivotal shoes,..

It has a Pat. #5,704,165

Thumbnail of the uploaded file named 20220322_175355.jpg
Thumbnail of the uploaded file named 20220322_175230.jpg
Thumbnail of the uploaded file named 20220322_175330.jpg

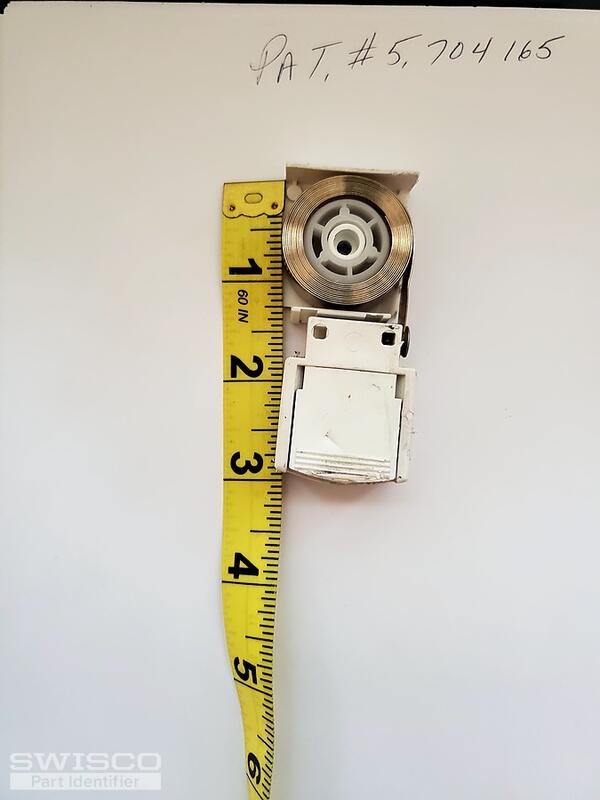

Thumbnail of the uploaded file named 20220322_175129.jpg

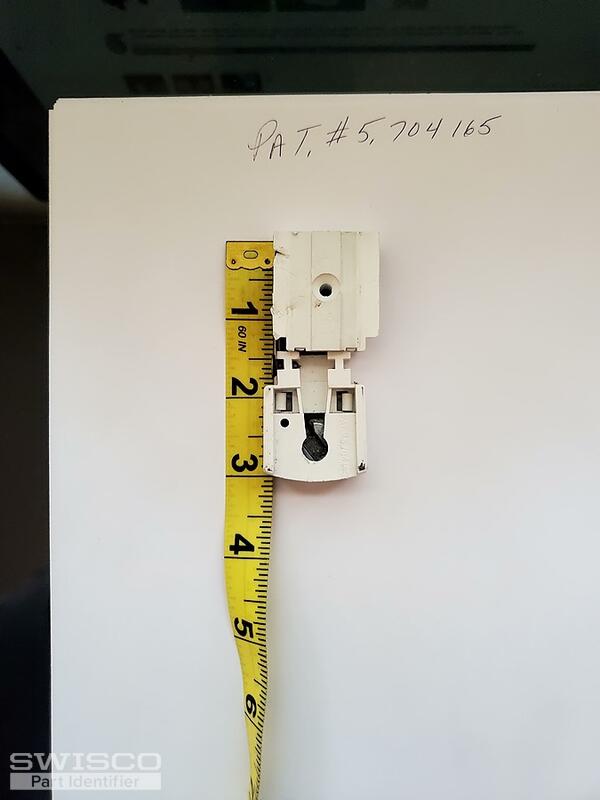

Thumbnail of the uploaded file named 20220322_175109 copy.jpg
Profile picture of Paul
Paul from SWISCO responded:

This appears to be a somewhat older coil balance assembly. That said, our modern 15-199 may work for you. Just make sure to compare dimensions to guarantee that they it will fit in the same track.

This is designed to be used with our Series 160 coil springs, which has a "T" end that locks onto the pivot shoe, instead of a screw. You can use the weight stamped on your existing coil's band to confirm which option to pick. Finally, the nylon support and spring cover is our 15-150S
