Plastic hardware for window balance

Contractor from Raleigh, North Carolina

Apr 5, 2019 8:57 am

I am in need of many of the components for the window balances including a few springs. Our needs are urgent as we have at least 45 windows in a nursing facility that have an issue with staying open due to these broken parts. Thank you

David

4 user uploaded images

4 Replies

Bob from SWISCO

Apr 5, 2019 9:00 am

Hi David. We can help you replace these old block & tackle balances, but I need to see both the bottom attachments and the clip at the end of the cord that connects to the jamb track. Keep in mind that you should make sure these balances are uniform among all the windows you need to repair. From there, we should be able to identify substitutes for you. Many thanks.

Contractor from Raleigh, North Carolina

Apr 5, 2019 10:57 am

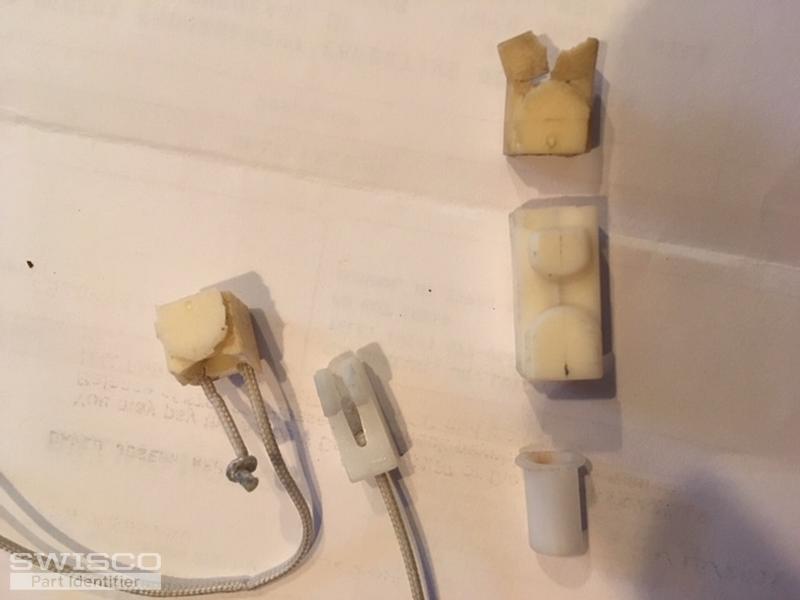

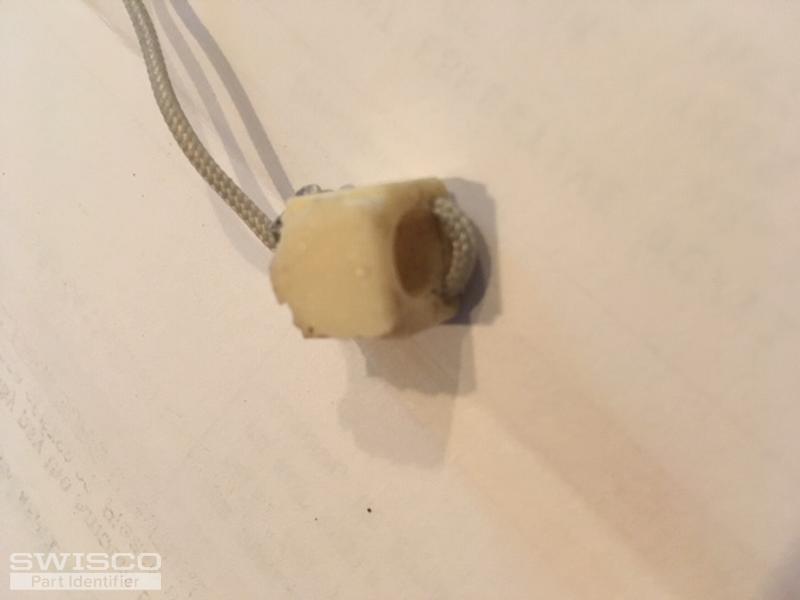

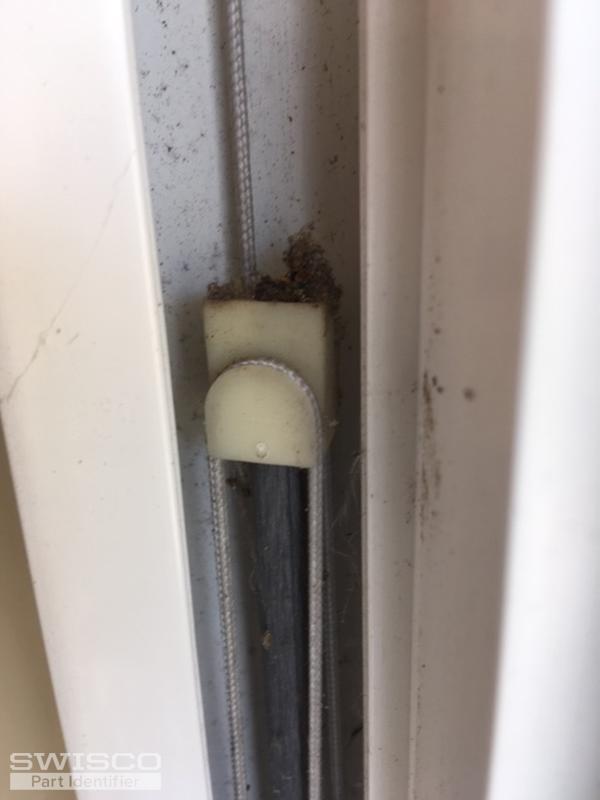

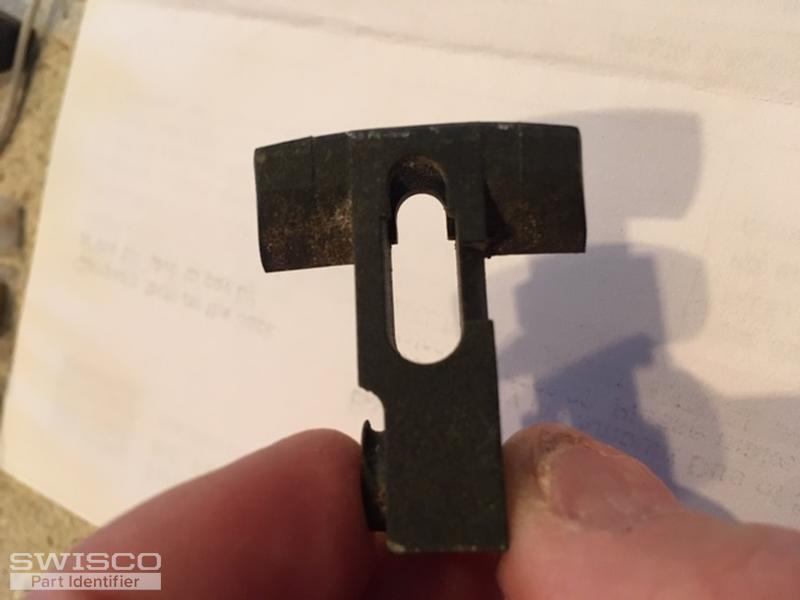

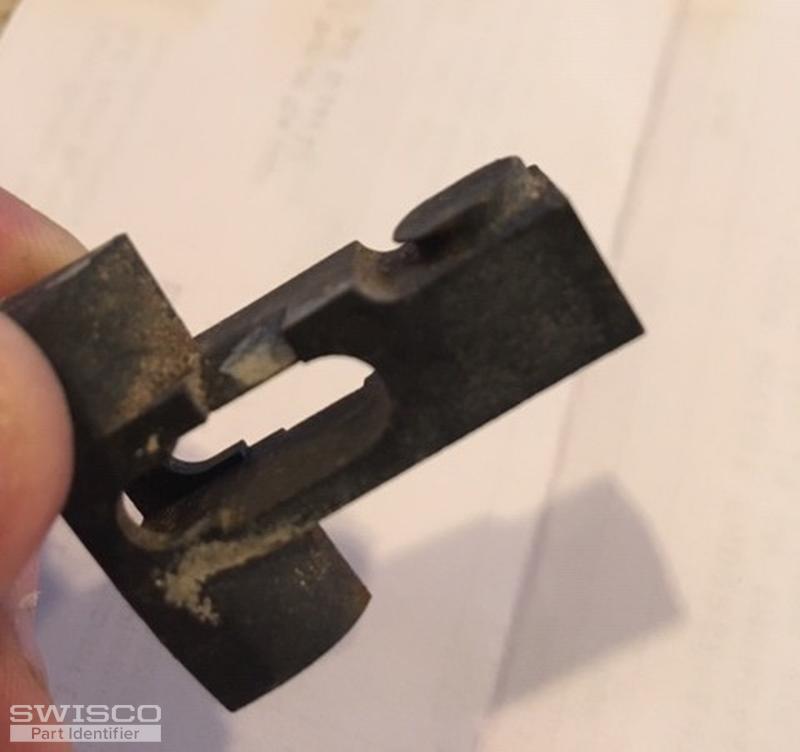

The plastic rod is 27 3/16 long and the spring is 13 3/8" long measured from the hook ends. The cord is approximately 48" long

4 user uploaded images

Bob from SWISCO

Apr 5, 2019 1:16 pm

OK, thanks for sending these pictures. This is what I suspected: you have an old crossbow balance that we don't make anymore. However, you can replace this with our superior Series 795 Channel Balance. Watch the video below for more details.
