Please help identify the part

Quick Learner from Michigan

Apr 17, 2023 6:09 pm

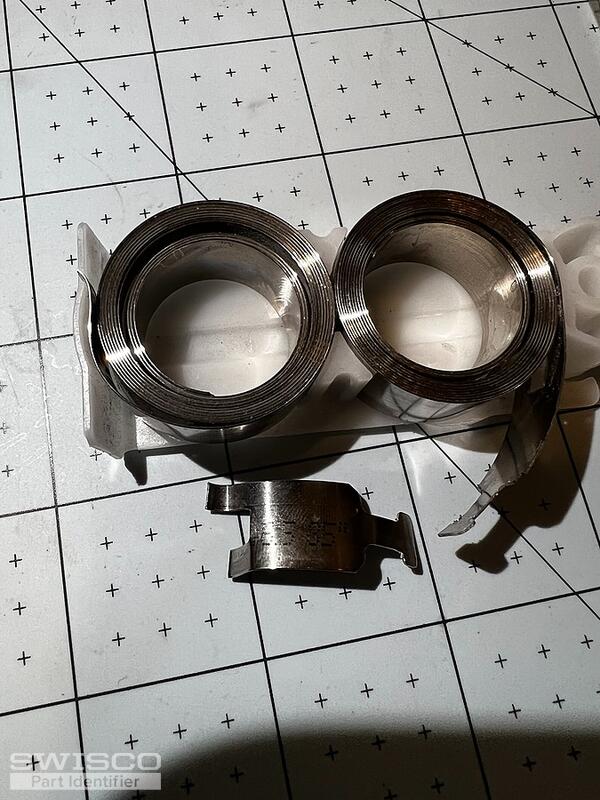

Based on the imprint on the coil (6.5 35") and our research on your website, we think it is the series 160 6.5 lb 35" coil. Can you please confirm? Thanks.

1 user uploaded image

6 Replies

Emily from SWISCO

Apr 19, 2023 11:23 am

Hello there!

We'd be happy to help confirm if the Series 160 is the right part for the job but we'll need more information. Can you show us a photo of your pivot shoe? That will allow us to confirm the compatible springs.

Quick Learner from Michigan

Apr 19, 2023 12:53 pm

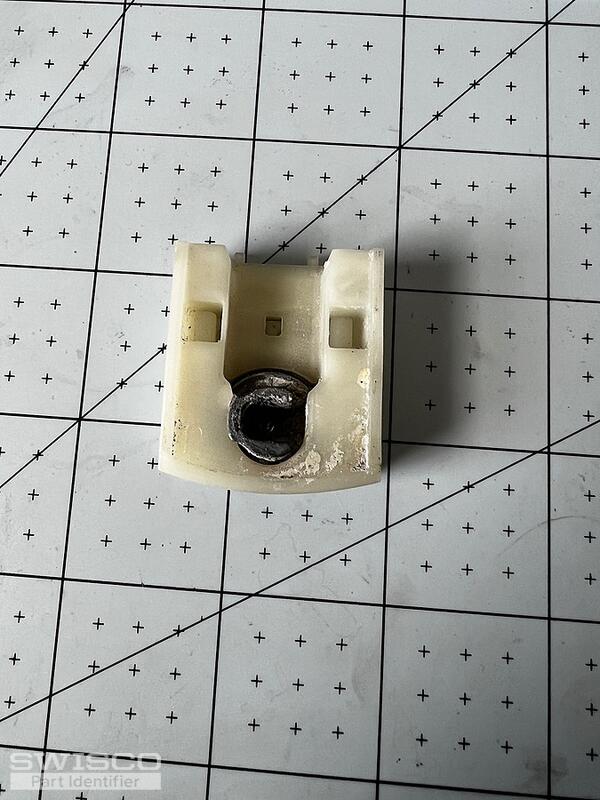

Thanks for your reply. Please find the image of the pivot shoe.

1 user uploaded image

Emily from SWISCO

Apr 19, 2023 1:08 pm

Thanks for getting back to me! We don't sell your exact pivot shoe but our 15-199 looks like a good match. This is designed to use the 1/2" wide Series 160 and 3/8" wide Series 165. I'm not sure the width of yours so you'll want to measure the width of the coil spring band to confirm.

Quick Learner from Michigan

Apr 19, 2023 2:09 pm

Emily, Thanks for the prompt replies. Pretty impressed.
I can confirm that the width of the coil sprint is 1/2".
Thanks for confirming that the series 160 will be a good match.
We were planning to use the existing pivot shoe. But good to know the pivot shoe that will work with this.

Is there any way the shipping charges can be avoided/waived at all?

Emily from SWISCO

Apr 20, 2023 8:40 am

No problem! I'm happy to help. We can't waive your shipping, unfortunately. I am very sorry for the inconvenience.
