Please help identifying GA Aluminum Window parts

Home Owner from Quarantine in Snellville, GA

Mar 25, 2020 5:53 pm

Hi! I have enclosed pictures of my badly damaged aluminum window parts that I need help identifying.

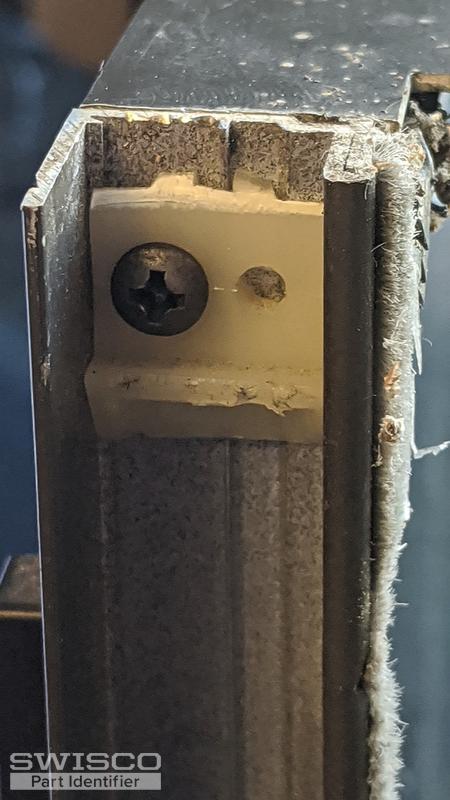

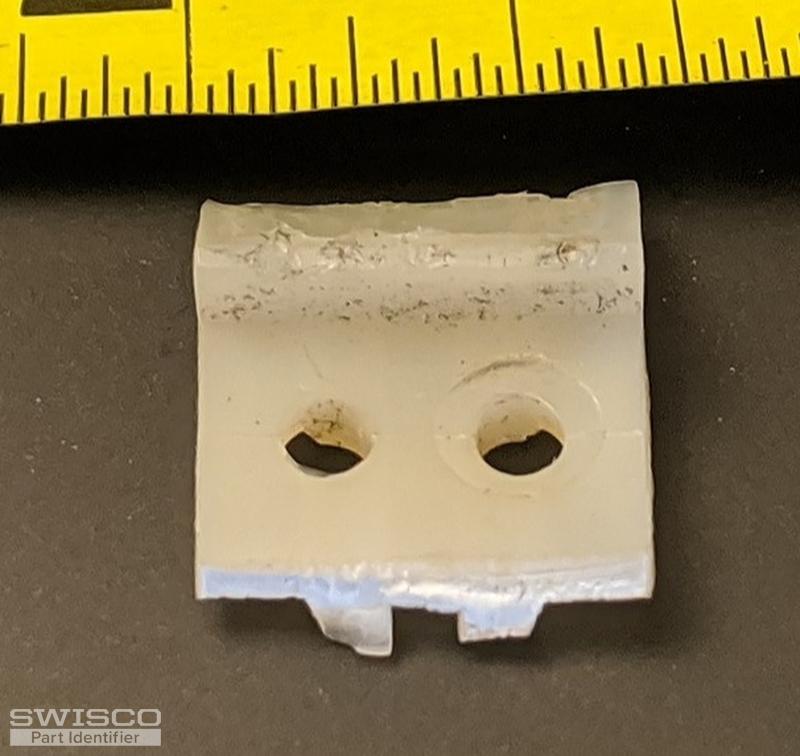

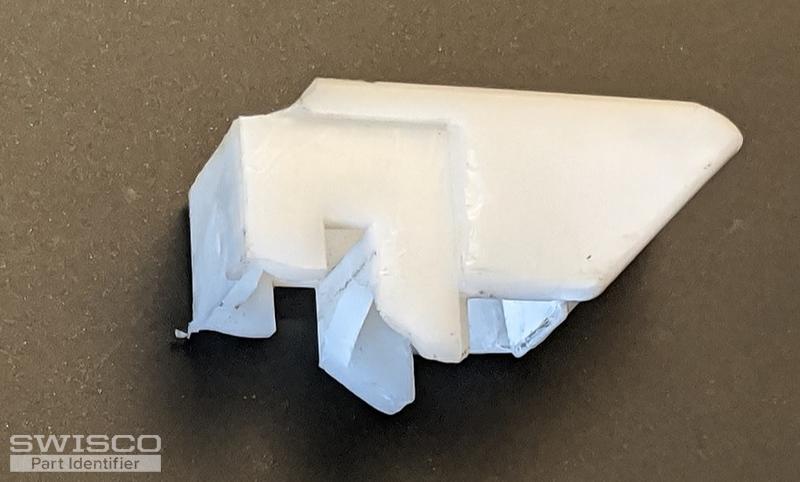

IMG_20200325_173118.jpg: This is what remains of the top sash guide. It appears to be broken at the top (near side in the photo). Shown installed in IMG_20200325_174756.jpg

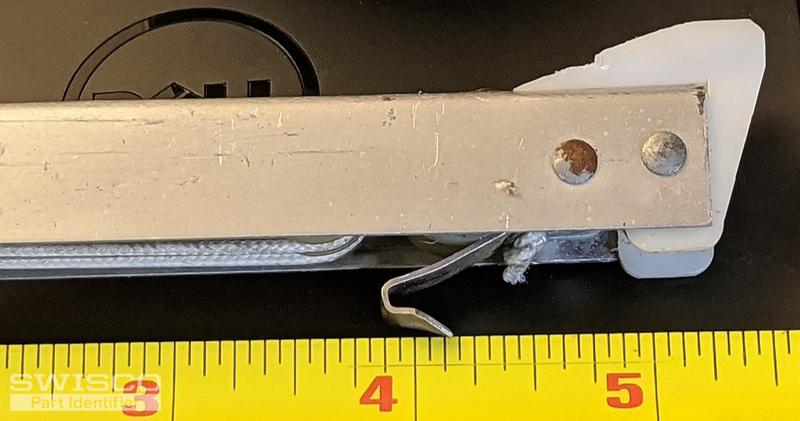

IMG_20200325_173235: This is the bottom of the channel balance. It measures 29 1/4" and is stamped 2930 B.S.I. (see IMG_20200325_173503)

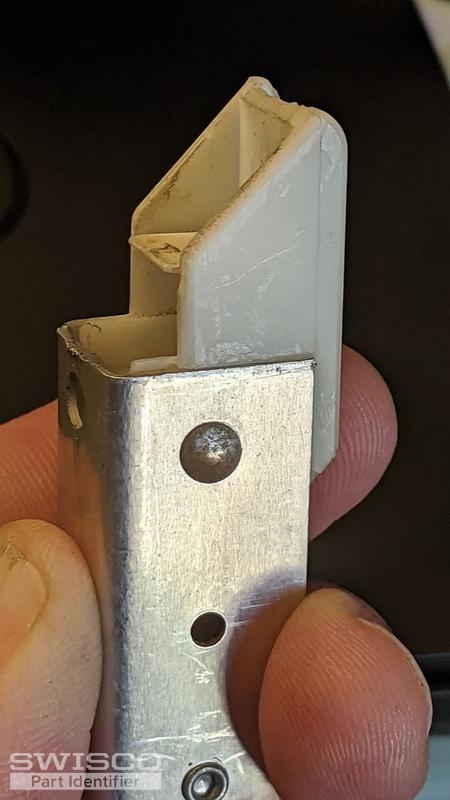

IMG_20200325_173320: Top of the channel balance - holding the broken top guide in place.

I will have many of these to fix once I (we) identify the correct series. Please let me know if there is additional information or pictures I can provide.

Thanks,

Chris

5 user uploaded images

13 Replies

Bob from SWISCO

Mar 26, 2020 8:04 am

Hey Chris. This balance looks like either our Series 351 or Series 390. The only difference between these two balances is the depth, or 'heel-to-toe' measurement, of the bottom nylon shoe, so compare both with your old hardware to see what matches best. Please double-check the length of the metal channel; do not include the nylon fittings in this measurement. A length ending in an X-1/4" increment would be pretty unusual for these balances, so we want to be sure.

For your Top Sash Guide, see our 18-066. Look it over and see what you think.

Home Owner from Quarantine in Snellville, GA

Mar 28, 2020 1:56 pm

Thanks Bob! I found an intact window top sash guide and the 18-066 looks exactly right.

The heel to toe measurement on a bottom of the channel balance shoe is 1", suggesting the Series 351 is the right model.

I can confirm with multiple windows, including some that appear never to have been removed from the sash, that the length of the aluminum portion of the channel balance is really 29 1/4". Weird, right? The stamp on all of the channel balances I examined is "2930", and all have the same length.

With this in mind, if the channel balance isn't really broken, just creaky with broken top guides, it seems better just to replace the top guides and lubricate the parts for better operation - than to risk replacing with an incorrectly sized channel balance. Reasonable? If there is a video that you can point me to with how to replace the top guides on channel balances, I would appreciate it.

Thanks again for all of your help!

Chris

Bob from SWISCO

Mar 30, 2020 12:40 pm

Hey Chris. If the balances seem otherwise undamaged, this would be best. Not only would our even length balances not work, I am afraid we do not carry X-1/4" length balances of any sort. If the balances are not damaged, a silicone-based spray to lubricate the track as well as replacing the top sash guides should do the job. For details on how to remove and replace top sash guides, see the video below.

Bob from SWISCO

Mar 30, 2020 2:27 pm

Glad we could help Chris! Let us know if you need anything else, and many thanks for your business. We really do appreciate it.

Home Owner from Quarantine in Snellville, GA

Mar 30, 2020 2:57 pm

Thanks again for your help Bob: I will put the top sash guides on order now and follow the video for guidance.

Several of my channel balances have damaged plastic top guides, and it looks like there is a riveted brad that hold it in place. Do you have instructions for replacing this part of the channel balance - I will put some of this part on order as well.

Thanks again for all of your help,

Chris Kohanek

Home Owner from Quarantine in Snellville, GA

Mar 30, 2020 3:01 pm

Bob,

Please disregard the last request: I found the video I need and will place an order for all the parts I need now.

You guys are great with your customer service and I am glad I found you as a source for these parts.

Chris Kohanek

Home Owner from Quarantine in Snellville, GA

Apr 3, 2020 3:08 pm

Hi Bob,

Replacing the top sash guides and other broken bits and lubricating the works make these windows feel new. Thanks for all of this advice.

Last question - My wife pointed out one more window in the house of the same type only smaller that needs repair. These channel balances are trashed (cord is mangled, springs are missing or broken). It is stamped "1720" and the metal portion measures 17.25 inches as feared. I understand that you don't carry the x.25" sizes - what is the best way to repair? Order the 18" 1720 channel balance and modify it to cut it down to the right length and replacing the top of the channel balance? Let me know what you think.

Thanks again for all of your help on this repair.

Chris

Bob from SWISCO

Apr 6, 2020 9:53 am

Hey Chris. Glad the windows are working smoothly again. As far as this other window, such an adaptation is theoretically possible, but it's really not something we can recommend doing. I am honestly not optimistic that it would work right. For such a project you would definitely want a local professional to attempt it; it could be pretty difficult and I wouldn't try doing it myself, personally. Hope this helps.

Home Owner from Quarantine in Snellville, GA

Apr 6, 2020 11:02 am

I appreciate the advice Bob as always!

Chris

Bob from SWISCO

Apr 6, 2020 11:46 am

My pleasure Chris. Let us know if you need anything else!

Handy Person from Oklahoma City

Sep 7, 2023 3:17 pm

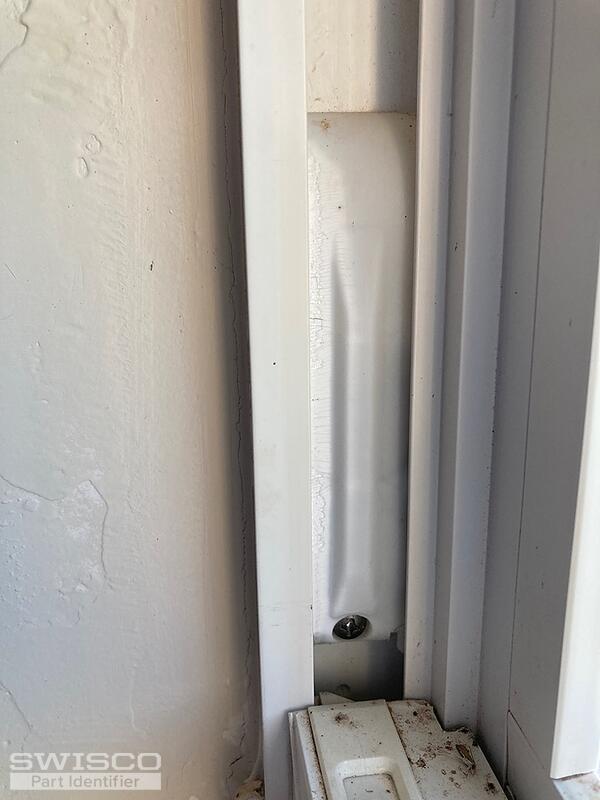

I need to identify this part

2 user uploaded images

Tom from SWISCO

Sep 11, 2023 2:02 pm

This looks very similar in design to our 15-204 coil balance cover, which is designed to retain coil springs like our Series 165 in the frame of the window. Look it over and see what you think!

Note that these coil balance assemblies are not sold as a unit; each component is sold separately. If you did need the other components, we'll need clear photos of each one so that we can match them up in our inventory.
