Please identify if you have these metal bifold parts

A contractor from Ilinois says:
Building is built maybe in late 1960? I want to replace all pivot parts at top and bottom.
Thumbnail of the uploaded file named IMG_20200910_112256571.jpg
Thumbnail of the uploaded file named IMG_20200910_112705476.jpg
Thumbnail of the uploaded file named IMG_20200910_112105005.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we'll need to see your pivots removed from the door to compare to our selection. Look over our guide here that explains what information we'll need to research this for you. Thank you!

A contractor from Ilinois says:
Hope this is what you need.

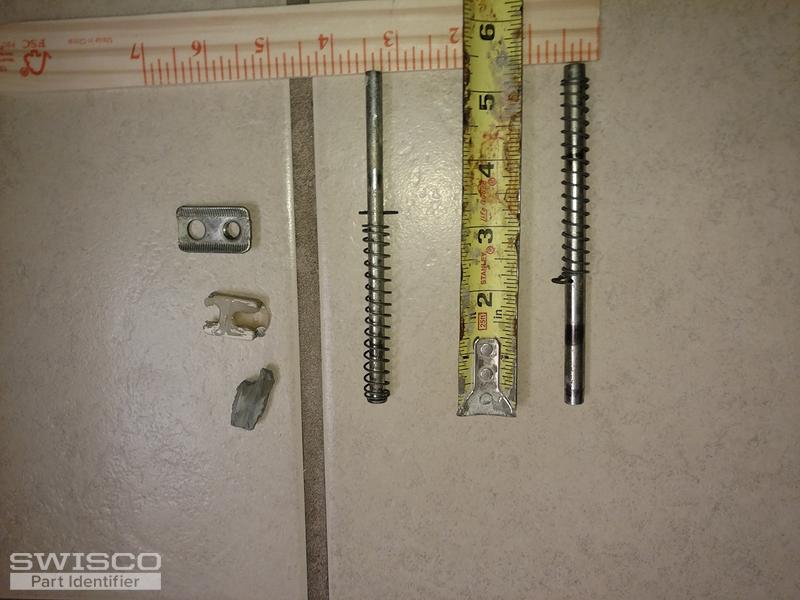

Thumbnail of the uploaded file named IMG_20200925_110627927.jpg

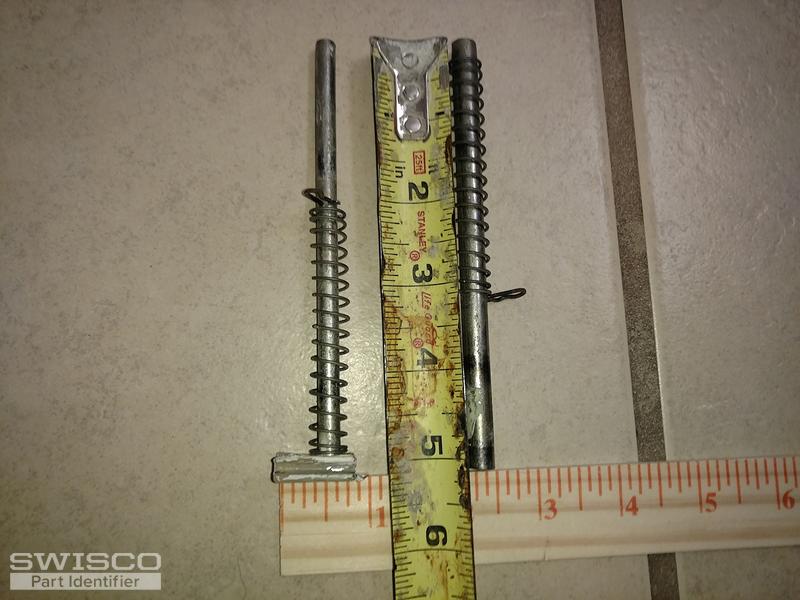

Thumbnail of the uploaded file named IMG_20200925_105726683.jpg

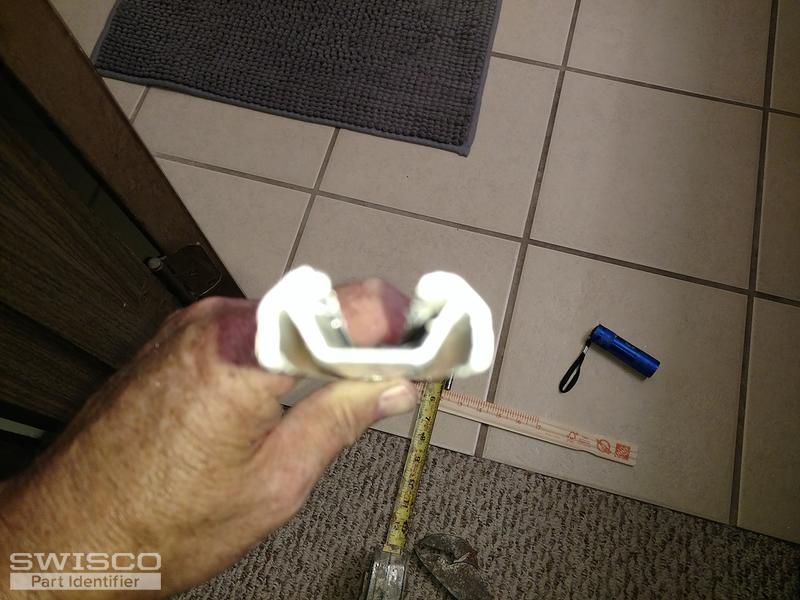

Thumbnail of the uploaded file named IMG_20200925_105737516.jpg
Profile picture of Paul
Paul from SWISCO responded:

It looks like you have a Leigh door that isn't made anymore. We do carry some of the parts, such as the 21-048 bottom adjusting pin, 21-049 guide pin without the spring and 21-050 with the spring.

Unfortunately, the track is no longer available but we do have a 21-205 pivot bracket. If your pins are fine and you just need new accessories, we also pulled them up for you to compare. Thanks for posting!
