Please see the attached pictures to quote

Professional from RI
May 4, 2023 4:14 pm
coil balance & pivot bar parts

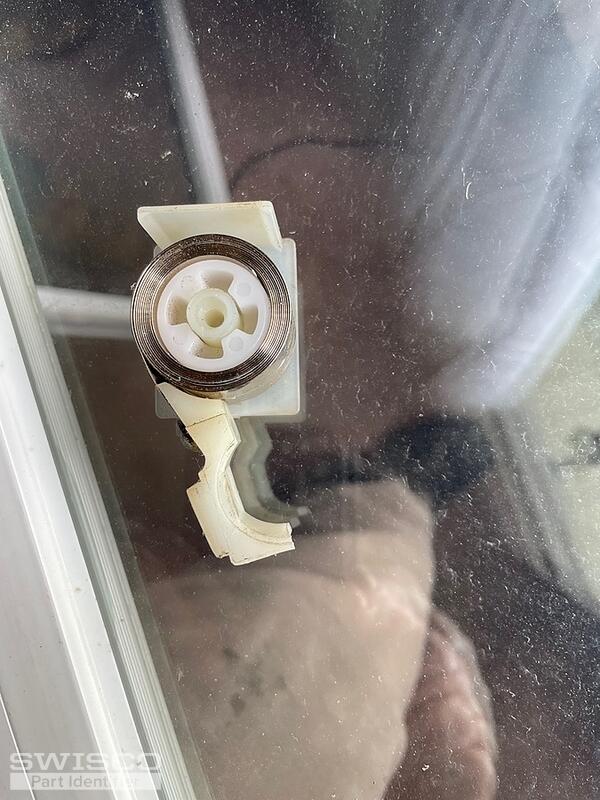

IMG_1538 IMG_1536 IMG_1537 IMG_1539
4 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
May 5, 2023 9:06 am
SWISCO
EXPERT

Hello there!

It looks like you have a Simonton brand window. With that in mind, my recommendation would be the 15-259 that uses the S159 coil springs. The video below will detail the process.

However, I'm afraid I can't identify the tilt latch from your drawing. May we see a photo of the physical tilt latch in question?
