PlyGem 3700 / Sash Balance

Quick Learner
trying to identifer what part is required to replace the balance in the window.

the string has broken and looks like the entire mechanism needs replacement
10 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thank you for reaching out to us. We're happy to look into this, though we will need more information to ID your hardware. Can you remove an undamaged balance from the window and show us photos of the fittings on the ends of the balance? Are there any stamps on the metal channel?

Quick Learner
This is the sticker in the window. Let me know if this helps identify the part.
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

I'm sorry to say that it doesn't. We'll need to see photos of the hardware removed from the window in order to move forward.

Quick Learner
Let me know if these work. I am cautious in opening the window so I don't damage the other side.

3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you! We are familiar with this balance setup. It's an older model that has been discontinued, so our replacements won’t be identical to what you currently have. We can provide a "skinny" ribbed version of our Series 795. This replacement balance comes with a T-lock shoe by default, but you won’t be able to use it as is. You will need to remove it and figure out how to reinstall the metal clip that attaches to your pivot shoe for our replacement to work properly. I can’t determine if your old metal clip is damaged, so please check its condition. We cannot provide a replacement clip, so your original clip must be in good shape to ensure it can be reused with the new balances.

In the meantime, we'll need a few additional pieces of information. Can you confirm the stamp printed on the metal channel, as well as the length of the metal channel? How does the balance install at the top of the window track, with a hook or screw? How many balances are you looking to order?

Quick Learner
The length of the metal piece is 32".

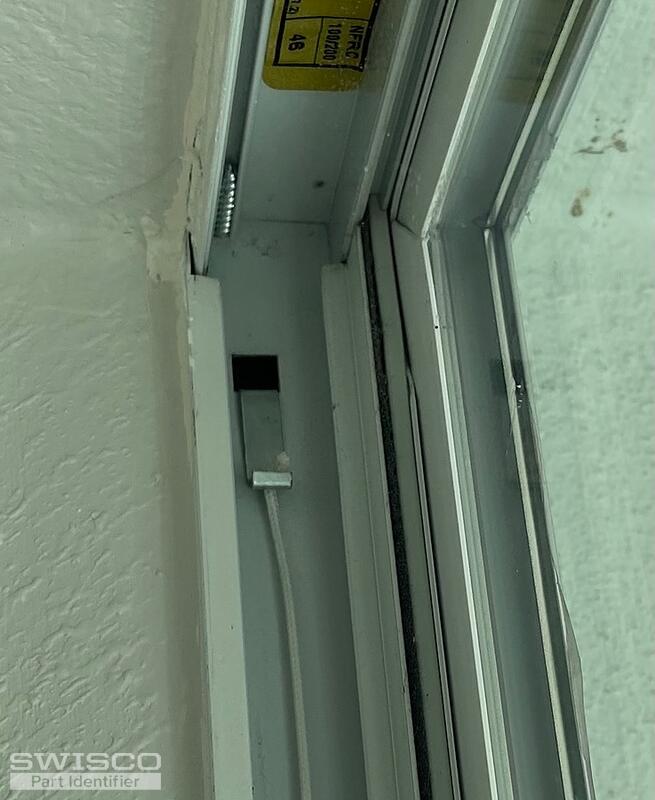

it is attached via a clip - (picture)

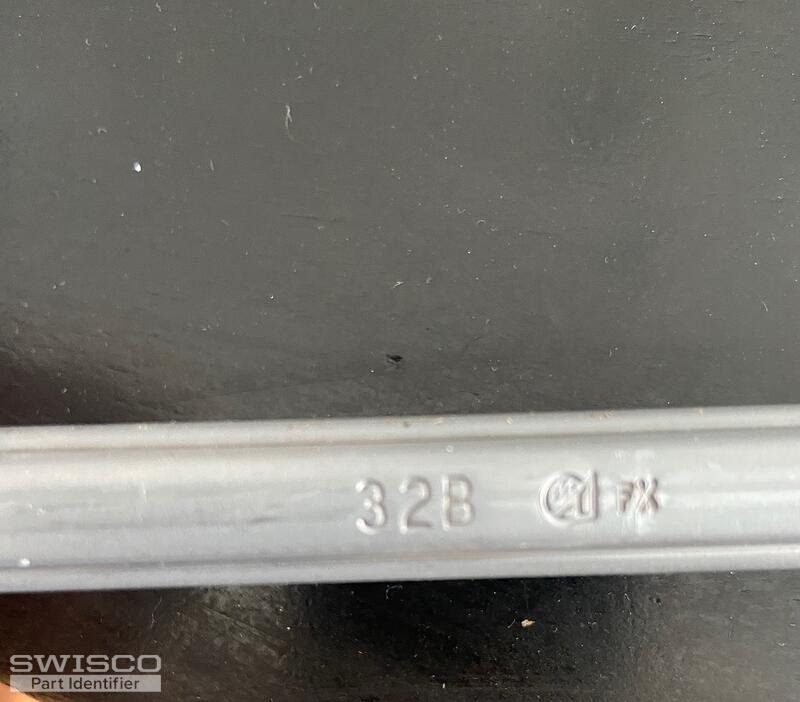

The metal rod has a 32B stamped on it (picture)

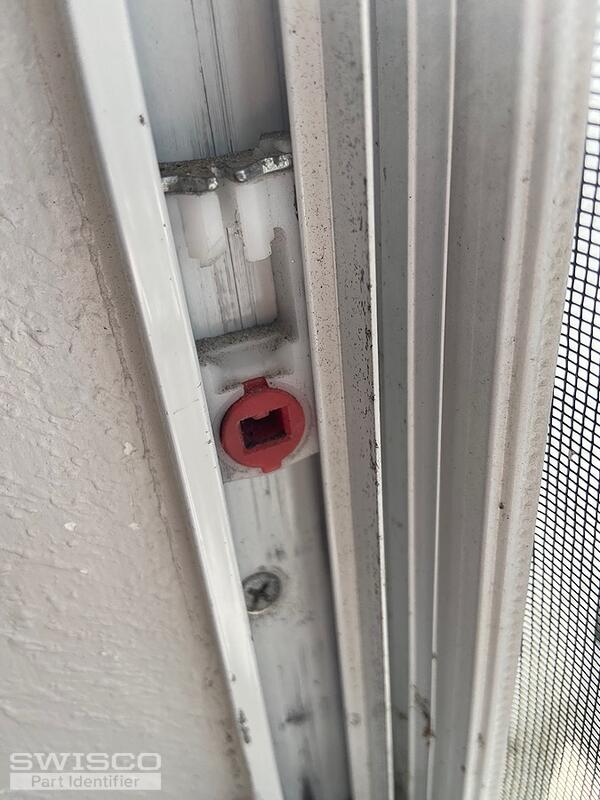

i believe the clip is good condition. Not sure? (Picture)
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

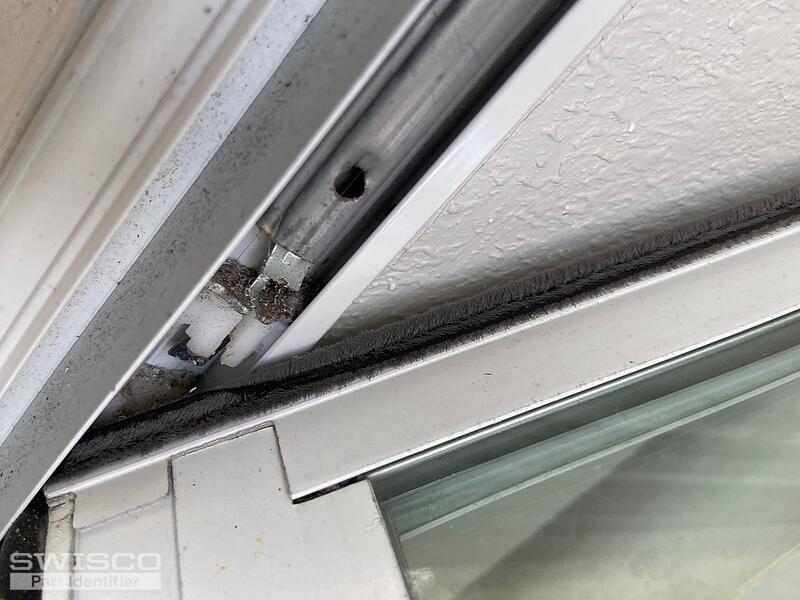

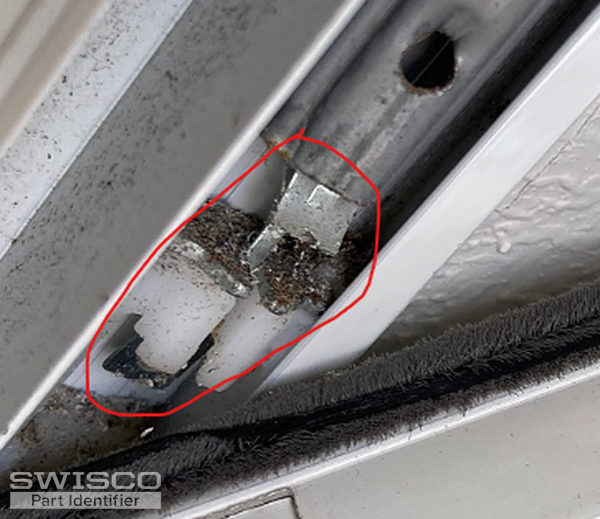

The metal clip we're referring to is different than the one shown in your first photo here. Please see the image below. This is the clip that must be reused, otherwise our balances will be useless. We can't tell if it's damaged or in good condition so we strongly recommend you remove it to confirm.

clip
Quick Learner
That clip is broken
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for confirming. Unfortunately, this clip is obsolete so we don't have anything that can replace it. I'm afraid our balances won't work without it. I am very sorry for the inconvenience.
