Aloha,

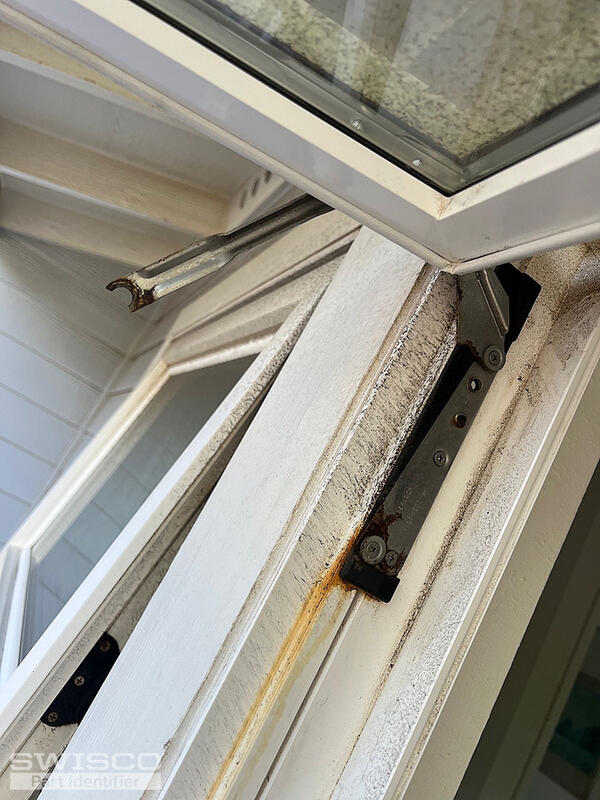

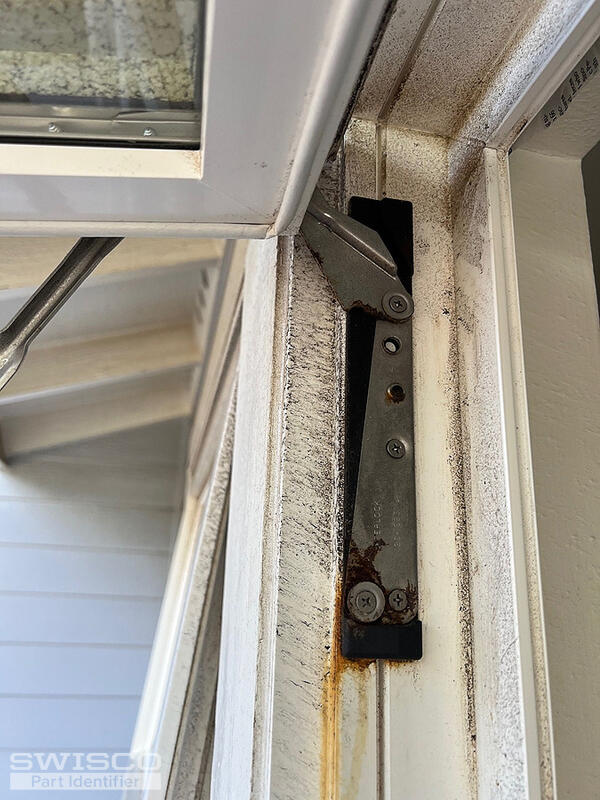

I have two PlyGem Pro 700 white vinyl windows (3020 awnings; 35-1/2 x 23-1/2; heel) that were installed in 2012 and the hardware is completely corroded. One of the parts snapped and the window vents is at risk of falling out of the frame.
Please help me in ordering all new hardware for both units. I have the original paperwork from the supplier in case you need more info.
Thank you!Evan
PlyGem Pro 700 awning window parts

Contractor from Honolulu, Hawaii
Dec 16, 2024 3:52 pm
5 user uploaded images
2 Replies

Casey from SWISCO
Dec 17, 2024 3:39 pm


Hello,
Take a look at the 39-239B operator, which uses the 39-536 pivot slide sold separately. We also carry this style in stainless steel, see the 39-239C, as well as the 39-375 handle and cover used with both assemblies.

Dimensions for 39-239B

Alternate view and dimensions for 39-239B

Alternate view and dimensions for 39-239B

Alternate image for 39-536

Alternate image for 39-558
Unfortunately, we do not carry an exact match for your hinges but the 36-048 set may work as replacements as long as you replace both sides. Take a look and see what you think.

Detail of 36-048

Additional dimensions for 36-048
