Tom from SWISCO responded:
April 21, 2022

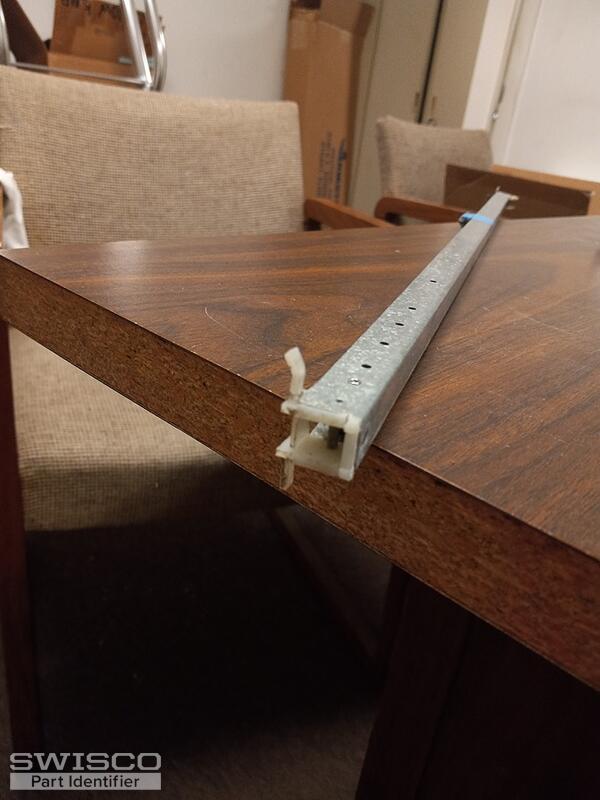

Hello! I agree with your assessment: our 19-037 top and 15-004 bottom look to match your original hardware. This will have to be custom made, though, since it's not a stock configuration. The only thing I recommend you double check is the depth of the shoe to ensure it's 1-3/32", not 1". Otherwise, all I need to know is quantity and I can email you a custom purchase link and price quote. Concerning the top sash guide, the 18-118 is often used in conjunction with the 19-037 top fitting, but that's no guarantee. ultimately you will need to remove the original top sash guide to ensure that it matches the 18-118. Ditto goes for the 16-002, though that is much more likely to be the right part. Finally, moving on to your glazing, I can't quite tell if the 55-202-6 is right. I cannot clearly make out the shape of your end profile and I do not know its size. Look over the diagram below to see how well it compares. Dimensions for 55-202-6
|
Tom from SWISCO responded:
April 22, 2022

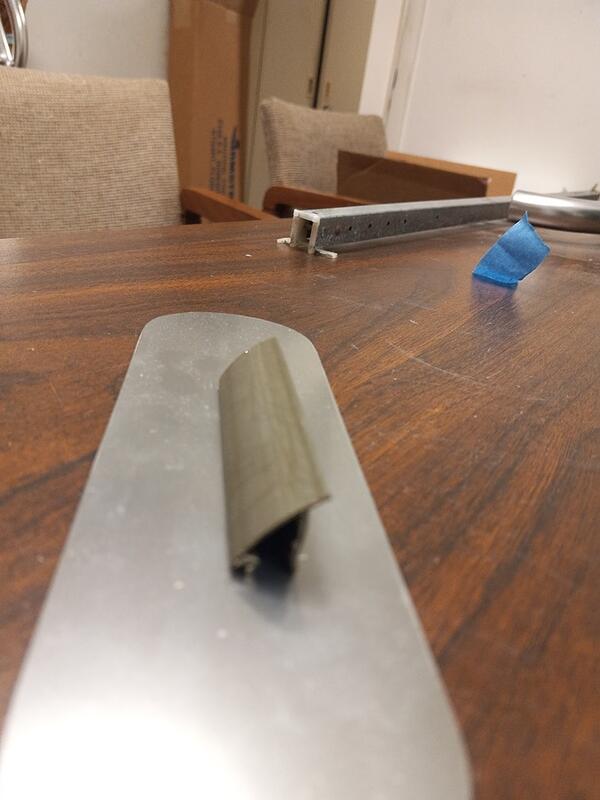

if your top sash guide is aluminum, then there's a good chance that the 18-118 isn't what you want. I really recommend showing us a photo of the original, just to be safe. We would need to see it in undamaged condition and from angles that show the front and side. Think of it like a mug shot. As for the glazing, your dimensions sound pretty different. If at all possible, I would like a clearer picture of the end profile so that I can have a better idea of its shape. In the meantime, I will email you a custom order link that will let you add 6 of these balances to your cart. |
