Probably will need both side mechanism and handles

Handy Person from Art Powell Connecticut

I believe this is a Harvey Window, I installed this quite a while ago. It is a bay window, with crank out windows on each side and a stationary center panel. Should it be anything else you require for information? Please don't hesitate to call or text or email.

 I'm not opposed to changing the style of the handle, providing it will fit in the location

3 user uploaded images
7 Replies
Handy Person from Art Powell Connecticut

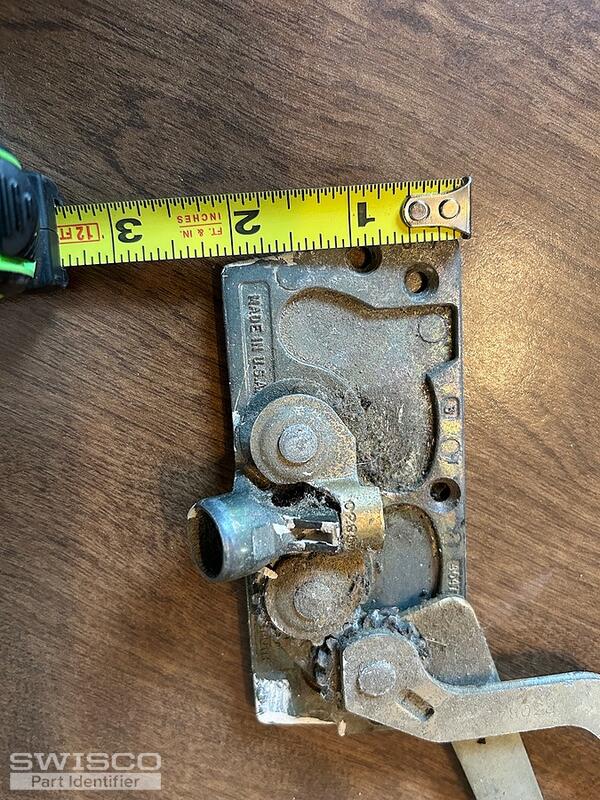

Looks like the mounting plate is five inches by two and one eighth
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Hello! This operator appears to be a good match for our 39-031 and 39-032. Just make sure to check the size of the link arm, as that is usually the component that has the most variation. As long as yours is the same size then I am very confident that these parts will work for you.

Both operators should be fully compatible with your old covers and handles.

Dimensions for 39-032
Dimensions for 39-032

Handy Person from Art Powell Connecticut

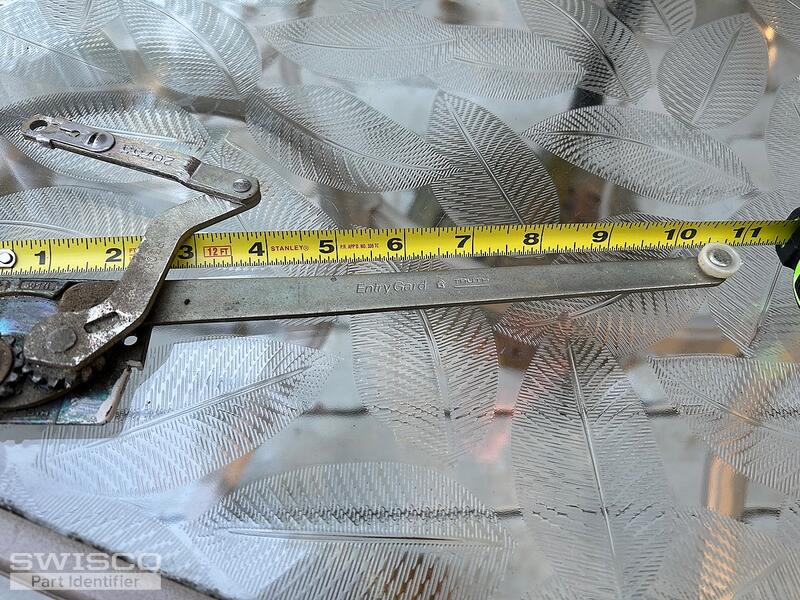

The length of the larger arm is correct

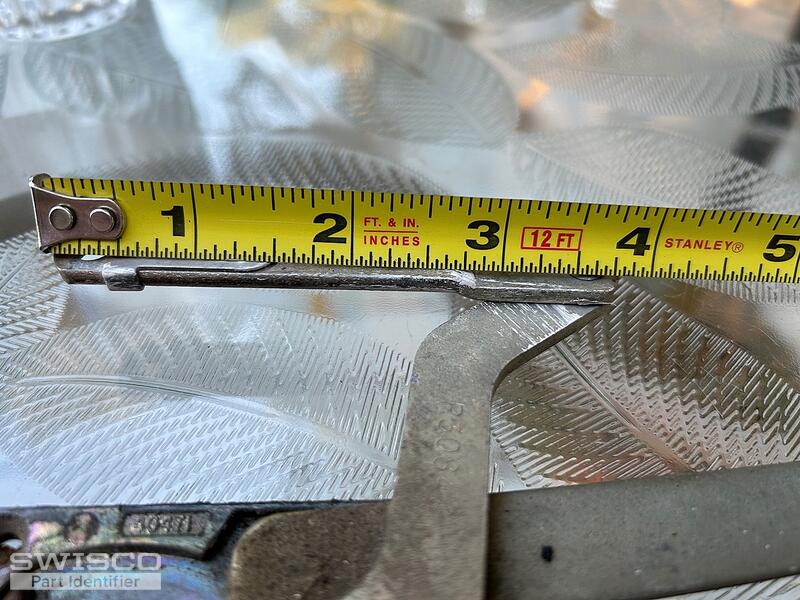

The length of the smaller arm is 3 3/4 "
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Aha, I'm glad you checked that, then. How about our 39-155 and 39-156? This is the same style but with a shorter link arm. You can refer to the diagram below.

Dimensions for 39-156
Dimensions for 39-156

Handy Person from Art Powell Connecticut
Thank you can you also give me the numbers for the crank handles and the cover that will go with those new numbers. 39-156 and 39-155 Thank you
Tom
Tom from SWISCO
SWISCO
Expert

Sure! That would be our 39-107 cover and 39-114L handle. These are compatible with both sides.
