Product ID

Quick Learner

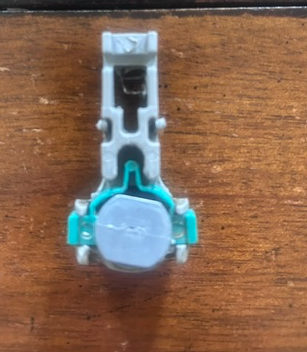

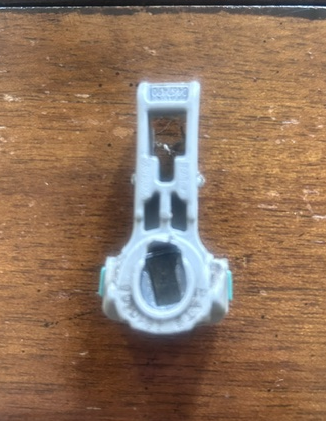

The windows that I need replacement balances and shoes for are Pella G0312997120 and G0312997148. The stamps on the balances I am looking to replace are 28C & 30C.
5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

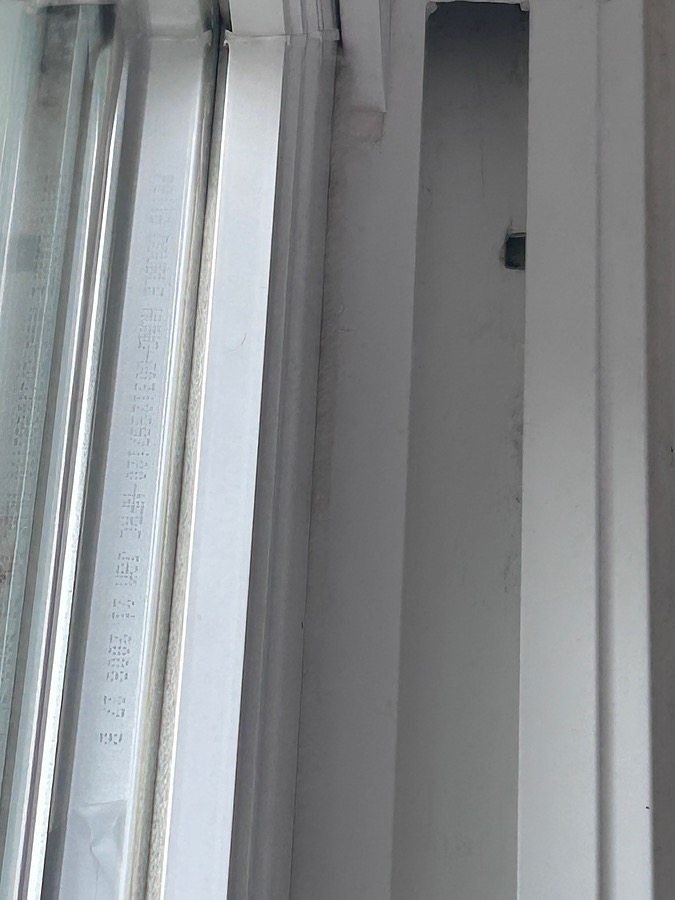

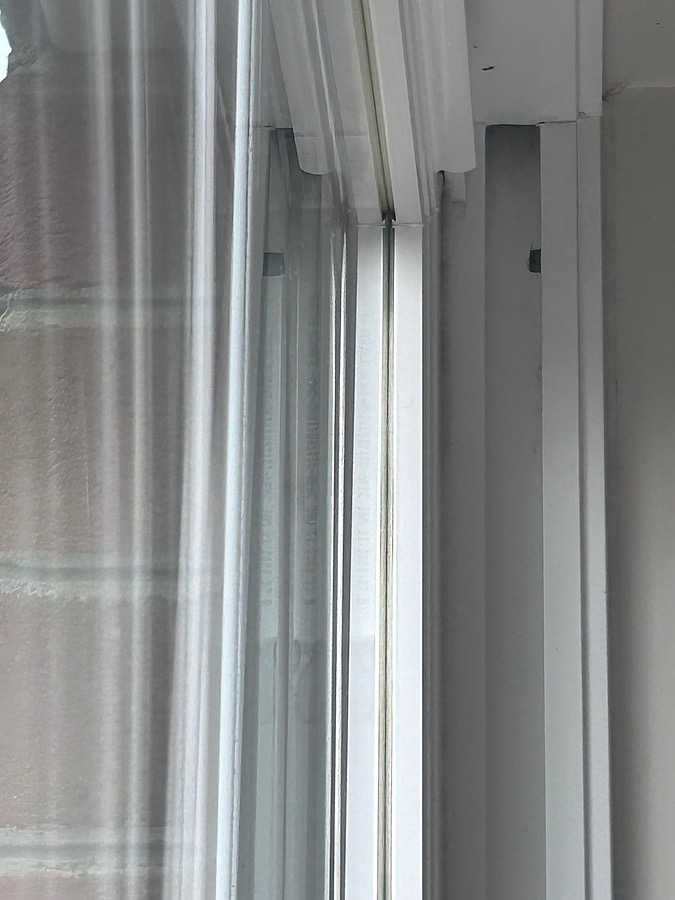

Thanks so much for contacting us. We should be able to supply this balance, but before I recommend anything I would like to see a photo of the hole in the frame where that top hook installs. That will inform our next steps for the ordering process. Thanks!

Quick Learner from York PA
Does this help?
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

That is precisely what I needed to see, thank you! I appreciate it.

So, you can use our Series 795 channel balance to replace your originals, S795-28 and S795-30, respectively. The major difference between these is that they install with a screw tab, not a hook.

The good news is that your window has a square hole for the hook, so we can avoid having to do a custom order. That should save you a few bucks. Instead see our 26-200 screw plug. These plug into the hole, and then you screw the balance directly into it. Something like the 33-016 should do, or any similarly sized screw you have on hand.

The video below will go into more detail.
