Purchased S380-29" but can't fit my window

A quick learner from Palm Coast, Florid says:

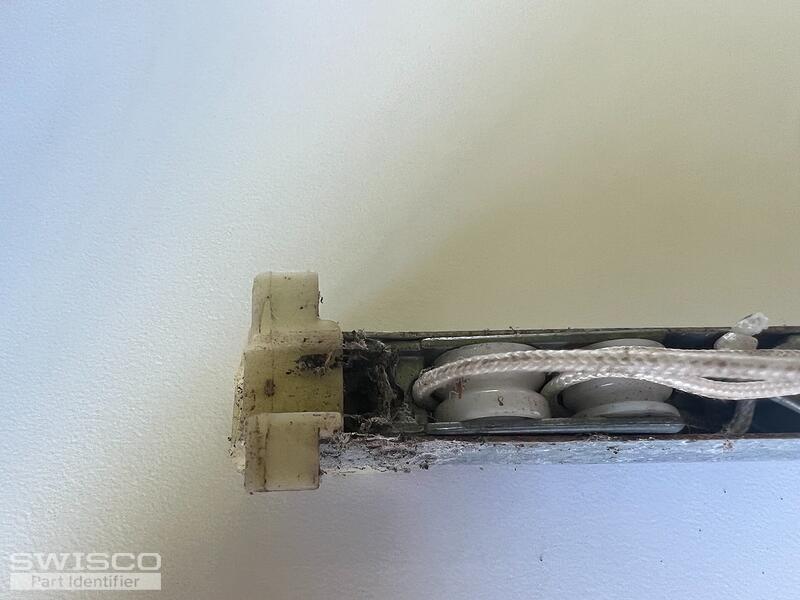

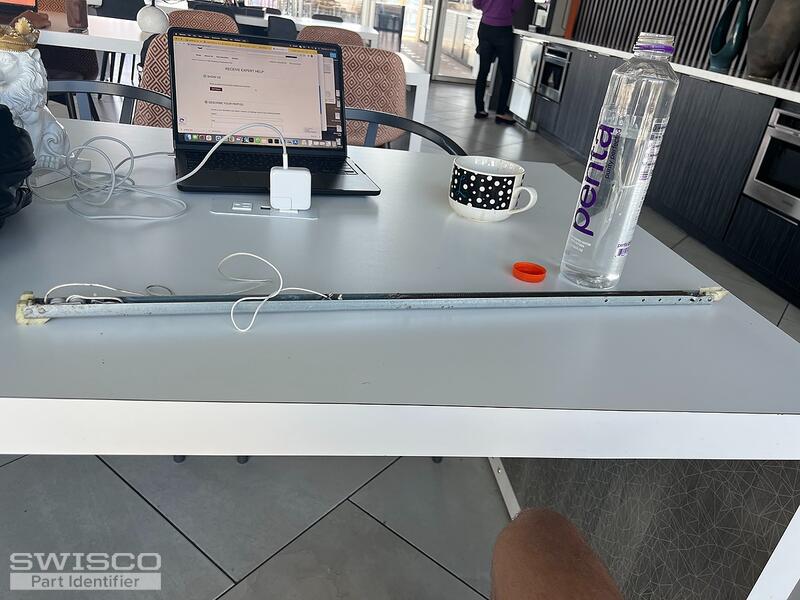

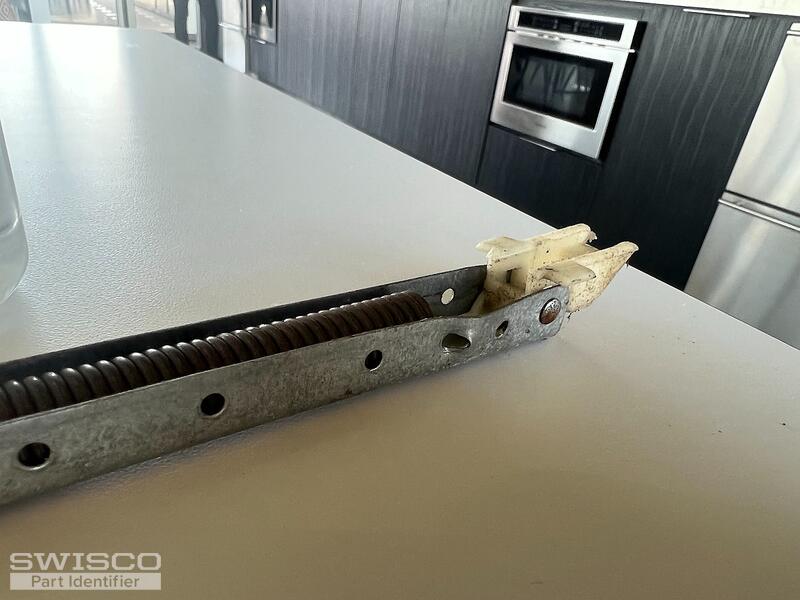

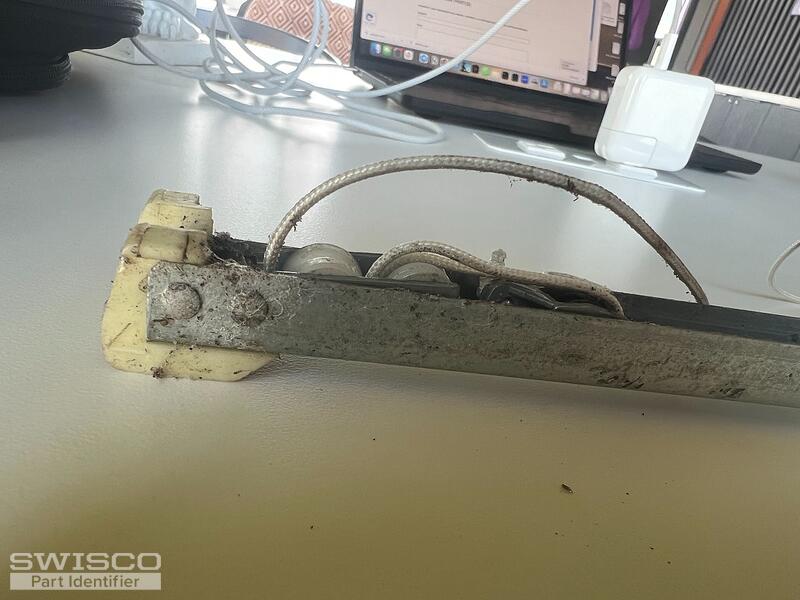

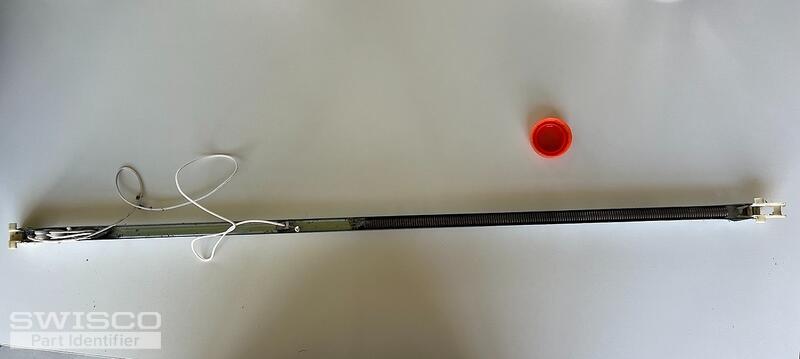

Purchased S380-29" but can't fit my window in. Upon comparing it to the original channel (see images), I noticed that the ones I purchased are at least 2 milimeters deeper. How do I go about getting the correct one?
Thumbnail of the uploaded file named IMG_1664.jpeg
Thumbnail of the uploaded file named IMG_1665.jpeg
Thumbnail of the uploaded file named IMG_1666.jpeg
Thumbnail of the uploaded file named IMG_1667.jpeg
Thumbnail of the uploaded file named IMG_1668.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we'd like to confirm if the problem is that the metal channel won't fit into the track or that the sash won't install once it's there? We just want to make sure that the balances that we recommend won't have the same issue.

Since you mentioned that the balances shoes are 2mm deeper, the odds are that you need balances with the 15-029 shoe attached. We can supply this configuration but it would need to be a custom order. To get started, take a look at the image below to confirm that the 7/8" depth matches your original fitting.

We'll also need to confirm the stamp code printed on your original balance channel. Thank you.

Dimensions for 15-029
Dimensions for 15-029

A quick learner from Palm Coast, Florid says:
The main issue is I can't fit the window in after installing the channels. It seems like the issue is the balance shoes. There's a good chance your recommendation will work. The stamp is 28F. How do I go about ordering two of them so I may test them out?
Profile picture of Casey
Casey from SWISCO responded:

Thanks for getting back to us. We just sent over an order link and price quote for the balances you've requested with the 15-029 shoe attached. Take a look and let us know if you need anything else. Thank you!
