Quick tilt coil

Home Owner from Louisville,Ky

Jul 23, 2023 1:09 pm

Our windows are manufactured by Simonton Norandex Inc.
This part broke when cleaning my windows and I'm not sure what to replace it with.
No markings found
Can send photos

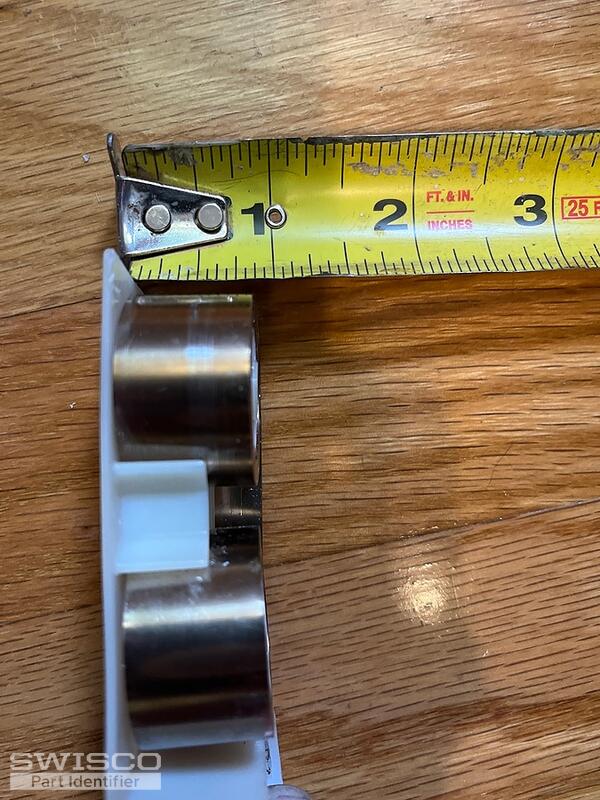

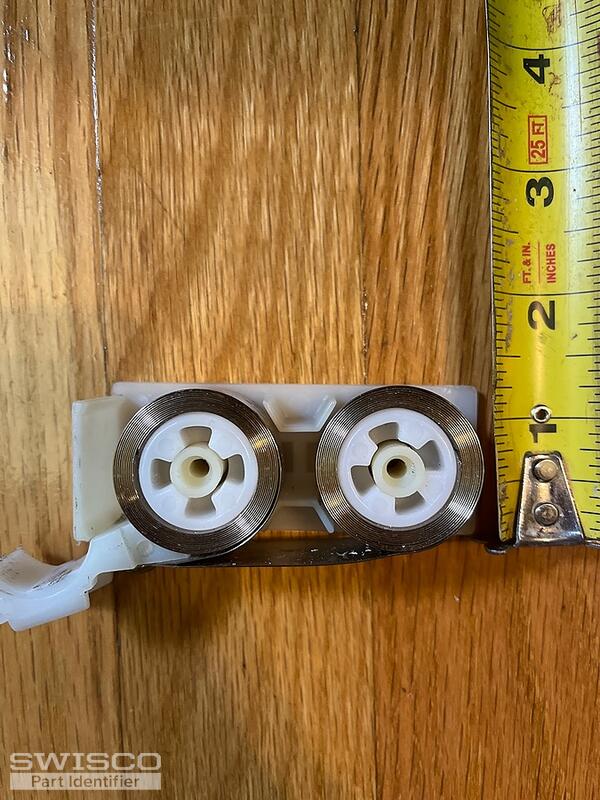

5 user uploaded images

2 Replies

Bob from SWISCO

Jul 23, 2023 2:39 pm

Hello there. This exact Simonton coil system is no longer made, but we've devised a substitute solution. See our 15-259 Pivot Shoe, which uses Series 159 Coil Balances. The video below shows how to replace your old system with this setup. Take a look and see if you think this could work for you.
