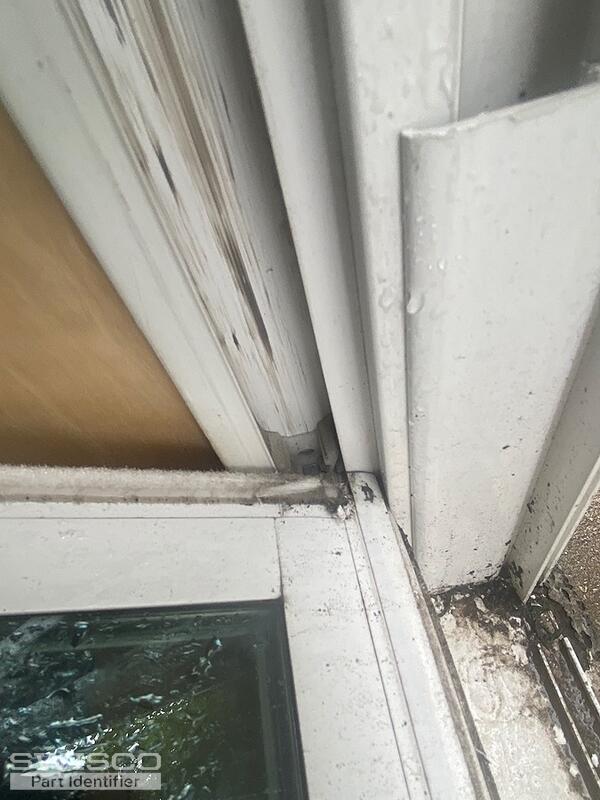

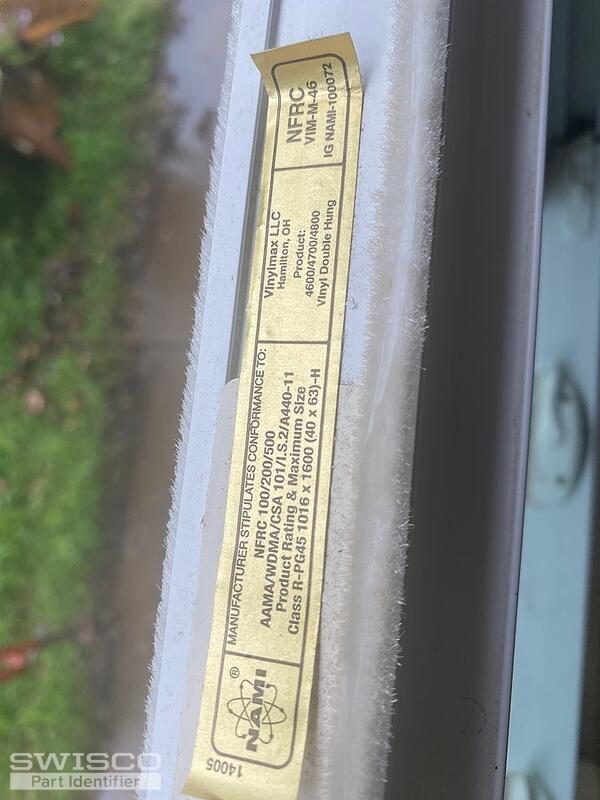

Radiance by VinlyMax Window Pivot Shoe Replacement

Thanks for your post! This exact balance assembly is no longer available but we believe the 15-177 Coil Balance Shoe should work to replace it. You'll need to remove the assembly from the window track and compare the dimensions to confirm the shoe is the right fit.

Alternate image for 15-177

The compatible coil spring is the 1/2" wide Series 152 Coil Balance. It is attached to the shoe using the 33-072 screw. To determine the correct spring for the replacements, you'll need to look for a stamp/marking on the coil. If there isn't one, please take a look at the video tutorial for detailed instructions.

For the coil cover/support, you'll need the 15-143 Coil Bushing , 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel.
