Removed balances

A handy person from Sunset beach, NC says:
October 13, 2019

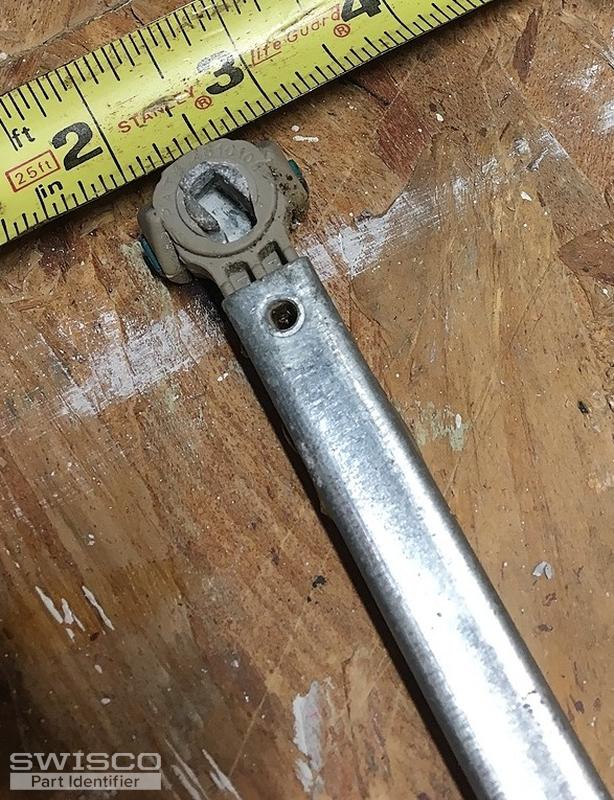

I need 2 balances (left and right sides) to replaced damaged ones in the photos.

Fyi... the metal track portion is 34" long and the spring is 20" long.

Thumbnail of the uploaded file named EF352390-15B3-4330-91A6-E4D4ED455FD6.jpeg
Thumbnail of the uploaded file named 4EC1B8C1-9118-4786-BC4D-D7759189B4E0.jpeg
Thumbnail of the uploaded file named 34C
Thumbnail of the uploaded file named 2D425D04-0957-4415-9CE2-9E130AADC8FB.jpeg
Profile picture of Tom
Tom from SWISCO responded:
October 17, 2019

Thanks for posting! I am confident that we can supply this balance. See our S795-34 to start out. You'll note that this comes with a 1-1/4" wide shoe, while yours looks to be the smaller 1" wide version. With that in mind, you'll also need to purchase the 15-194 separately and swap the shoes out upon receipt. They just pop on and off.
34" Series 795 Channel Balance
34" Series 795 Channel Balance
S795-34
$14.94
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
