Repair window balance

A quick learner says:
September 12, 2018
I registerd
Profile picture of Tom
Tom from SWISCO responded:
September 19, 2018

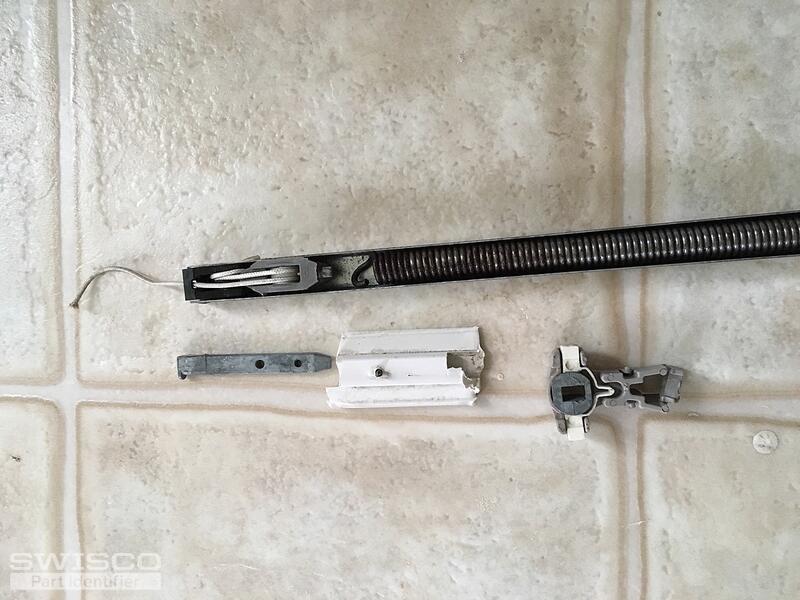

Thanks for posting. We can replace this balance, sure. It looks like our Series 795. However, this comes with a closed cam pivot shoe by default. It looks like your old pivot shoe is open, so I recommend buying our 15-195B separately. See the video below for how you can swap them out.

Also keep in mind that our Series 795 installs at the top using a screw tab. I don't know if yours uses a screw tab or a hook, as it looks like whatever it once had broke off. You may want to double check to be sure.
1-1/4" T-Lock Balance Shoe, Open Cam
1-1/4" T-Lock Balance Shoe, Open Cam
15-195B
$1.97
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
