Repco 1/2" Wide Channel Balance

Hello,

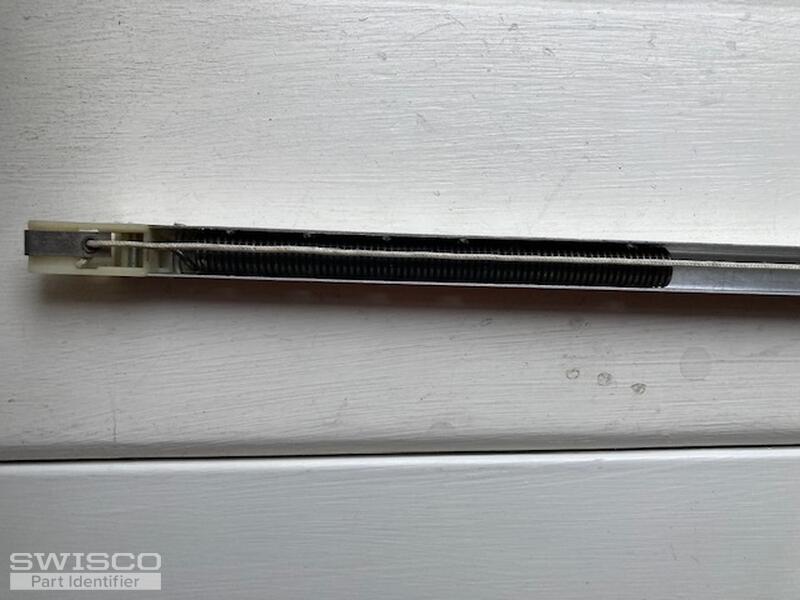

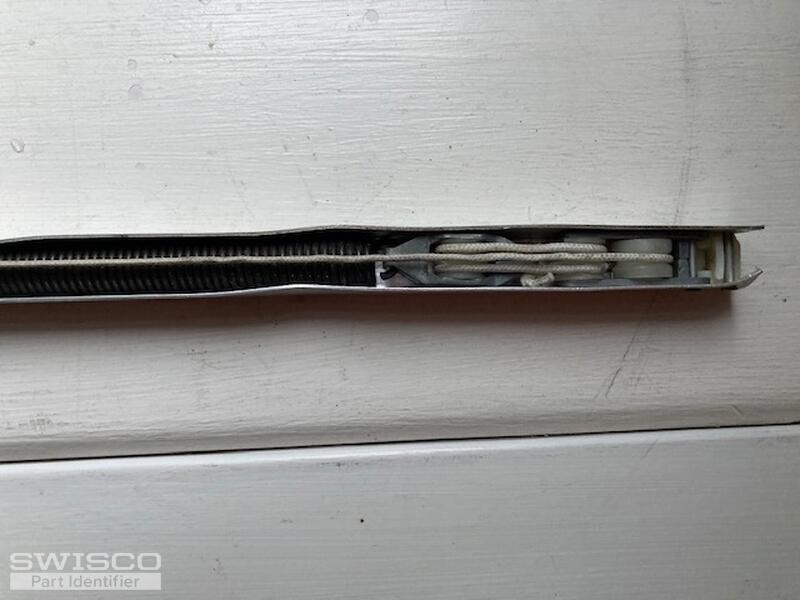

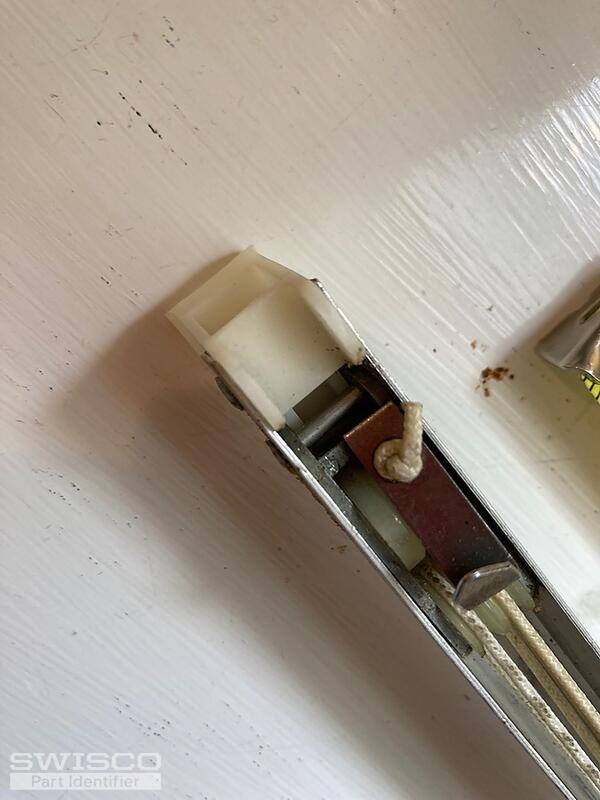

We would be happy to help but it looks like the bottom fitting is broken off of the balance shown in your photos. We would need to see the bottom fitting of an undamaged balance removed from the window to narrow down your replacement options. Thank you!

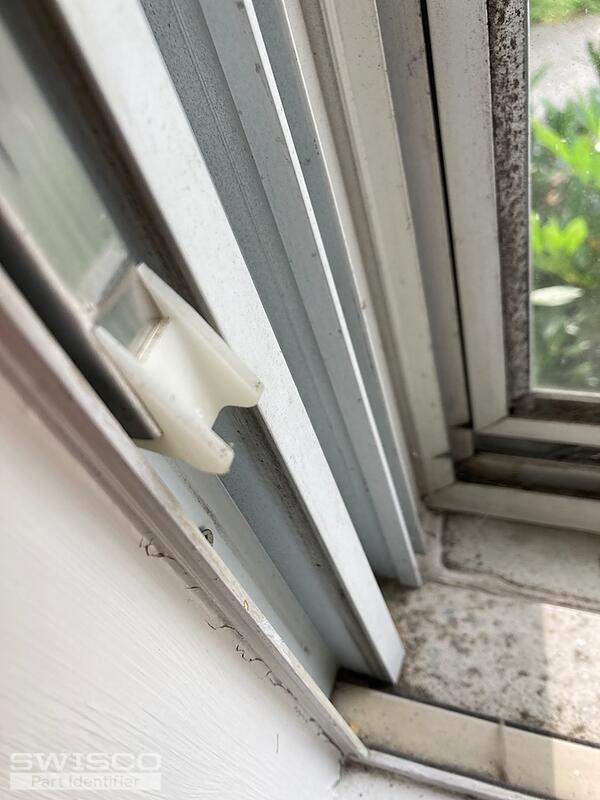

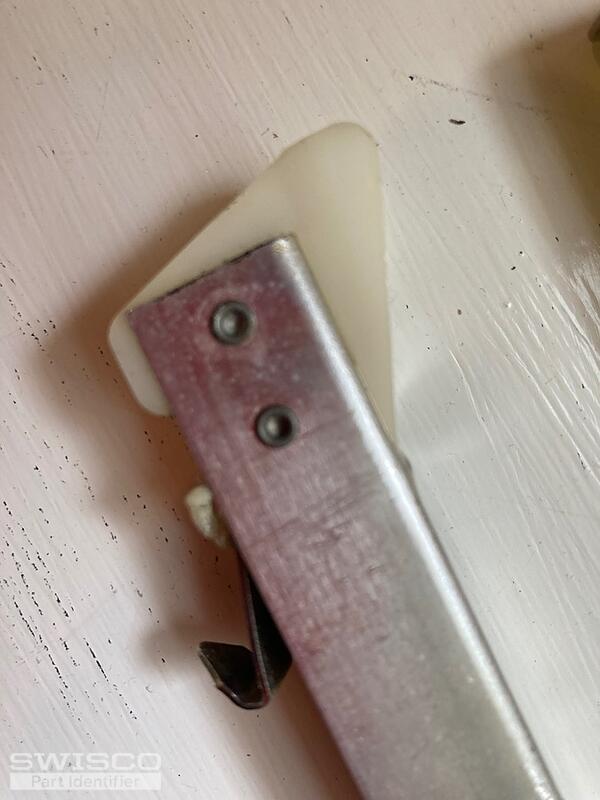

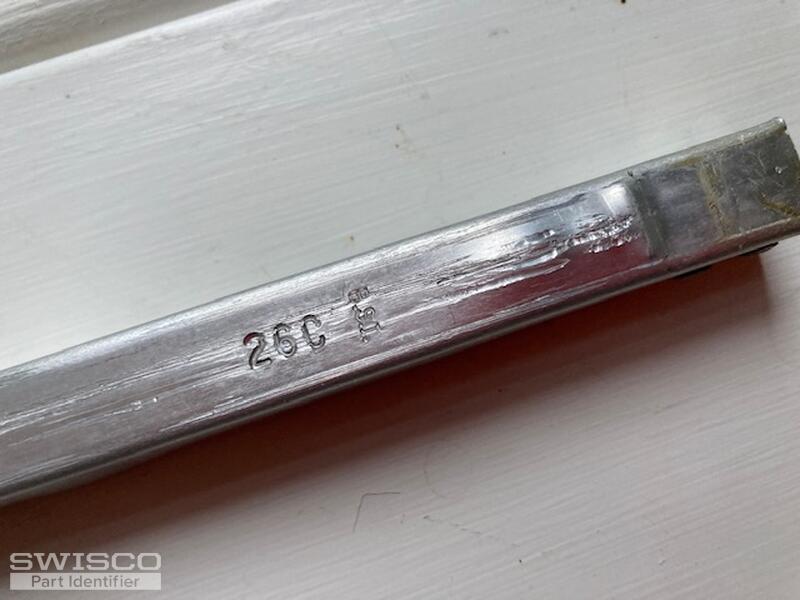

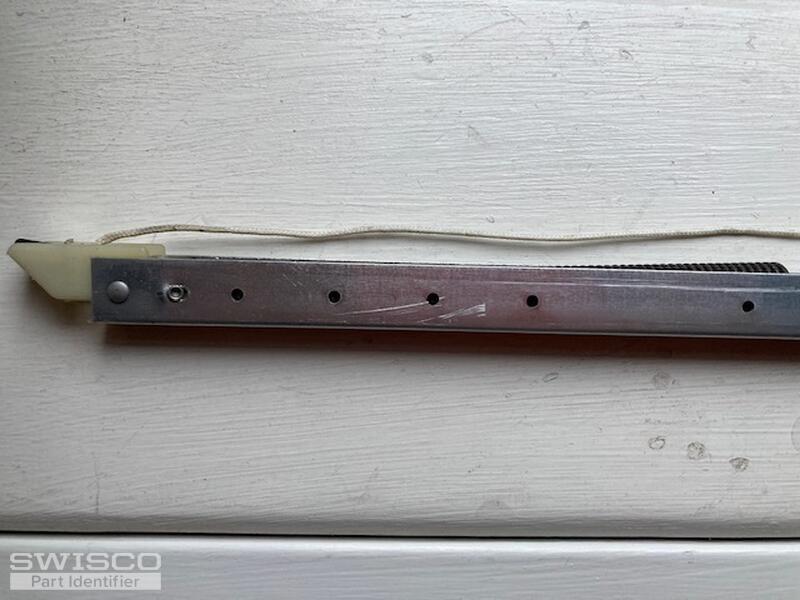

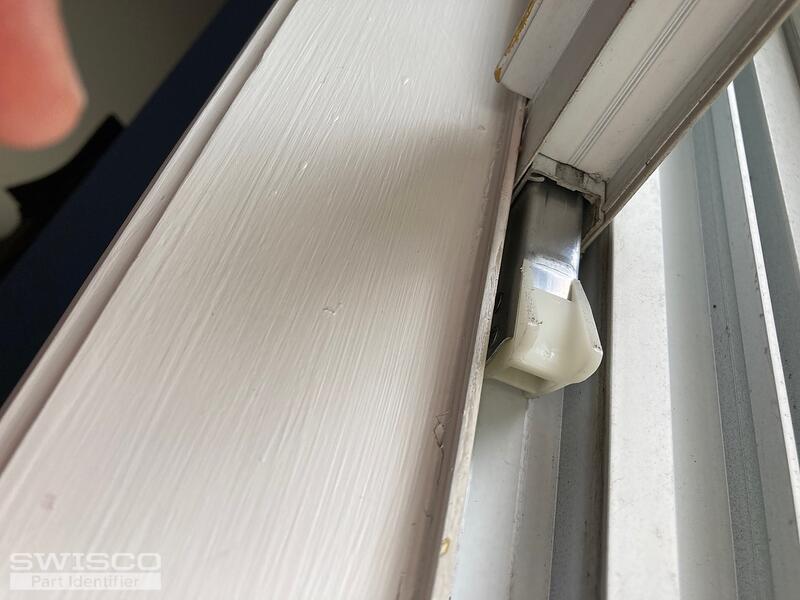

Thanks for getting back to us. It's tough to be sure with the balance still installed but it looks like your bottom fitting may be non-winged like the top. If so, you would need either the S351-27, with a 15-002 bottom attachment, or S390-27, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2630 spring strength option for your replacement balances based on the 26C stamp on your original balance. Thank you!

Comparison of the S351 and S390 balance shoes.

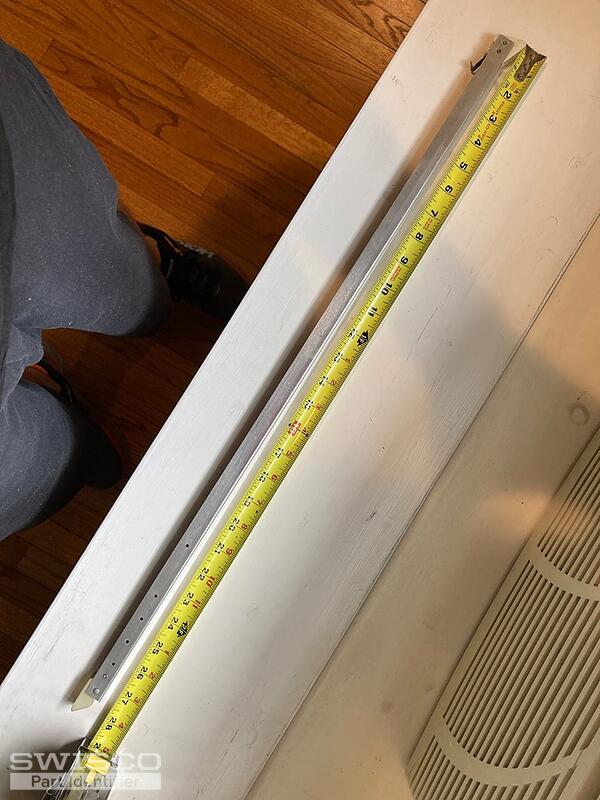

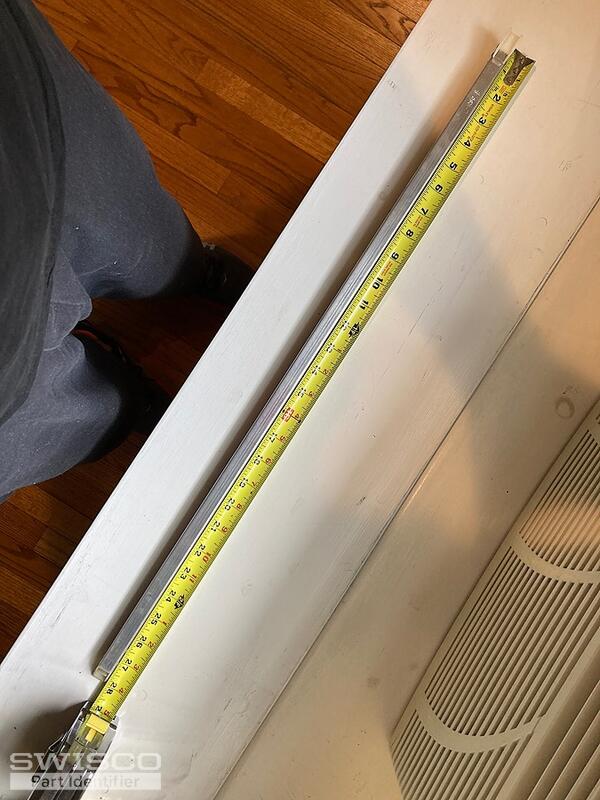

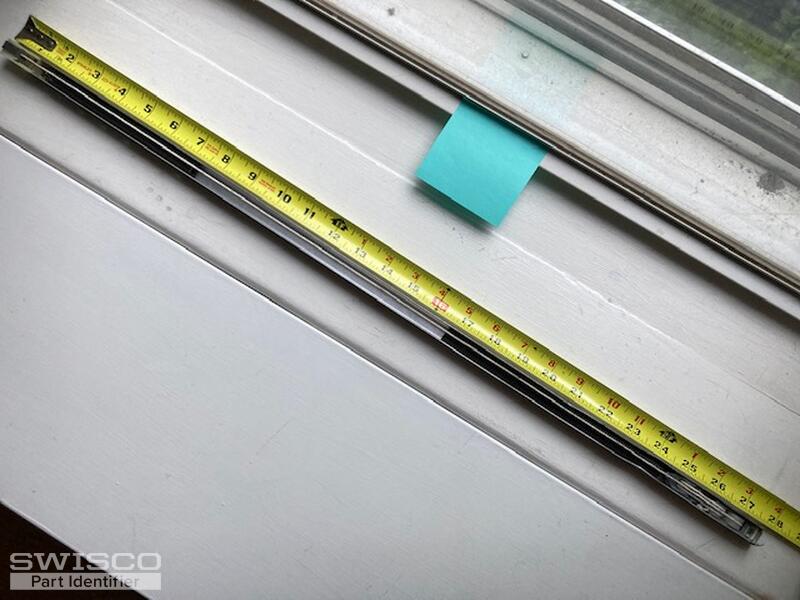

It's tough to be sure but it looks like you may have a 26-1/2" long metal channel, not including the end fittings. If so, just let us know the number of balances that you need and we can go from there.

Unfortunately, we are not able to determine the exact length of your metal channel from the photo. We will need you to confirm the exact length, not including the end fittings. to determine if we can supply suitable replacements.

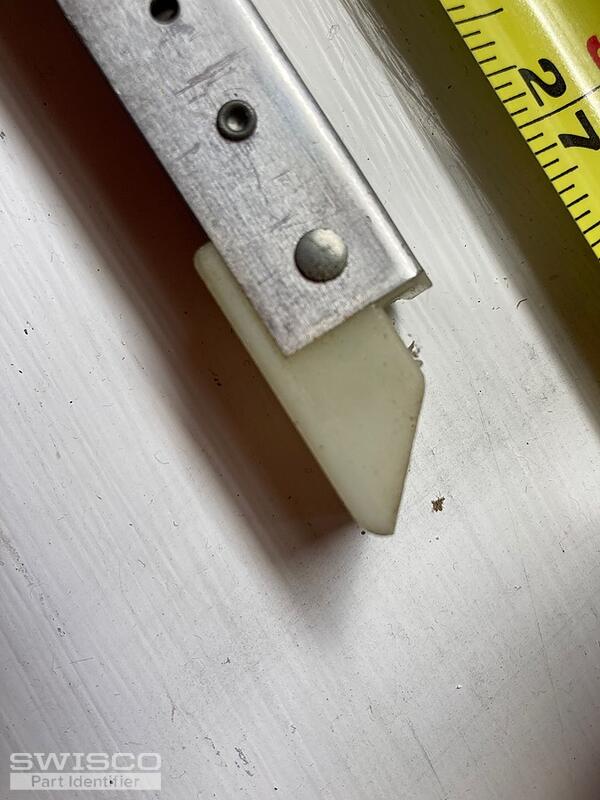

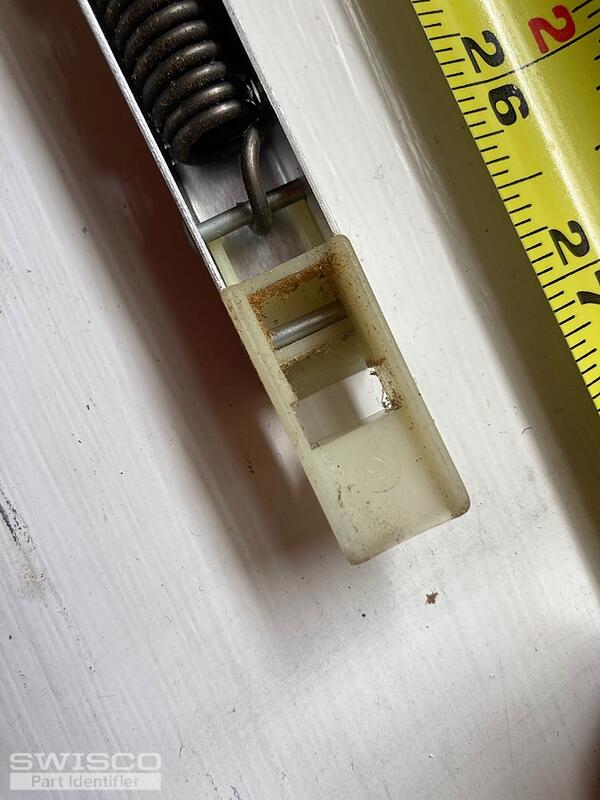

Once we know the length, the end fittings indicate that you have either the S390 or S350 as we mentioned in our previous response but you'll need to measure the depth of the shoe to determine the correct replacement.

Comparison of the S351 and S390 balance shoes.

Unfortunately, these balances are not available in 1/8" length increments or with a 5/8" deep channel. The S390-27 or S351-27 with 2630 strength options that we mentioned previously would be our best replacement options depending on the depth of your bottom fitting. If you decide to give them a try and run into any problems, our return policy can be found here.
