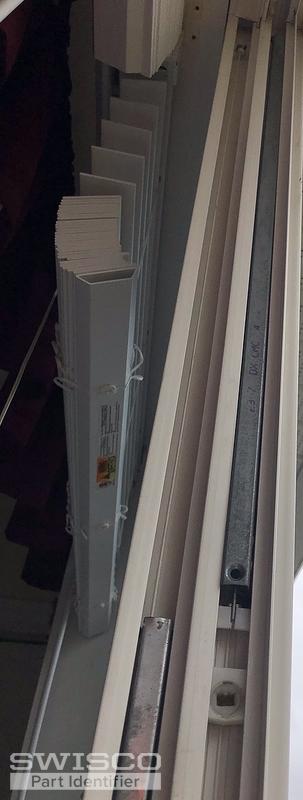

Replace Channel Balance

Question

The width of the current channel balance is 1/2 inch
The metal bar section is 26 inches long

The window is 33 1/4 inches wide by 29 1/16 in height

Window track is 27 1/2 inches

Manufacturer - PHP-07 A-L-I (trademark) Validator top label says - AAMA Certification Program
Series 820 Another sticker says 820 06149497
Type Tilt Double Hung
Current Channel Balance has printed 25 5 CX CMC 9

Weight - Not sure

Bob · Accepted Answer

Thanks for writing in. See our S765-26. Look it over to confirm this matches your old balance. You'd need a stamp option of 25-5. If you need to replace the pivot shoe this balance connects to, you'll need to remove it from the window and give us a clear picture. We'd need to know the width and thickness of the shoe as well. Let us know what you think.
