Product Code: S765-26

26" Series 765 Balance

Name: 26" Series 765 Balance
SKU: S765-26
Price: 15.05 USD
Availability: InStock

$15.05

How to measure the length of the Series 765 channel balance.

Quantity	Price
1-11	$15.05/ea
12-49	$13.55/ea
50-99	$12.79/ea
100-249	$12.04/ea
250+	$11.29/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 26" long metal channel.
Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.

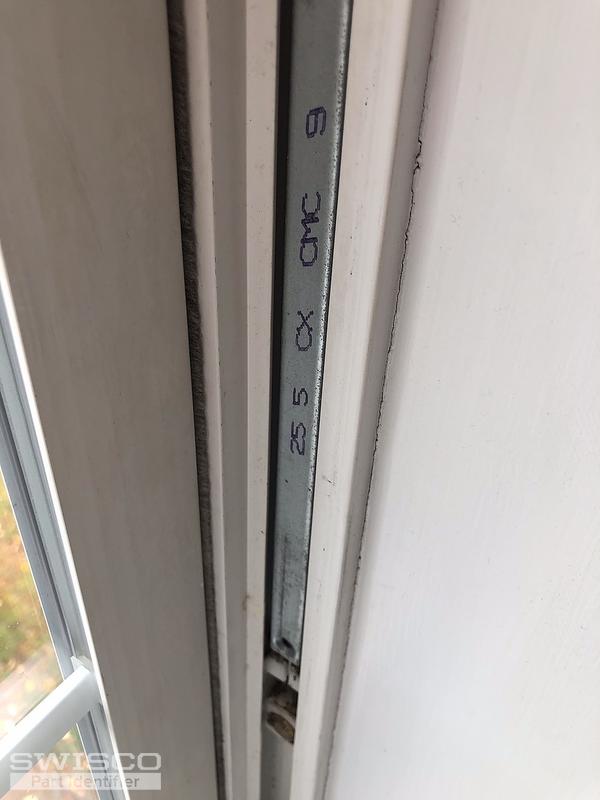

The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.
Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.

Stamp Option	Sash Weight Range
25-1	8 to 13 lbs
25-3	13 to 19 lbs
25-5	19 to 24 lbs
25-7	24 to 30 lbs
25-9	30 to 34 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

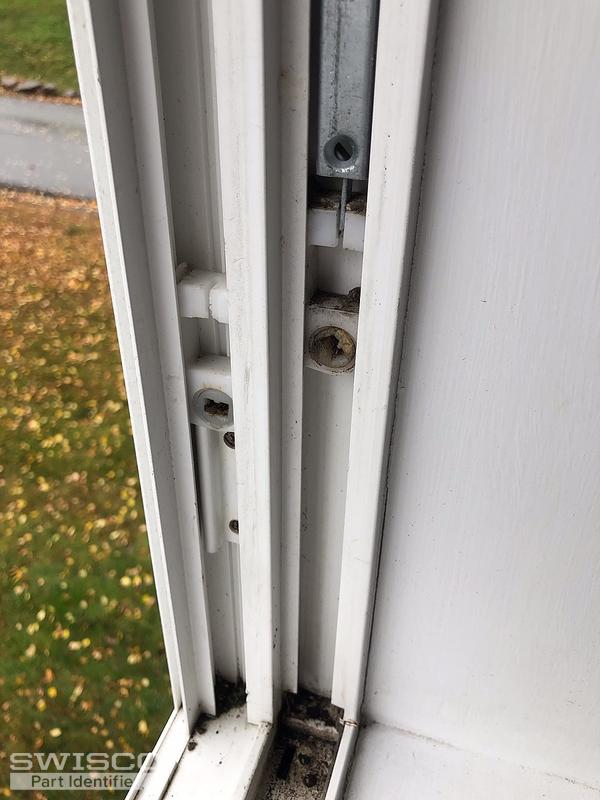

Balance screw at the top, hook at the bottom

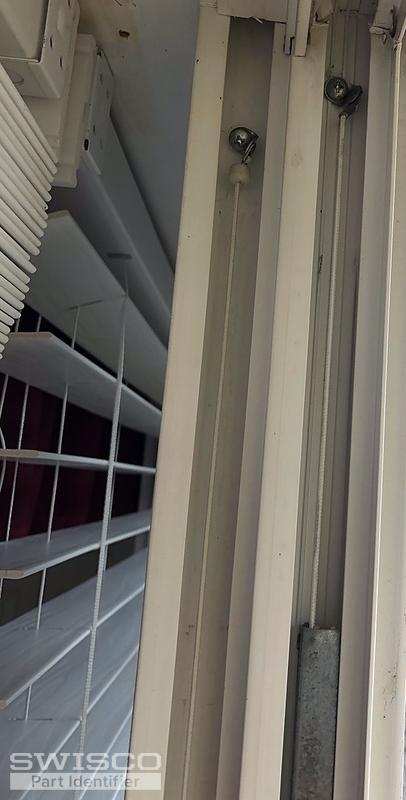

Hi Swisco: See the attached for the ends of the balancer. It is for the same type of hung windows. There are 3 in a row. Let me know what else you need. Thanks,

Channel balance for Milgard window

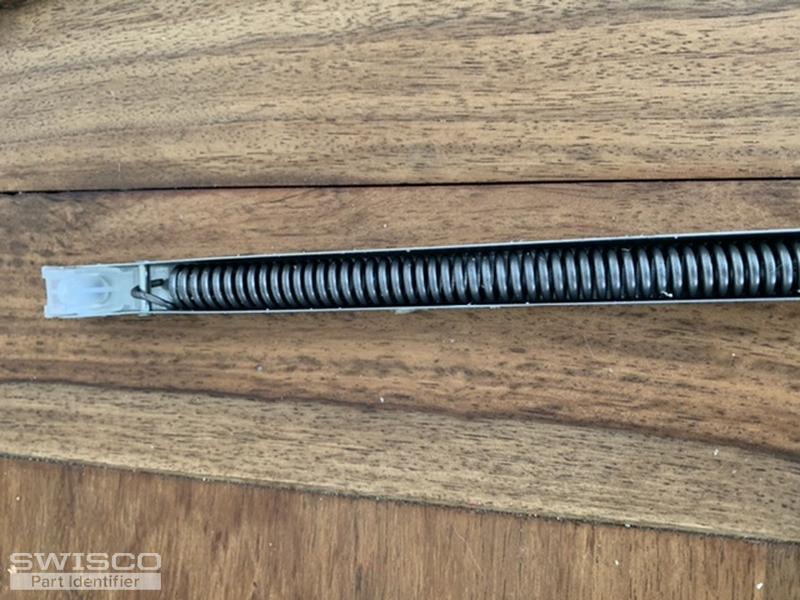

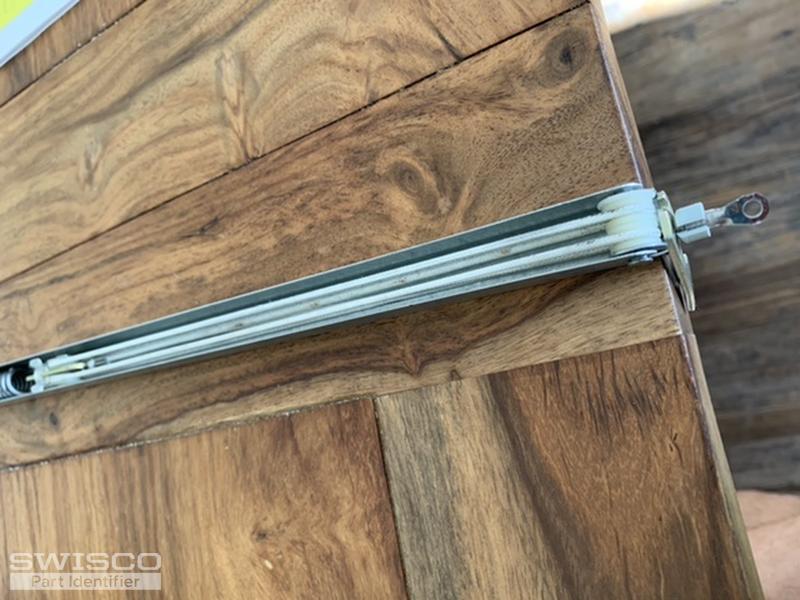

I believe these are channel balances? This is from a Milgard double hung window. It's 26" long. Need to replace two of them. The first pic is the best shot I could get of the operational side. Thanks

Replace Channel Balance

The width of the current channel balance is 1/2 inch The metal bar section is 26 inches long The window is 33 1/4 inches wide by 29 1/16 in height Window track is 27 1/2 inches Manufacturer - PHP-07 A-L-I (trademark) Validator top label says - AAMA Certification Program
