Replace crank out hardware

Question

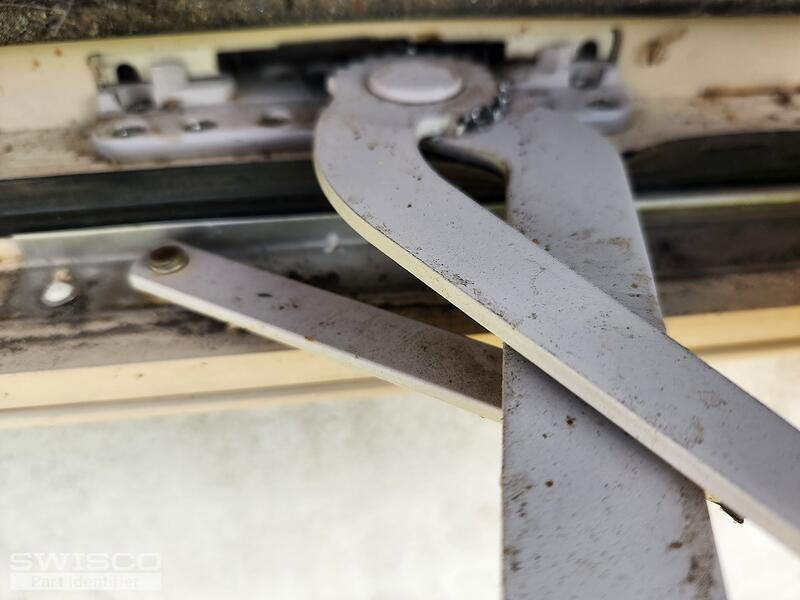

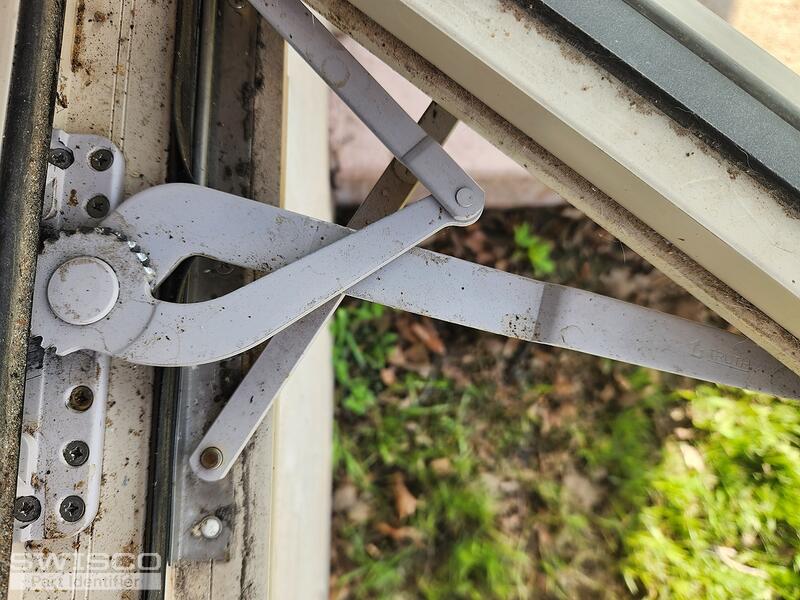

I cannot find what make of windows these are. I am hoping you will be able to tell what model they are by the hardware that needs replaced. This is a large picture window with a left and right crank out. They are both wore out and need replaced. You can see in the one picture that the sprocket portion is almost wore down to nothing.

Thanks,

Casey

Jasmine · Accepted Answer

Hi Casey,

Thanks for writing in! The operators you are searching for are one of two versions of the Encore Dual Arm Operators we have. The replacement you need will be either the 39-253RB or the 39-439B.

To determine which of these is the correct replacement, review the video tutorial below and take note of the differences between each of these operators. The one you need will depend on the attachments used with the operator.

Once you've determined the operator you need, you'll be able to confirm the compatible hardware from the 'related items' section on their respective pages in the online catalog.
