Replace handle and cover on Amerimax Casement Window

Home Owner from 94596 Zip Code

Aug 29, 2024 5:52 pm

I want to replace the crank and cover on my Amerimax Casement windows with folding handles and covers. The item I think would work is the Encore Truth Folding Handle with Cover, part #39-375 (right crank) and #39-376 (left crank) but I would like your advice. Attached are pictured of the Amerimax cover and handle. The Amerimax cover appears to be a little smaller. I need 14 of #39-475 and 10 of #39-476. Do you recommnnd buying one and if it doesn't work return the item. if so, I would start with 1 #39-476 which is my easiest window to work with.

Thank you for your help and advice.

Bill.

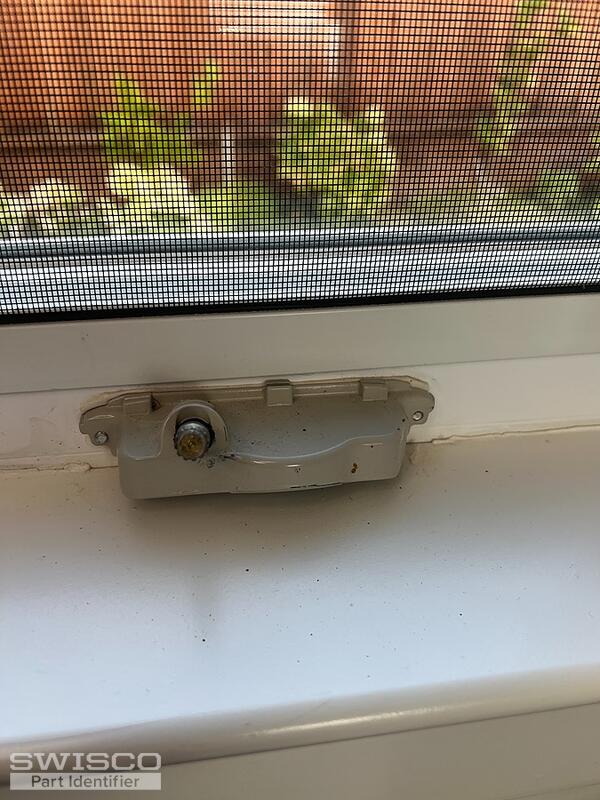

2 user uploaded images

5 Replies

+ Add a Comment

Emily from SWISCO

Sep 3, 2024 9:20 am

EXPERT

Hi there Bill.

I don't believe the 39-375 and 39-376 are what you want. Can you show us a photo of the window open so that the arms of the operator are fully visible? If we can ID the assembly, we can determine the compatible handles and covers.

Home Owner from 94596 Zip Code

Sep 11, 2024 12:31 pm

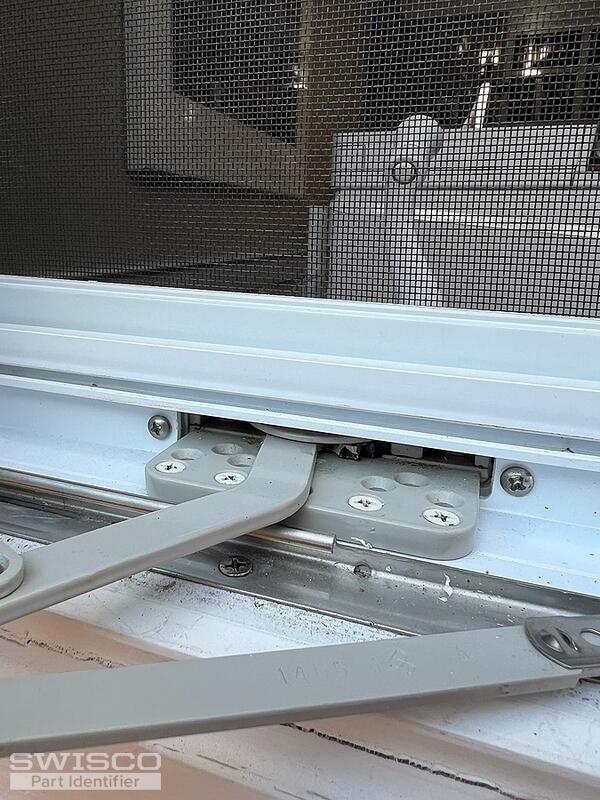

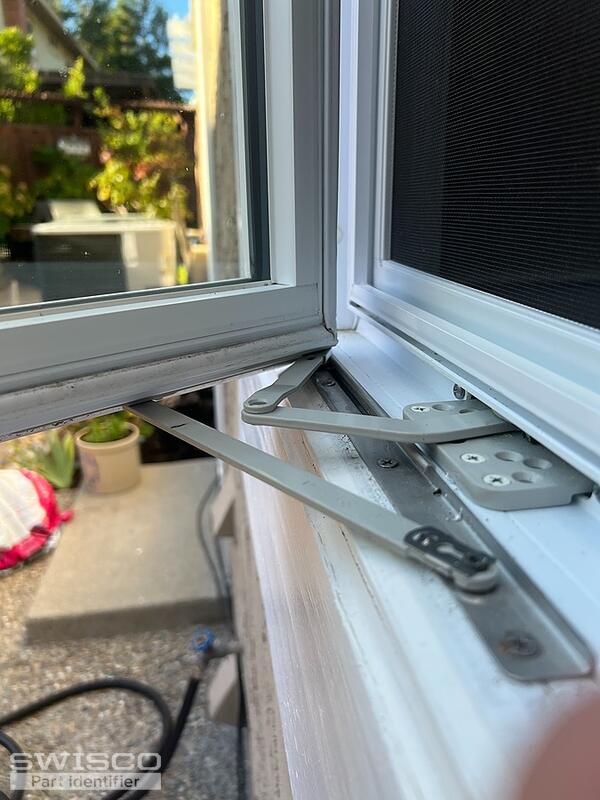

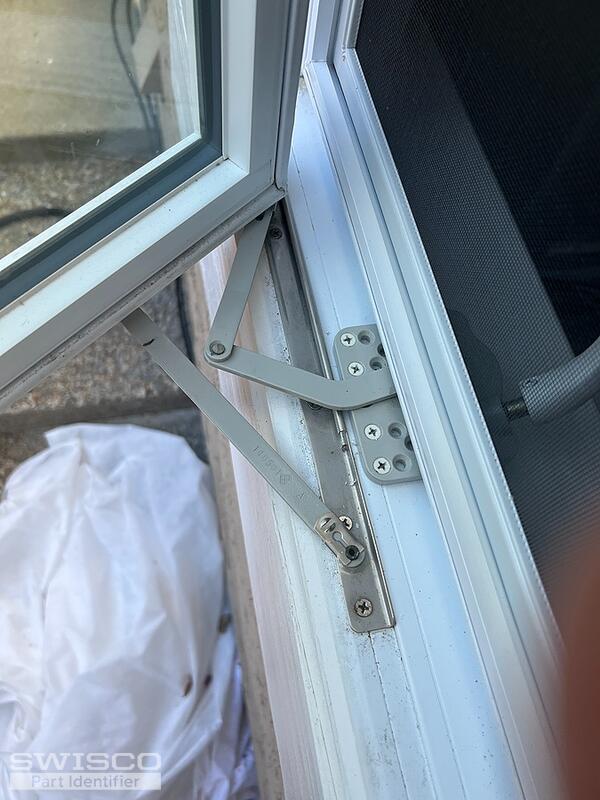

My apologies for not getting right back to you on this matter. Attached are photos of the device you requested. I hope with the different perspectives you can determine the best cover for the opener. I did not see a manufacturer on the device.

Please let me know if you need additional information.

Thanks again for your help.

Bill

5 user uploaded images

Emily from SWISCO

Sep 12, 2024 8:08 am

EXPERT

Thank you for the additional photos, Bill! I'm afraid we don't sell an operator cover that would fit the base shown here. Please allow me to consult one of our senior experts and we will reach back out as soon as we have more information.

Home Owner from 94596 Zip Code

Sep 15, 2024 11:25 pm

Thank you.

Dave Sr. from SWISCO

Sep 16, 2024 9:24 am

EXPERT

Hey there. I can confirm that we don't sell any operator that matches the design exactly. That said it almost appears to be closer to the 39-315 in terms of size. The Encore style operators you mentioned before have a wider body and I don't believe they'll fit in the cutout at the bottom of your window frame. Something like 39-315 would be a better option in my opinion but look it over and see what you think.

Note that the cover comes built into the 39-315 and is not designed to be removed like your original. That does mean you can't swap that out for an alternative cover style. The only option for a folding handle would be our 39-205.

+ Add a Comment
