Replace pins or caps

Home Owner from 55344

Apr 24, 2023 4:47 pm

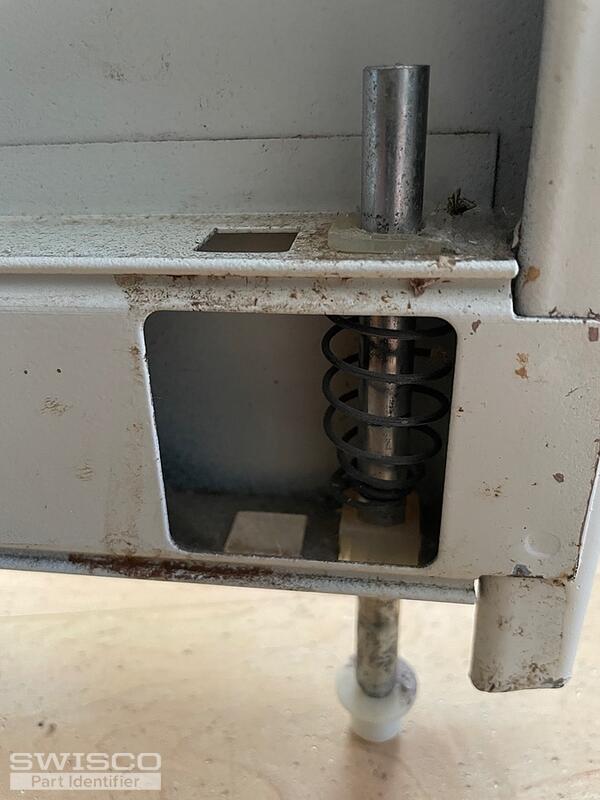

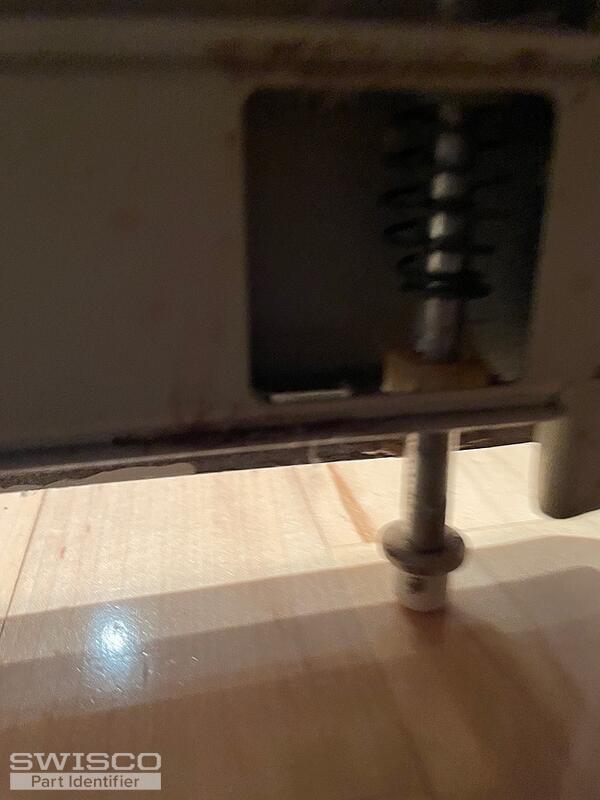

Hi- I have missing and worn caps (bottom and top). Can I just remove and replace caps, or do I need to replace new pins with caps? What part(s) do I need to buy?

4 user uploaded images

4 Replies

Casey from SWISCO

Apr 26, 2023 9:35 am

Hello,

We'd be happy to help but we would need to see your bifold pins removed from the door, along with written-out dimensions, to determine the best replacement option. See our guide here that explains the dimensions and information that we'll need. Thank you!

Home Owner from 55344

Apr 26, 2023 10:56 am

Pin height- 4.75 inch
Cap height- 1/2 inch
Cap width- 3/8 inch
Pin width- 1/4 inch

1 user uploaded image

Paul from SWISCO

Apr 26, 2023 1:40 pm

Thanks for getting back to us with the requested information. We have the 21-100 nylon cap that measures 3/8" wide by 3/8" high and fits a 1/4" diameter pin. We also odder the 21-106 nylon cap that measures 3/8" wide by 7/16" high and fits a 3/16" diameter pin. I would recommend removing your old cap to see if the pin is 1/4" all the way up to the cap or ground down to 3/16".
