tilt window channel balance and pivot shoe

A home owner from Hunterdon County, NJ says:
Bottom window won't stay up.

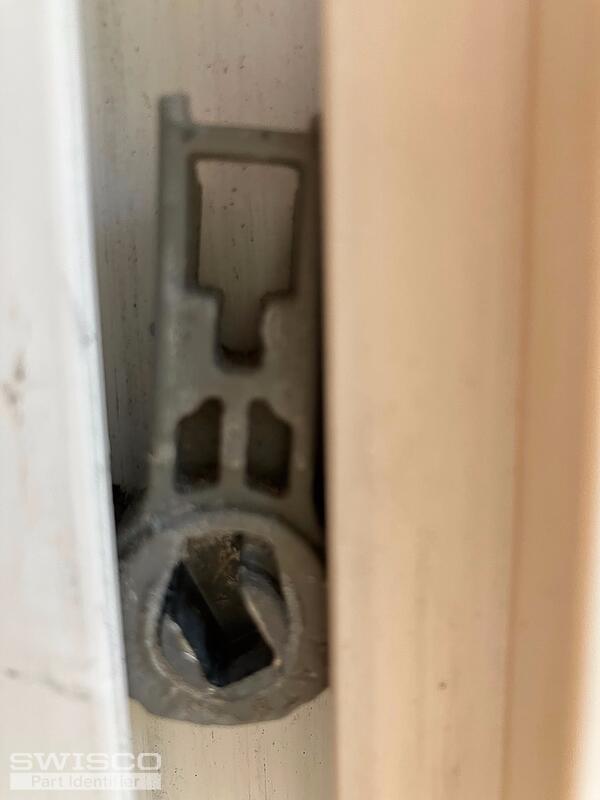

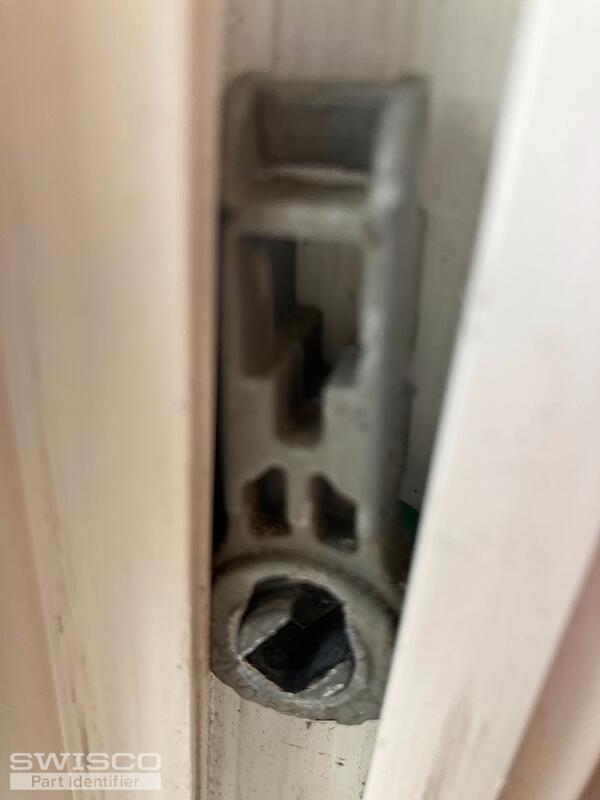

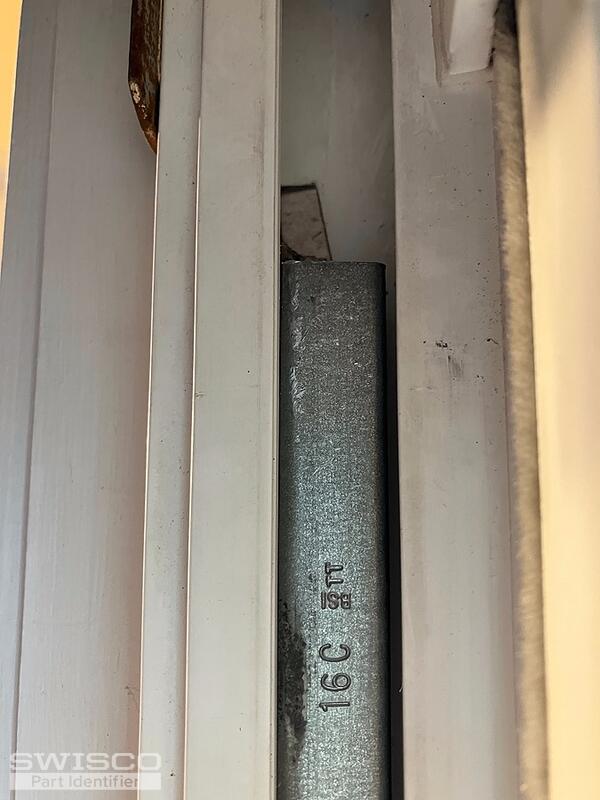

I've attached pictures of the existing channel balances and shoes. I do not see the exact channel on your website. Channel is BSI-TT 16C, 9/16"W, with a hook on one end.
Thumbnail of the uploaded file named IMG_0325.jpeg
Thumbnail of the uploaded file named IMG_0326.jpeg
Thumbnail of the uploaded file named IMG_0327.jpeg
Thumbnail of the uploaded file named IMG_0328.jpeg
Thumbnail of the uploaded file named IMG_0329.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Your balance looks like the S795-16 with a 16C strength option except yours uses the 15-198 clip instead of a screw tab at the end of the pulley. We can supply these but it will need to be a custom order. We'll need you to confirm the number of balances that you need, with the minimum being two, as well as if the width of your T-lock shoe matches the 1-1/4" measurement of the 15-195 shown below. Thank you!

Dimensions for 15-195
Dimensions for 15-195
