Replace window hardware

A quick learner from Martinsburg, WV says:
Good Morning i have three windows with bad pivot locks that i can't find a part number for. To replace everything i believe i need six of 15-194. Six of S795-27 custom made with the hooks at the top. and finally three of 26-243 and three 26-244. I just want to make sure that this all looks right based on the pictures i'm providing. Thanks in advance!

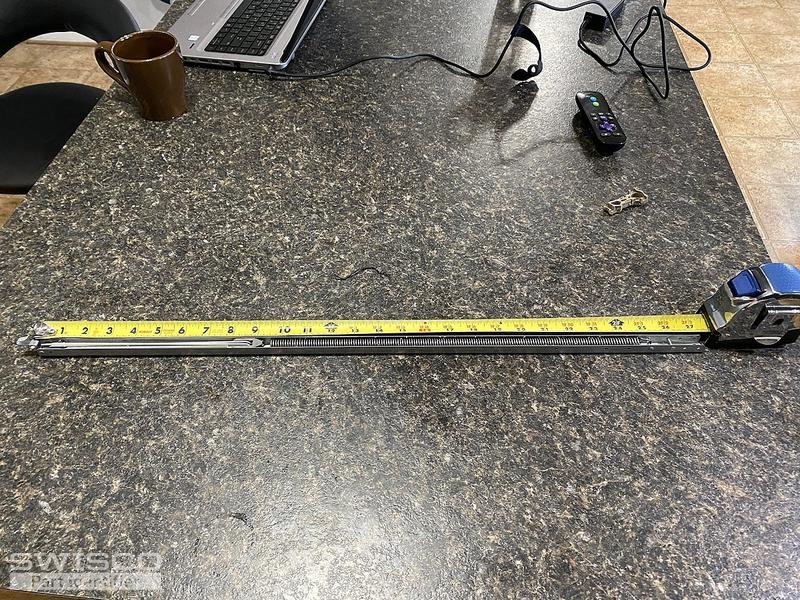

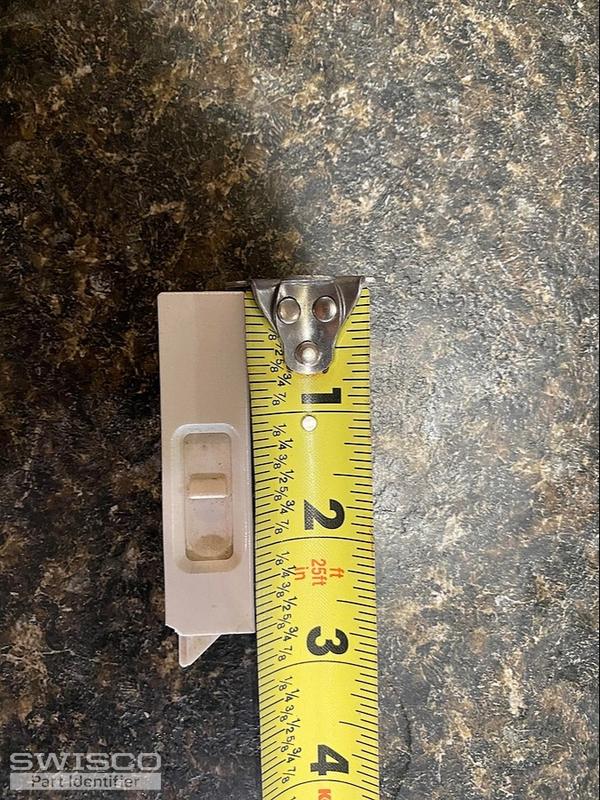

Thumbnail of the uploaded file named Window 1.jpg
Thumbnail of the uploaded file named window 2.jpg
Thumbnail of the uploaded file named window 3.jpg
Thumbnail of the uploaded file named window 4.jpg
Thumbnail of the uploaded file named Window.jpg
Profile picture of Tom
Tom from SWISCO responded:

The hardware you picked out looks right to me, but you should make sure all our dimensions match beforehand.

The only thing I'm not sure about is your balance. Our S795-27 installs at the top of the window using a screw tab, but your balance appears to use a hook. That means it will have to be a custom order. We would use our S795-27 normally, but I'd swap out the top screw tab for our 15-198 hook and the bottom shoe for our 15-194. Does that sound good to you?

If so, let me know the stamp printed on the channel. I can then email you an order link and price quote for six. That will let you add the custom balance to your cart as if it were a standard product.

A handy person from Martinsburg, WV says:
Good morning, all that sounds good. The channel balance is stamped with "27C". That would be great if you could send the the link with the custom balances with the hooks. Thanks for your help!
Profile picture of Tom
Tom from SWISCO responded:

Perfect! I'll shoot that over now. Please let me know if you had any questions.
