Replacement

A home owner from Newington, CT says:
Hello, I am trying to identify all the parts to replace. Help me please with pivot lock shoe.
Thumbnail of the uploaded file named 20200811_125917.jpg
A home owner from Newington, CT says:

I've chosen Pivot Shoe, 9/16" Thick 15-129

What do you think?

Profile picture of Tom
Tom from SWISCO responded:

I agree that the 15-129 looks like a good match, but you should ensure that its dimensions match up to ours to be 100% sure.

I'm also not sure about the pivot bar. Can you remove an undamaged version from the window and show me a clear picture of it?

A home owner from Newington, CT says:
I haven't unscrew it, but looks like one yours 3" but that one is with a plastic ring on the end.
Thumbnail of the uploaded file named 20200807_172519.jpg
Thumbnail of the uploaded file named 20200807_172509.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm glad you showed me this photo. I've changed my mind about the 15-129; that won't work with pivot bars that have the same style tip as this.

At this point, I will need you to remove an undamaged version of your pivot shoe from the window and show me a picture of it by itself and without obstruction. You definitely need something different, but I'm not sure what. We'll need to cover all of our bases.

A home owner from Newington, CT says:
Hi Tom,
I took the new pictures.

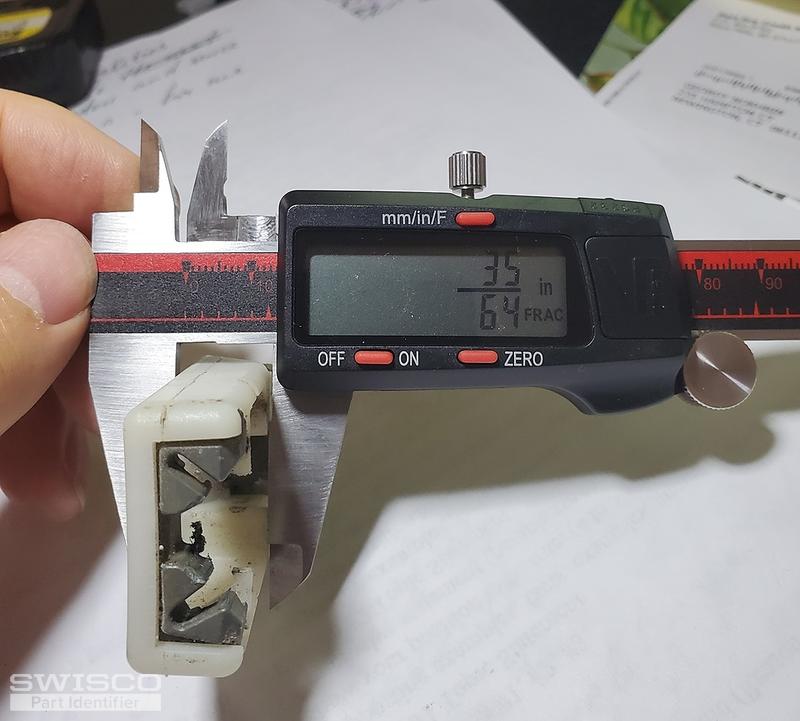

Thumbnail of the uploaded file named 20200906_135256.jpg

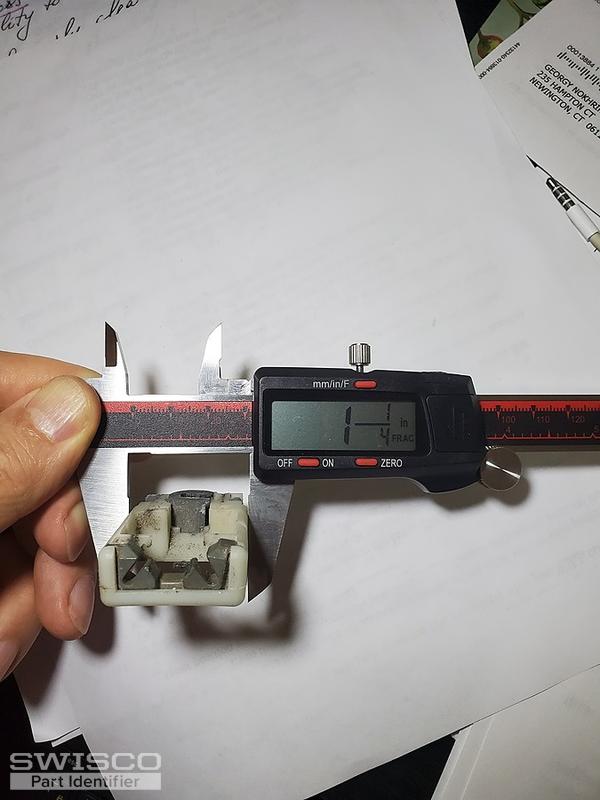

Thumbnail of the uploaded file named 20200906_135241.jpg

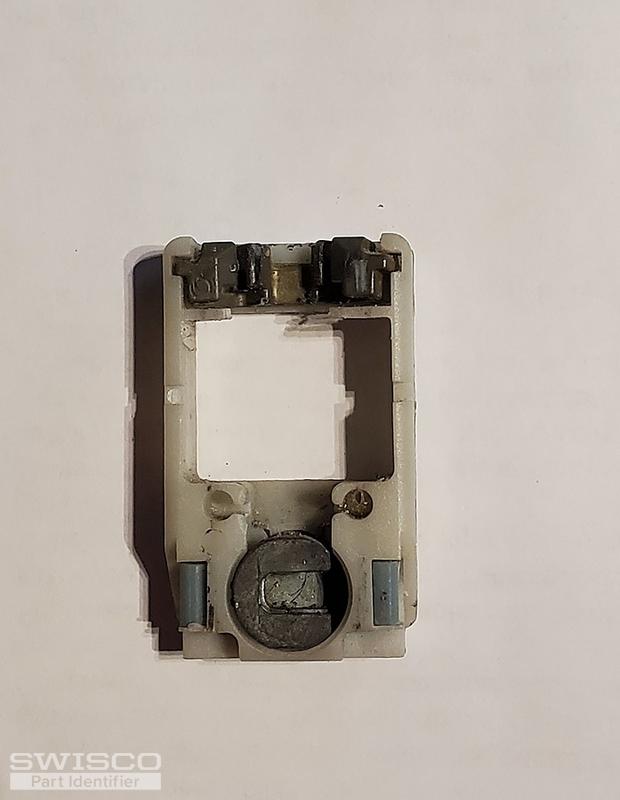

Thumbnail of the uploaded file named 20200903_182917.jpg

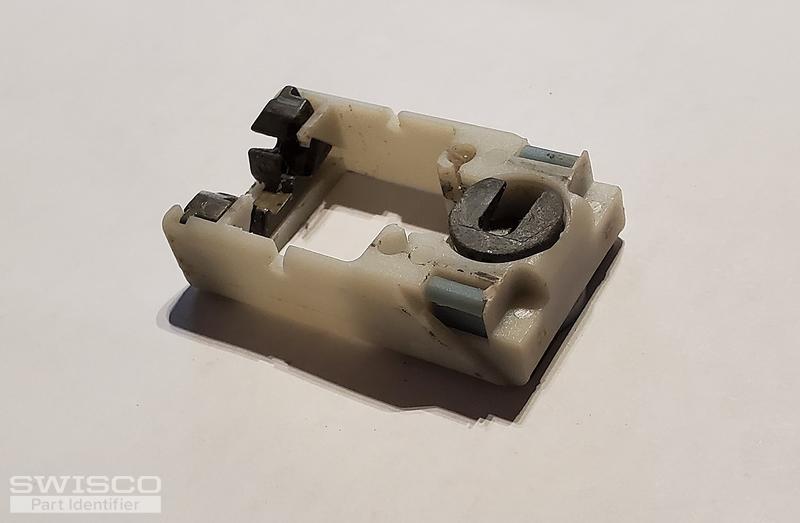

Thumbnail of the uploaded file named 20200903_182903.jpg

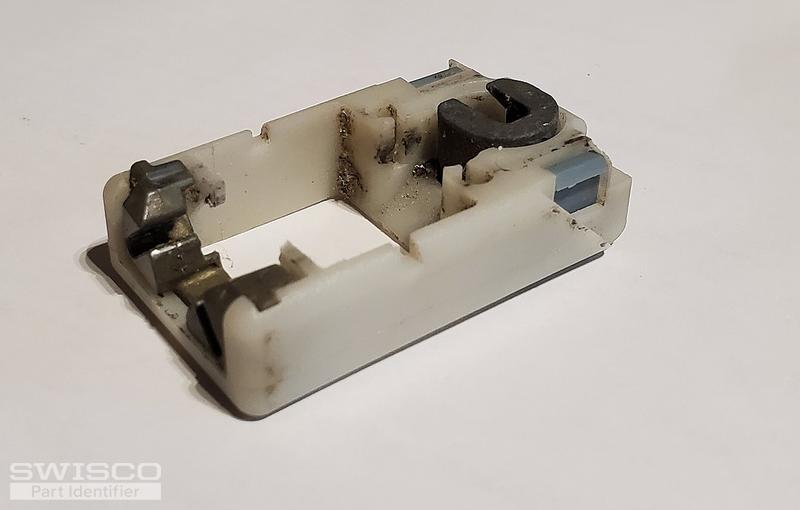

Thumbnail of the uploaded file named 20200903_182837.jpg
A home owner from Newington, CT says:
And these are the pictures of the old pivot bar. I chose 3-1/16"
Will it work with 15-129 shoe if it is a right choice in my case?

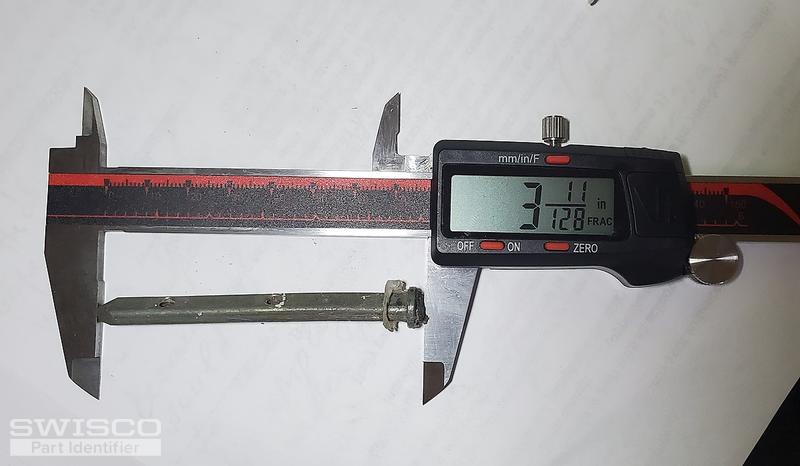

Thumbnail of the uploaded file named 20200906_140728.jpg

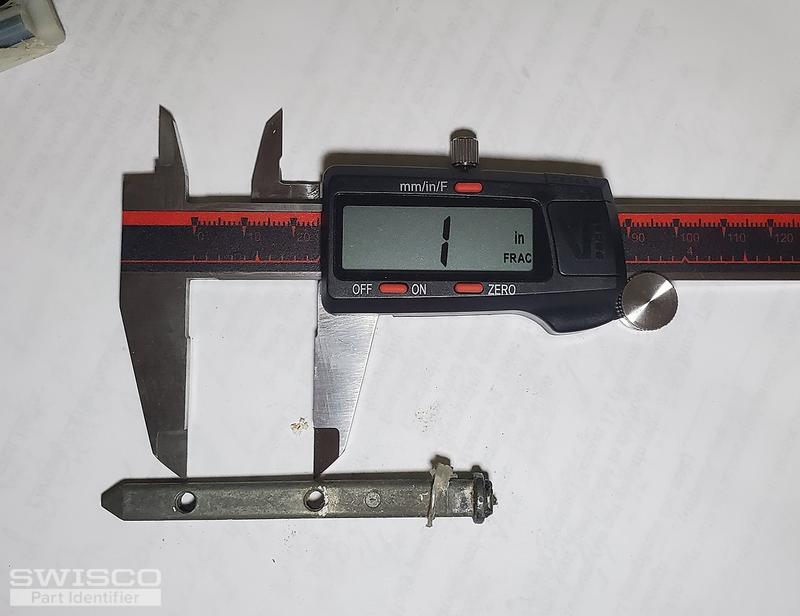

Thumbnail of the uploaded file named 20200906_140651.jpg

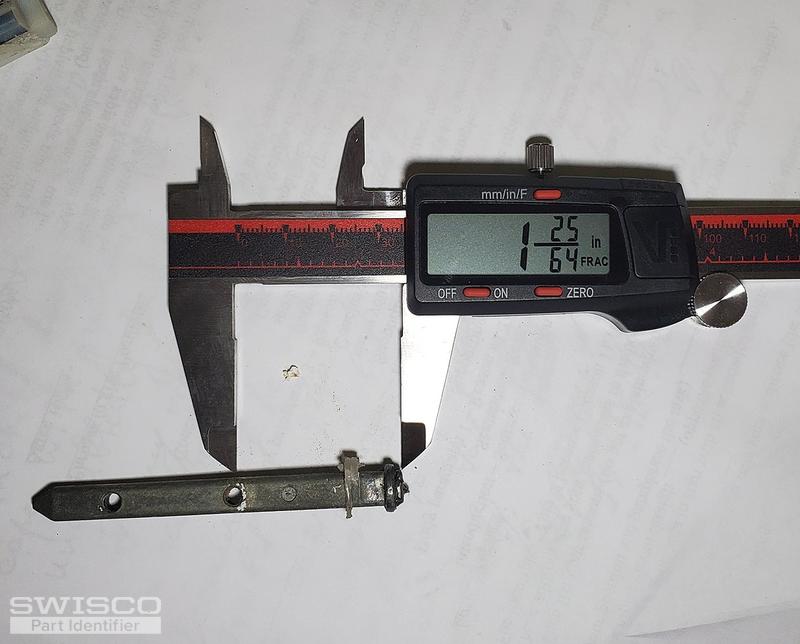

Thumbnail of the uploaded file named 20200906_140626.jpg

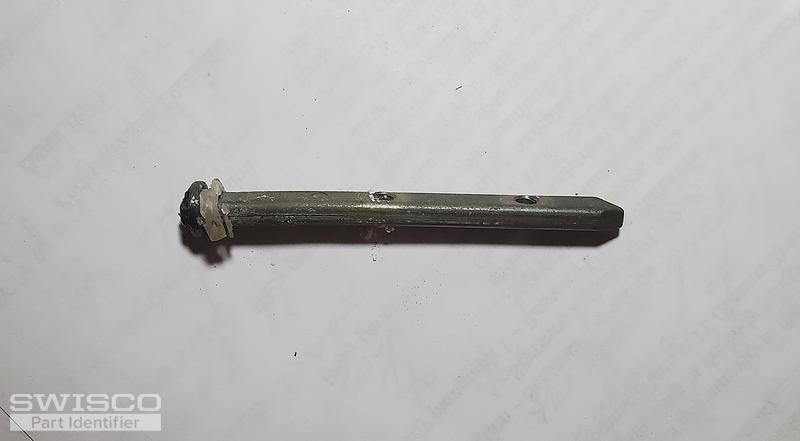

Thumbnail of the uploaded file named 20200906_140255.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! I recommend the 15-188 pivot shoe and 26-226 pivot bar. I think these two parts will work very well for your window. The dimensions and design for both parts appear to match up nicely.
