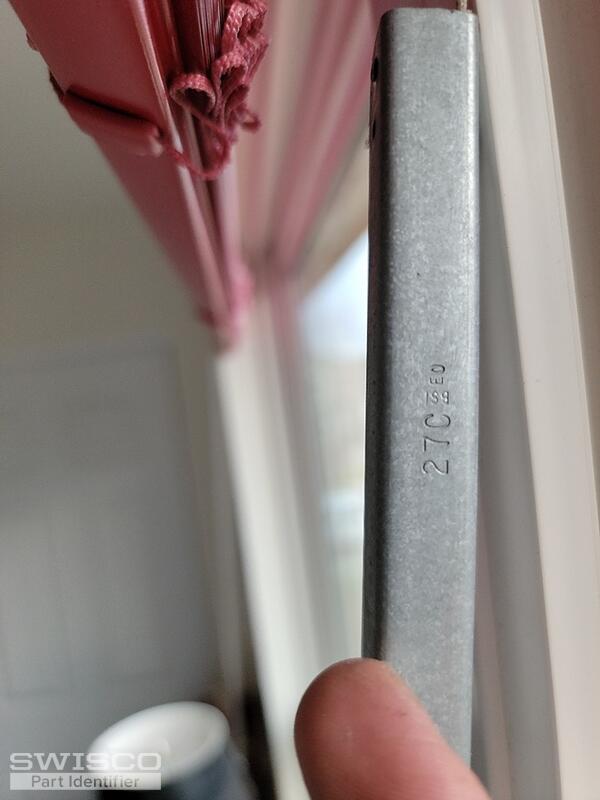

visible markings on the balance:
27C
BSI?
E0 or EO?

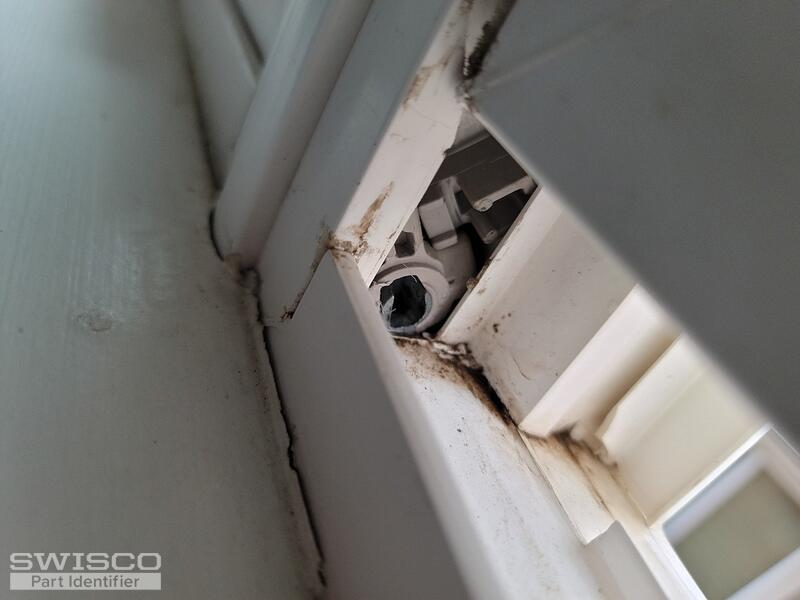

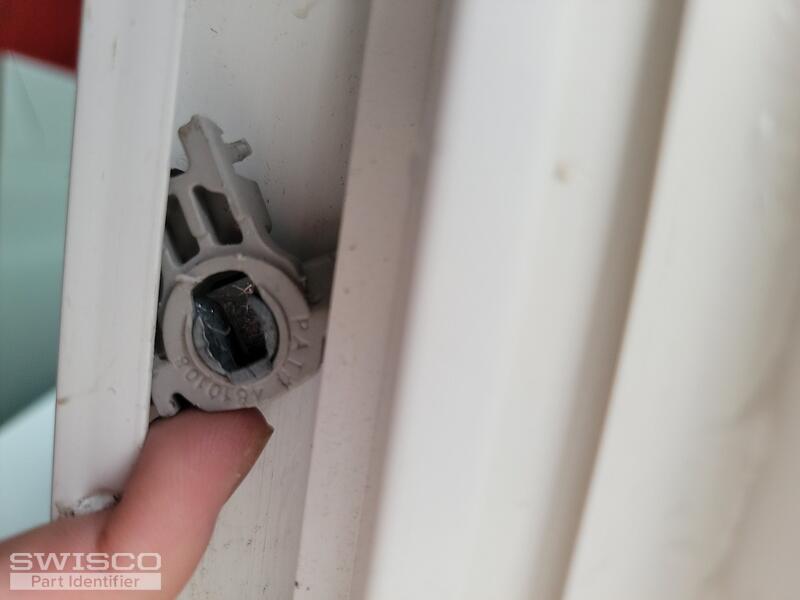

visible markings on the Pivot Shoe:
PAT
A810108
or
810108
or
B10108

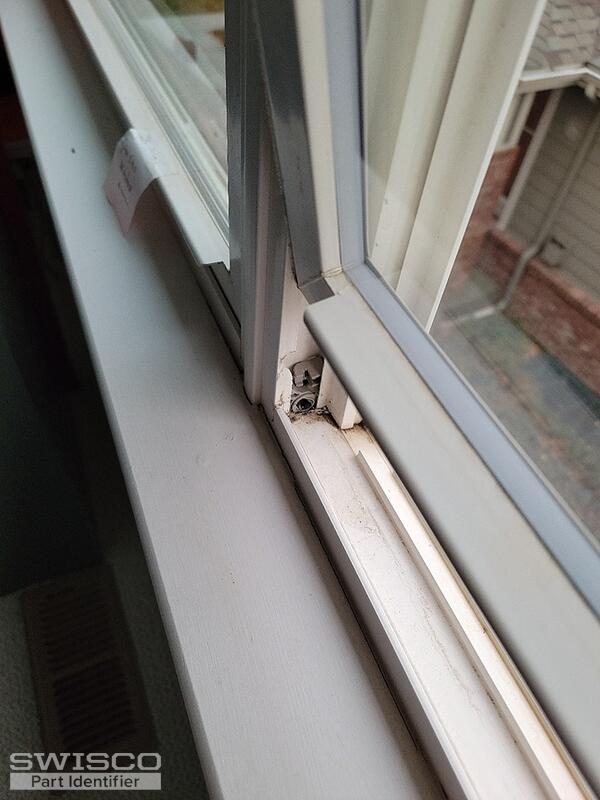

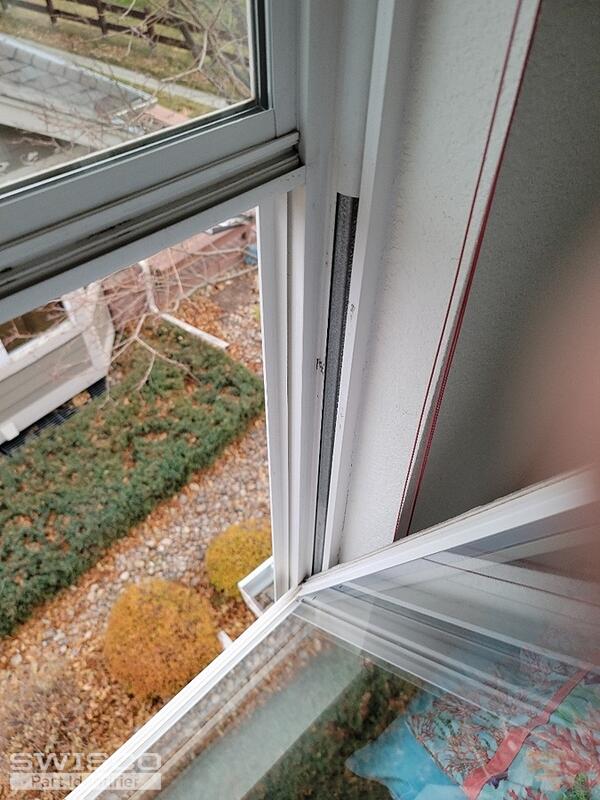

Replacement Channel Balance

Contractor from Loveland, CO
Nov 29, 2021 3:11 pm
5 user uploaded images
3 Replies

Emily from SWISCO
Dec 2, 2021 11:32 am


Hello!
It looks like you have our S795-27 with a 27C stamp option. This balance comes with the 15-195 closed cam T-lock shoe so I recommend removing an undamaged shoe to confirm if this is what you have or not. If it's different from the 15-195 or if you're unsure, show us a picture of an undamaged T-lock shoe removed from the window and we can work from there.
One important detail to note is that the Series 795 attaches to the top of the track using a screw, not a hook. If yours needs a hook then let me know; we can still help but your balance will have to be custom made.

Contractor from Loveland, CO
Dec 7, 2021 11:51 am
Thank you, Emily!
