Replacement Channel Balance

A home owner from California says:
May 15, 2022

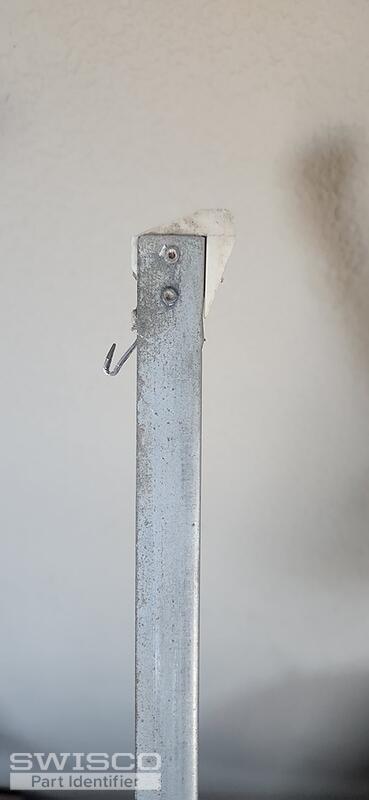

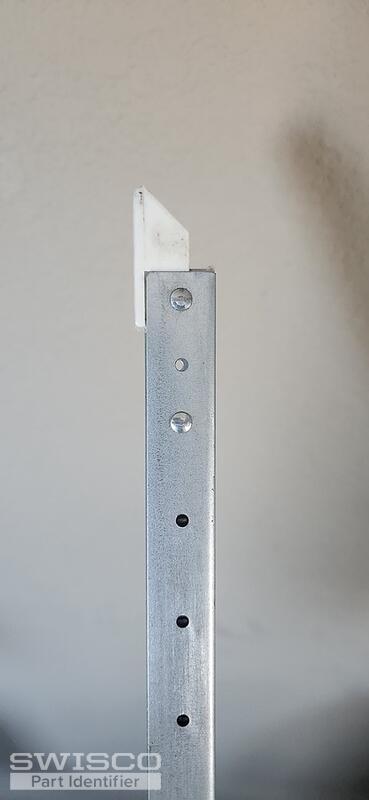

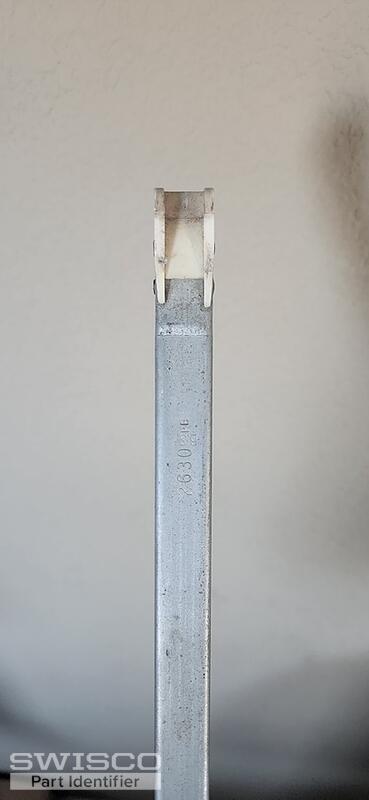

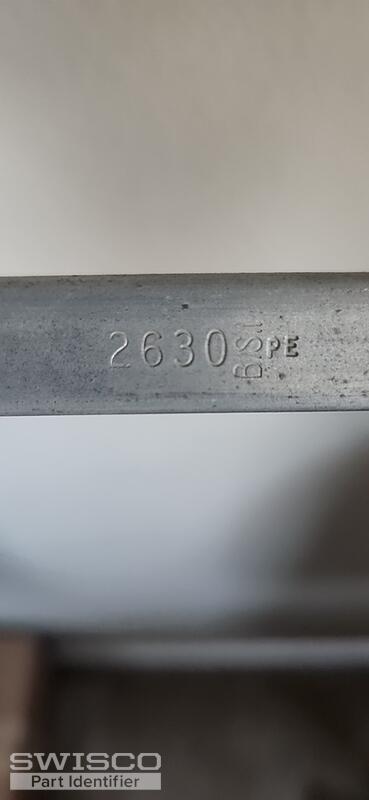

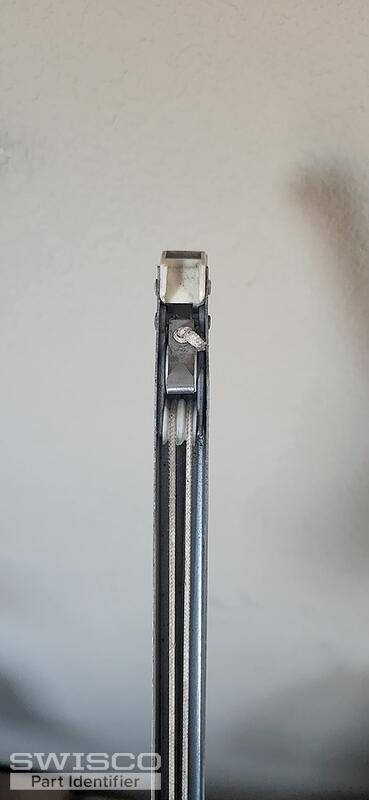

Attached are pictures of my channel balance. Need to know which one I will need before I order. Length is 27 inch measurement. The rest is on pictures provided.

Thank you!
Thumbnail of the uploaded file named 20220515_133531.jpg
Thumbnail of the uploaded file named 20220515_133544.jpg
Thumbnail of the uploaded file named 20220515_133506.jpg
Thumbnail of the uploaded file named 20220515_133521.jpg
Thumbnail of the uploaded file named 20220515_133524.jpg
Profile picture of Casey
Casey from SWISCO responded:
May 17, 2022

Hello,

It looks like you have either our S351-27, with a 15-002 bottom attachment, or S390-27, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2630 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
27" Series 351 Channel Balance
27" Series 351 Channel Balance
S351-27
$10.77
27" Series 390 Channel Balance
27" Series 390 Channel Balance
S390-27
$10.55
