Replacement Coil Balance Identification

Start a new Discussion

Contractor from Lynn, Massachusetts

Mar 6, 2021 4:11 pm

Hi,

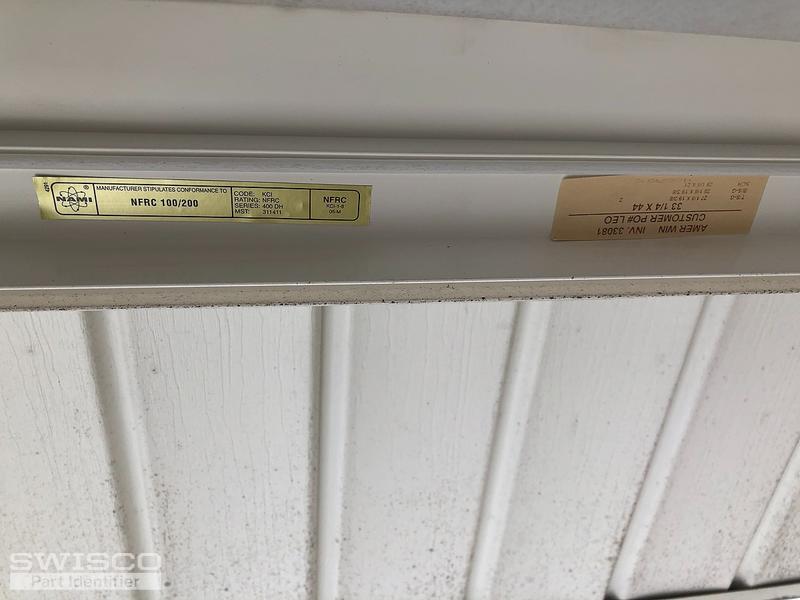

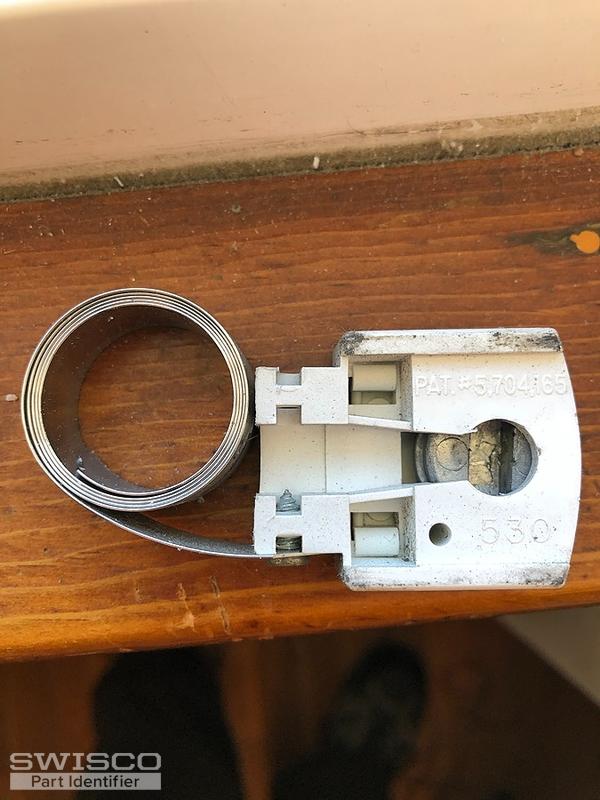

I am looking for an identification of these broken balances. Any help would be greatly appreciated.

Garry

5 user uploaded images

3 Replies

Tom from SWISCO

Mar 9, 2021 9:04 am

Hello, Garry. This is an old style shoe that isn't made anymore. The best option we have at the moment is our 15-199. Now, I think this will work, but you'll have to measure the thickness of your spring since the 15-199 is compatible with two sizes: the 1/2" thick Series 160 and the 3/8" thick Series 165.

Look these products over and let me know if you had any questions.

Contractor from Lynn, Massachusetts

Mar 9, 2021 9:22 am

Hi Tom,

The coil itself is 1/2" thick. Not sure about gaging the weight of the window with your product but I will check the 15-199 that you have. Thanks for the help.

Garry
