Replacement Coil Balancers and Shoes.

Contractor from Plainsboro, NJ

May 13, 2026 3:57 pm

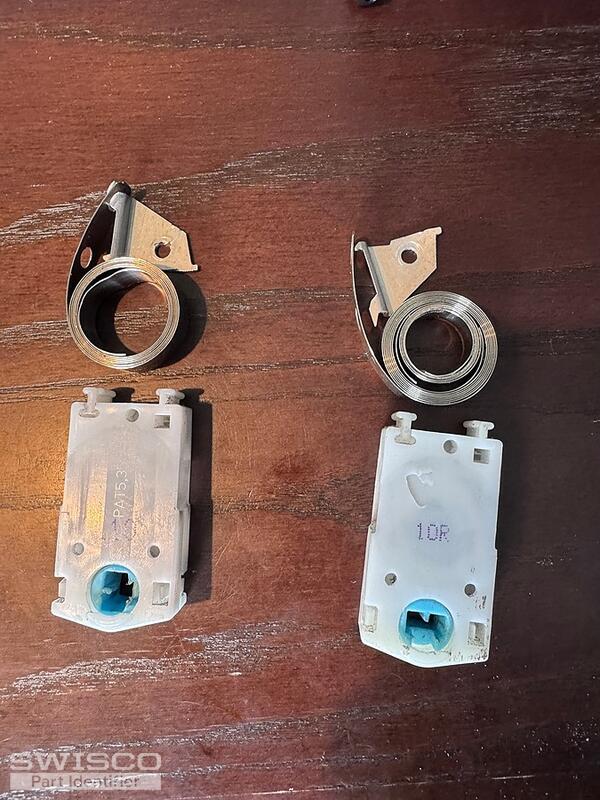

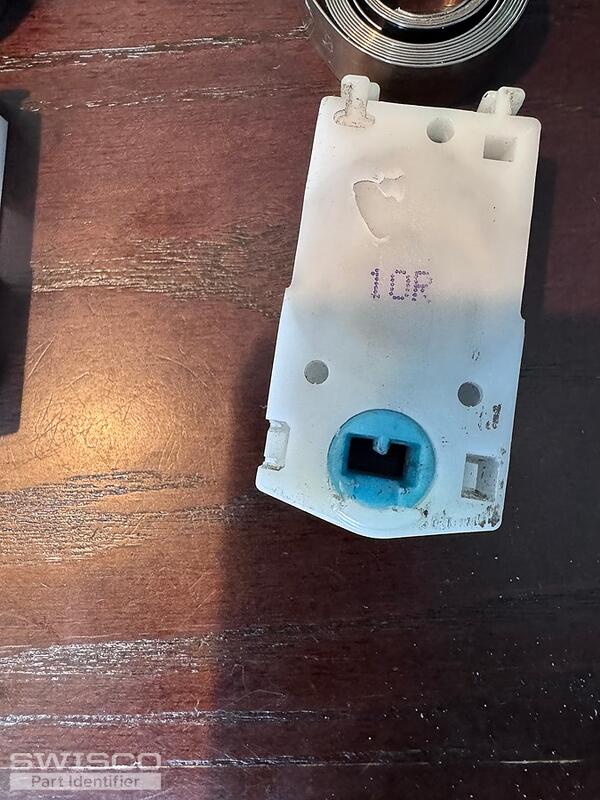

Only Markings are the L10 and R10, showing position on window and resistance in pounds. Willing to use any other replacements you make have that include coil housing and corresponding shoe.

5 user uploaded images

2 Replies

Jasmine from SWISCO

May 18, 2026 9:27 am

Thanks for posting! You have the 15-087 Coil Housing Pivot. It is compatible with the Series 180 Coil Balance. Since yours is marked with a 10, you'll need the S180-10.

The coil is anchored to the window jamb using the 16-024 Mounting Bracket.

Detail of 15-087
