Quick Learner

Aug 7, 2023 1:24 pm

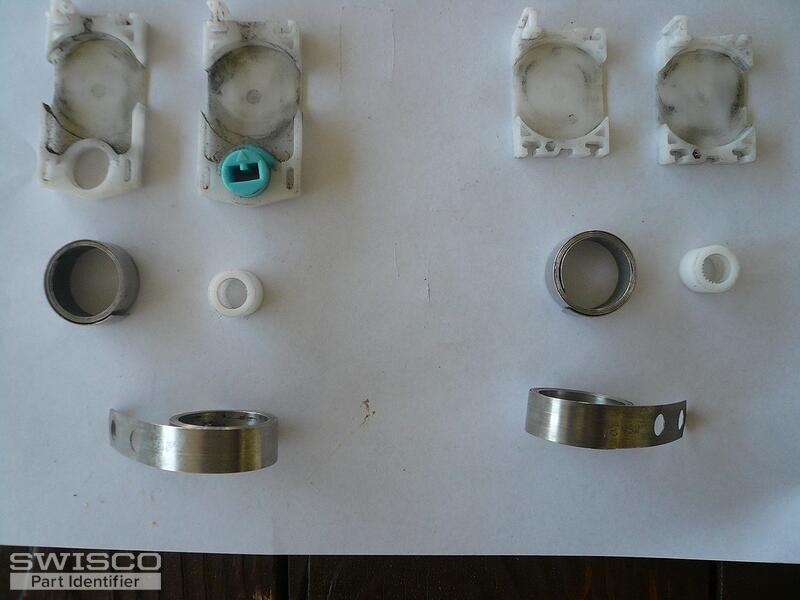

Looking to get replacement coil balances for 2 new sashes. Purchased these from SWISCO in 2015 and looking to purchase the same type.

4 user uploaded images

4 Replies

Casey from SWISCO

Aug 8, 2023 2:47 pm

Hello,

Your balance shoe resembles the 15-087 housing pivot, which would use the S180 coil springs, 15-086 tandem housing, and 16-031 or 16-024 mounting bracket. Take a look and let us know if you need anything else. Thank you!

Detail of 15-087

Series 180 coil balance diagram

Handy Person from Pennsylvania

Aug 8, 2023 9:44 pm

Hello Casey I Have my cart filled with the parts I need to put in these 2 new window sashs my only question I have is if you look at my pictures of the coil housing you will see a plastic round spacer do the new housings come with those or do I have to order those also? I don't see those listed. If I must purchase those can you give me the part#. Thank You so much for your help.

1 user uploaded image

Paul from SWISCO

Aug 9, 2023 11:15 am

Neither the 15-087 or 15-086 come with a drum barrel since we haven't found them to be necessary for the operation of the coil springs. With that being said, you should be able to reuse your original barrel drums if you'd like.
