Replacement Door Handle and Mortise

A home owner from Raleigh, NC says:
October 10, 2020
I could not find any part numbers or markings at all. The overall size of the handle Plates is 9-7/8". The measurement from the screws that screw the handles to the door is 3-3/4". The measurement from the center of lock hole to the top screw is approx. 2-3/4". The measurement from center of lock hole to the bottom screw is approx. 1-1/4". The overall measurement of the mortise is 10".
Thumbnail of the uploaded file named Door Cutout.jpg
Thumbnail of the uploaded file named Door Handle Holes.jpg
Thumbnail of the uploaded file named Door Handle.jpg

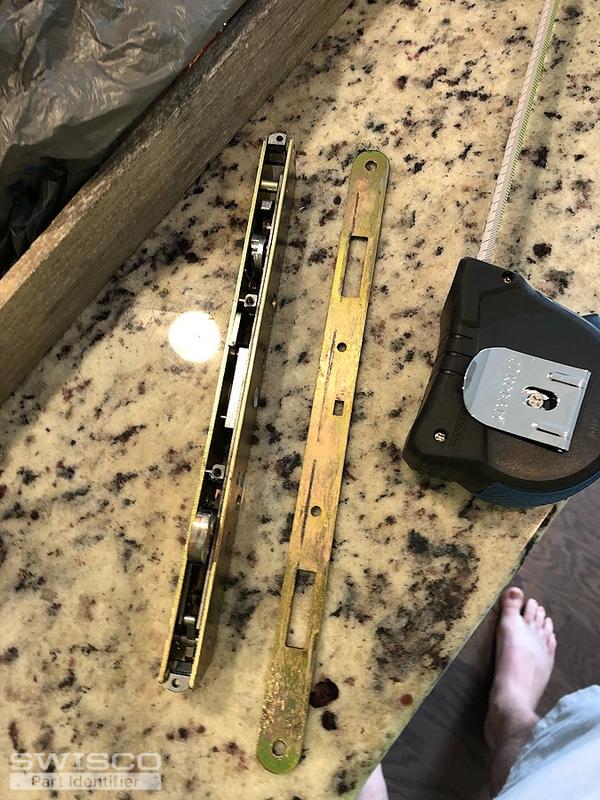

Thumbnail of the uploaded file named Mortise and Plate.jpg

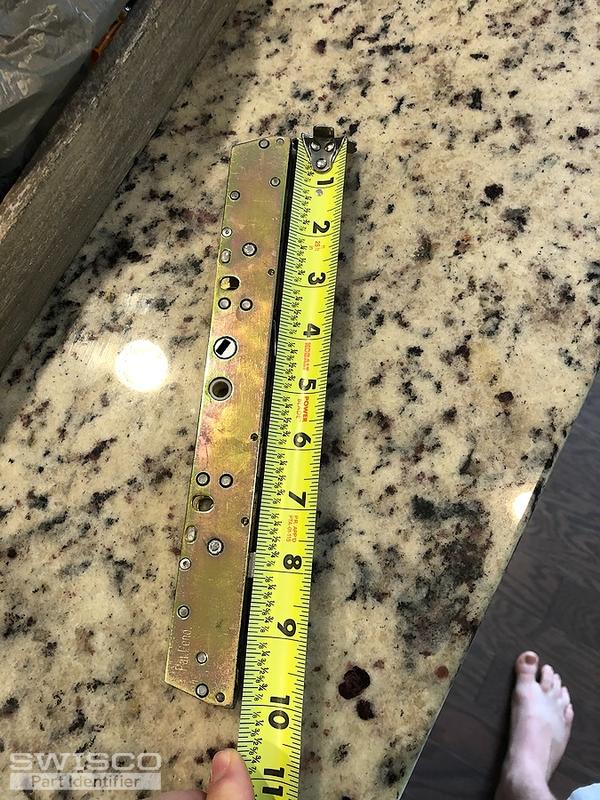

Thumbnail of the uploaded file named Mortise.jpg
Profile picture of Bob
Bob from SWISCO responded:
October 13, 2020

See our 82-087 and 82-265. Look over the dimensions and see if these parts match up.
Multi-Point Mortise Lock with Face Plate, 11"
Multi-Point Mortise Lock with Face Plate, 11"
82-265
$31.70
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")
82-087
$112.27
