Replacement Double Hook Lock : SWISCO.com

Home Owner from Jacksonville,FL

May 1, 2024 5:05 pm

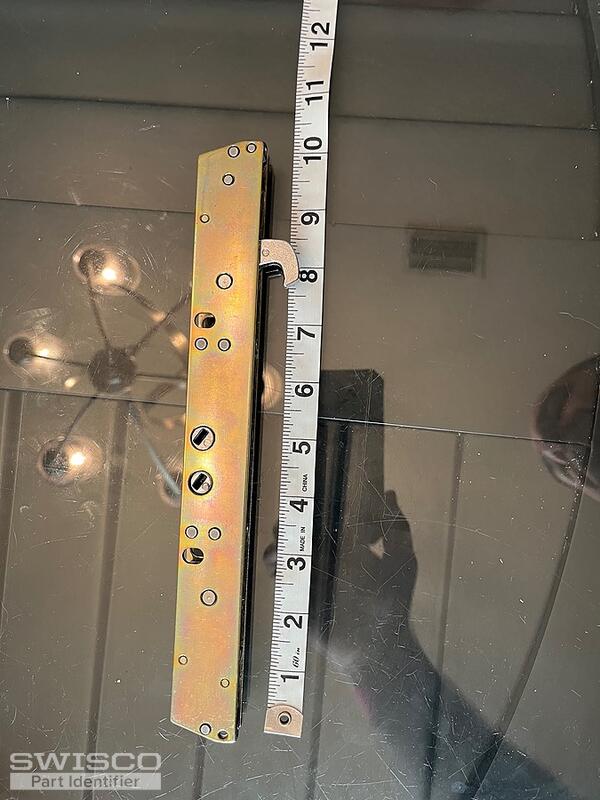

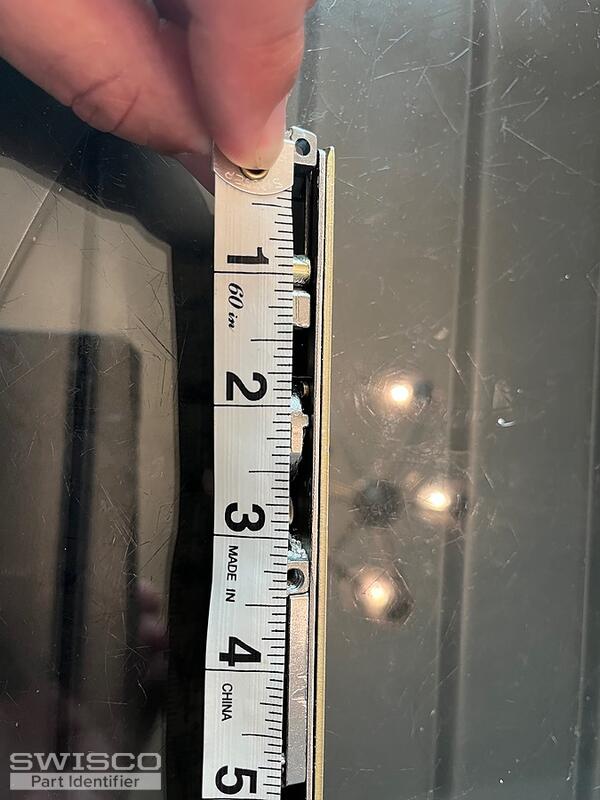

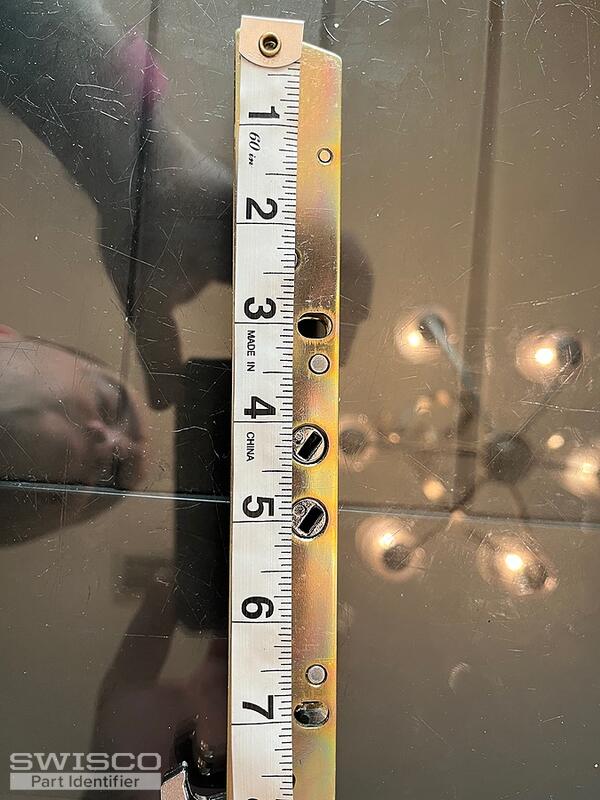

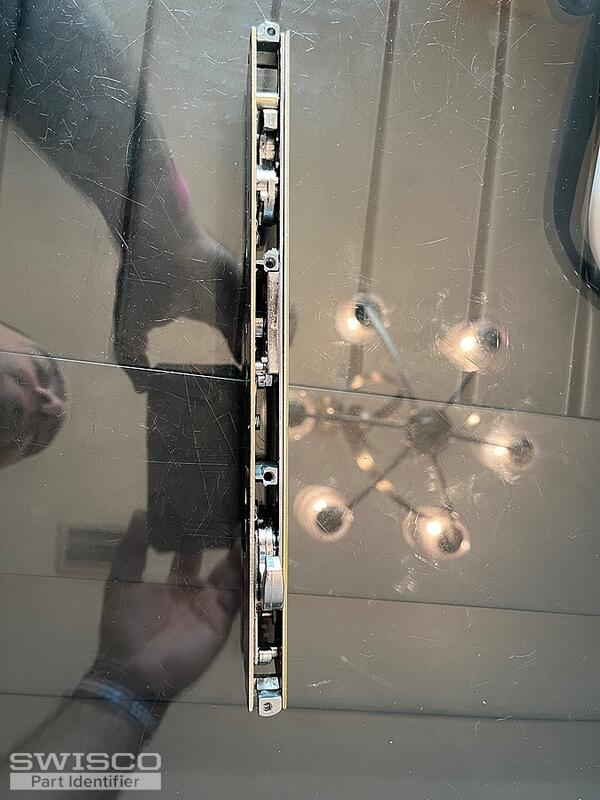

I'm looking for a replacement double hook lock for a Reliabilt 332 Door series. It looks similar to your 82-239 but has no face plate or door lock protector switch.

4 user uploaded images

6 Replies

Jasmine from SWISCO

May 3, 2024 10:42 am

Thanks for posting! These mortise locks do typically have a faceplate on them, unless it has one that extends the total length of the door. Is yours missing the faceplate?

May I see a photo of the space on the door where this lock would install?

Please let me know if you have any questions in the meantime.

Home Owner from Jacksonville,FL

May 3, 2024 11:10 am

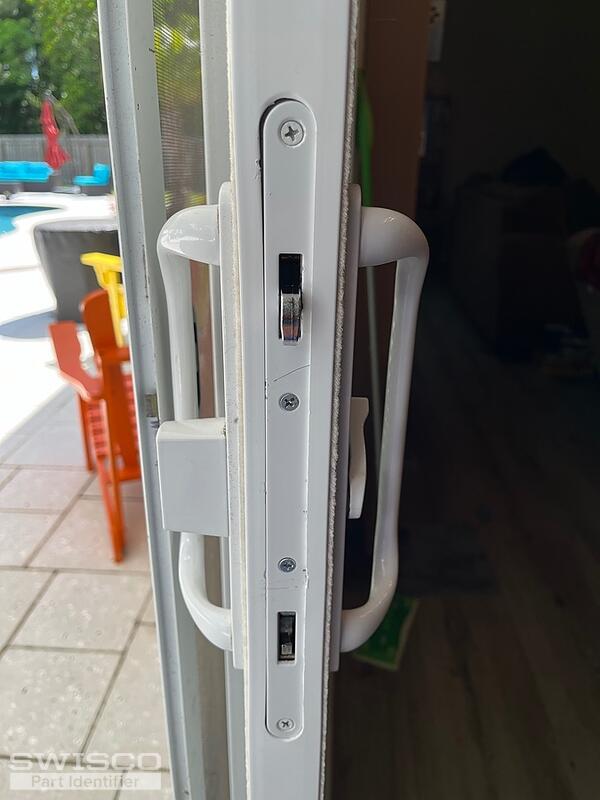

Here is the door with the lock back in. The faceplate is the white piece that is part of the door. They may have replaced it with the white piece to match the door.

1 user uploaded image

Jasmine from SWISCO

May 3, 2024 11:52 am

It is very likely that is the original faceplate that came with the mortise lock. That said, your lock looks a lot like the 82-265 Multi-Point Mortise Lock. To determine if this is the right fit, carefully review and compare the dimensions below.

Keep in mind, you'll also need to replace the keeper on the door as your existing keeper may not be compatible with our mortise lock.

Alternate image for 82-265

Alternate image for 82-249

Home Owner from Jacksonville,FL

May 3, 2024 12:10 pm

Question-What about the anti-slam button, as the current lock system does not have it and this one does? Will that change/effect how it works in the door?

Jasmine from SWISCO

May 3, 2024 2:05 pm

No, it will not change the function of the door. It provides added protection to the hooks so that you aren't able to lock the door without that button being engaged.

I hope this helps!
