Replacement Hardware

A home owner says:
September 22, 2020
We got this patio door from another party and is missing what holds the stationary door in place, which we don't know what that is, missing the handle inside and out, missing the other half of the lock mechanism. The only marking is in the glass which says ppg herculite k.The size of the locking mechanism in the door is about 12 inches. We will need all appropriate parts. Thank you.

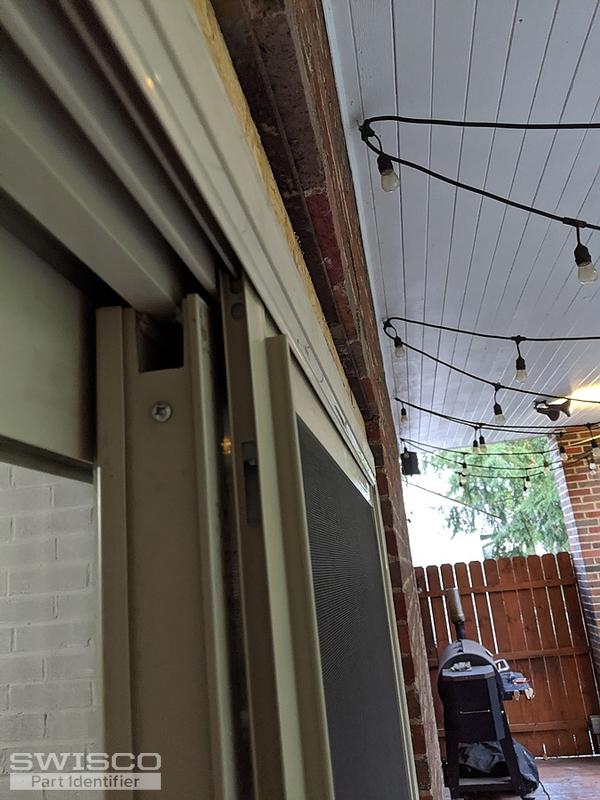

Thumbnail of the uploaded file named IMG_20200921_190813.jpg

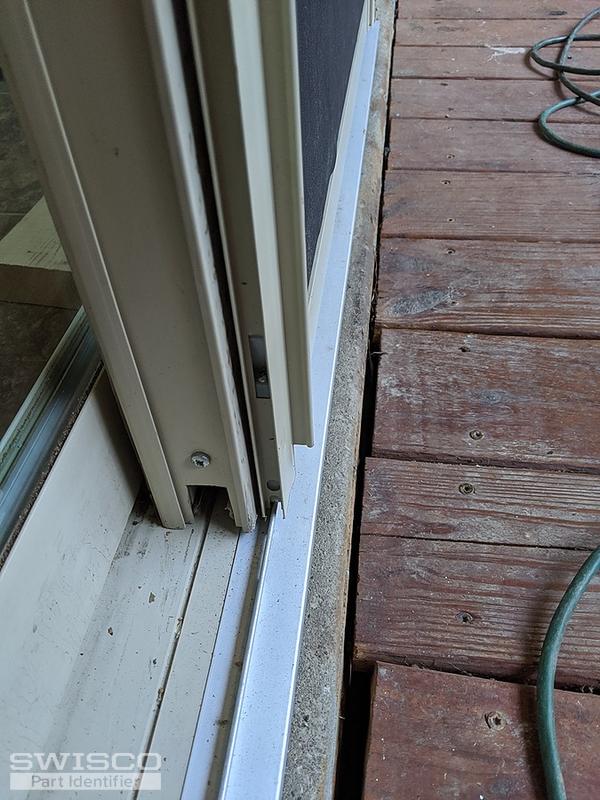

Thumbnail of the uploaded file named IMG_20200921_190808.jpg

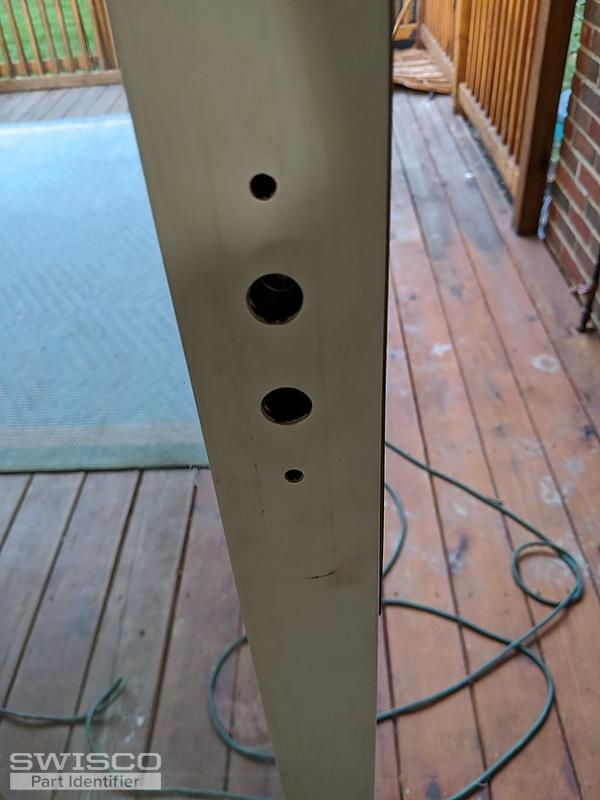

Thumbnail of the uploaded file named IMG_20200921_190758.jpg

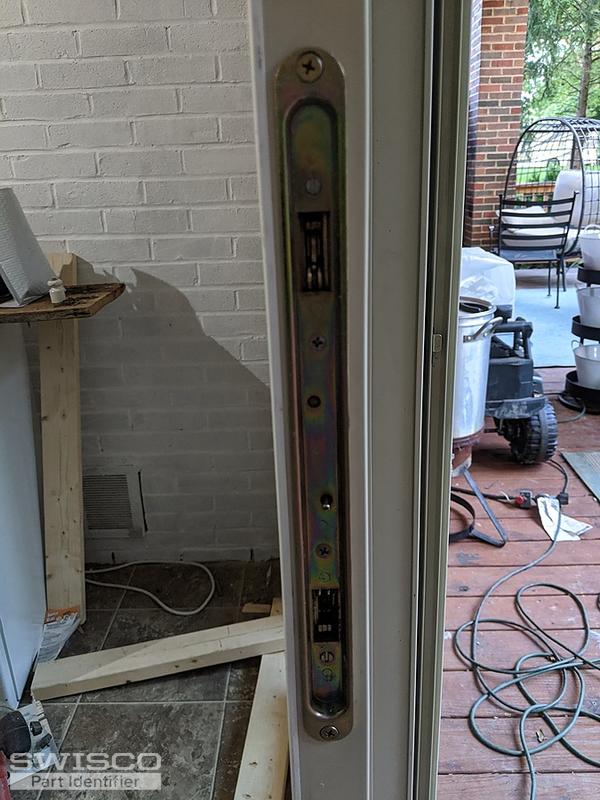

Thumbnail of the uploaded file named IMG_20200921_190746.jpg
Profile picture of Bob
Bob from SWISCO responded:
September 25, 2020

The mortise lock looks like our 82-260, which uses the 82-249 Keeper. A handle set like the 82-030 will work with this lockset. I can't comment on other hardware as confidently, but the 80-051 might be the brackets you need for the stationary door. See the rest of our sliding glass door accessories here.
Multi-Point Mortise Lock with Pocket Plate, 12"
Multi-Point Mortise Lock with Pocket Plate, 12"
82-260
$35.87
Sliding Glass Door Multi-Point Keeper
Sliding Glass Door Multi-Point Keeper
82-249
$12.97
Sliding Patio Door Handle Set, 3-15/16"
Sliding Patio Door Handle Set, 3-15/16"
82-030
$29.95
Fixed Patio Door Lite Clip
Fixed Patio Door Lite Clip
80-051
$6.45
