Replacement Parts

A handy person from Florida says:

February 26, 2023

Looking for a replacement for my window balances shown here.

Thumbnail of the uploaded file named CALDWELL 26 4 JL.jpeg

Emily from SWISCO responded:

February 27, 2023

Hey there!

I'm afraid we can't identify what Series of balances you have from this photo alone. I would need you to remove an undamaged balance and show us clear photos of the top and bottom fittings in order to help. The related video will go over exactly what we're looking for.

A handy person from Florida says:

March 2, 2023

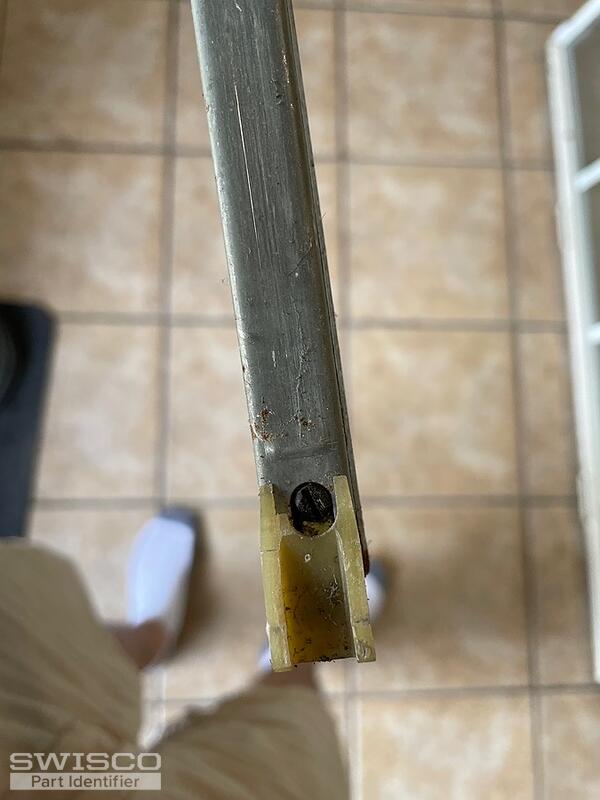

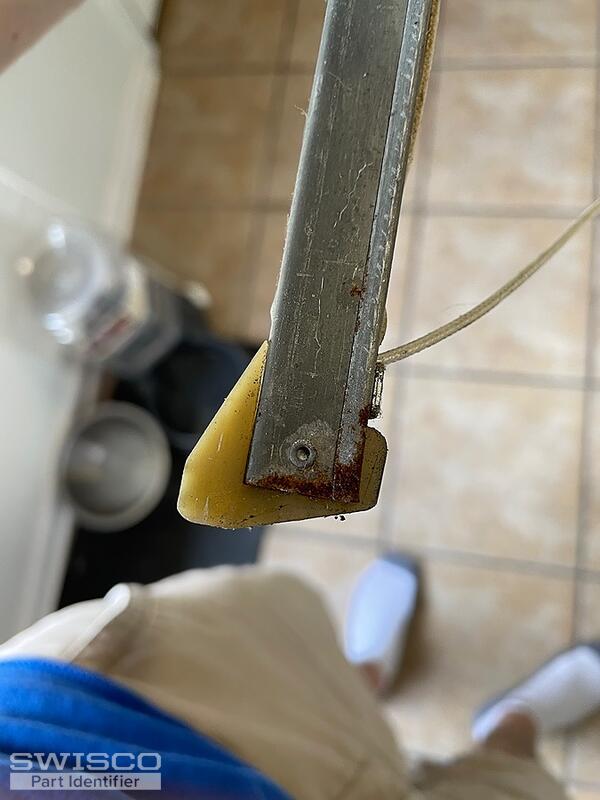

Sure thing! Please see photos attached.

Thumbnail of the uploaded file named 2E267214-B8F2-4A83-A46B-121F840B7E56.jpeg

Thumbnail of the uploaded file named 6432A97B-8343-4F8E-BBD4-1546C8A9BE1C.jpeg

Thumbnail of the uploaded file named 61922E9E-4F42-4150-B3C5-A02DAD105922.jpeg

Thumbnail of the uploaded file named 31F9D1B3-0DB6-4BA9-B48B-3877EAEC4E8D.jpeg

Thumbnail of the uploaded file named 884C0EB7-7409-4A96-813C-EFA05CCA2BC5.jpeg

Emily from SWISCO responded:

March 3, 2023

Thank you! This balance looks like it could be our Series 395. This has a 19-005 top and 15-001 bottom nylon fitting. As long as those match up then you should be good to go.

A handy person from Florida says:

March 6, 2023

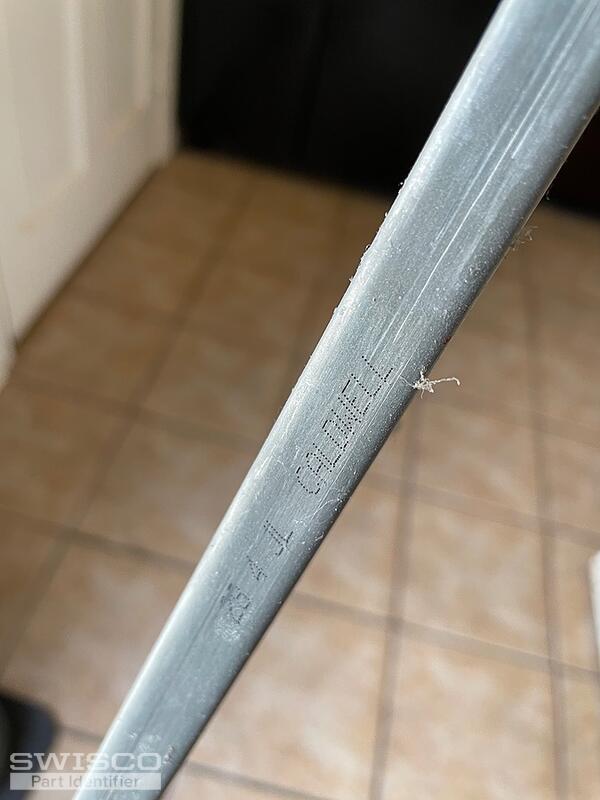

Thank you for you help! One last question: It appears my stamp (shown in photo) is a "28 4 JL" and I was wondering if you might know which sash weight range this corresponds to?

Emily from SWISCO responded:

March 7, 2023

Certainly! You would want the 2840 spring strength option based on your 28 4 stamp. A pair of balances with this option will support a sash weighing 23 to 28 pounds.

Let me know if you have any other questions!

28" Series 395 Channel Balance

S395-28

$10.45
