Replacement Parts

Question

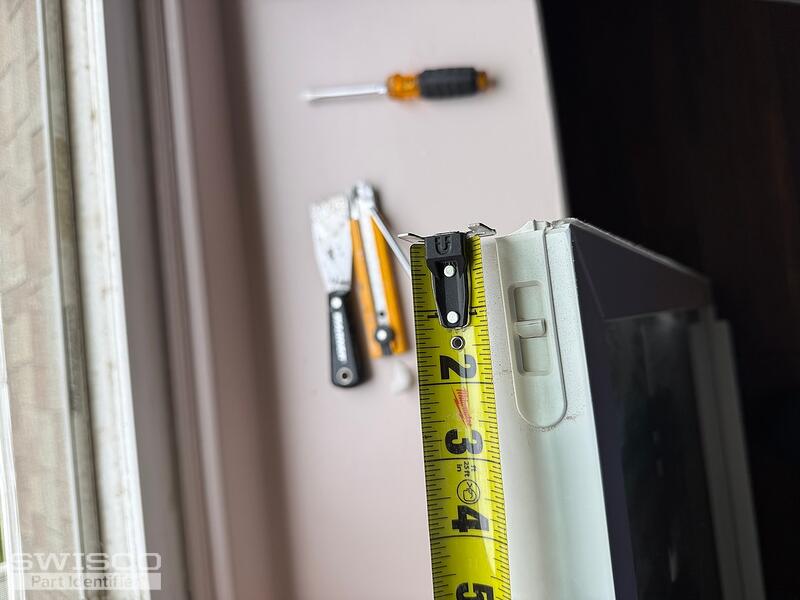

I am looking for these replacement parts for two windows. I need 4 of each. I am unable to track down the piece that holds the coil in position. Also, not sure how the window lock pieces are installed.

Paul · Accepted Answer

Hello,

We don't carry that particular coil balance set up, but we offer a similar assembly, the Series 140. Review the specifications to see if this could work for your repair. You will also have to replace the pivot bar with something like our 26-398 or 26-405.

Alternate image for S140-10

We can't be sure based on a damaged latch, but the 26-243A and 26-244A would be a good place to start, depending on how the specifications compare to an intact latch. The top is a different shape, but the bottom that installs in the sash has a rounded back, as shown below. Thanks for posting!

Dimensions for 26-244A
