Replacement Parts Windows

Quick Learner

Apr 24, 2012 1:48 pm

Please note the bottom portion of the sash is torn. Need to replacement the bottom of the sash if possible. It is light sand in color. I need four metal brackets that go into the spiral guide, also black plastic parts that is identified in the downloaded pictures.

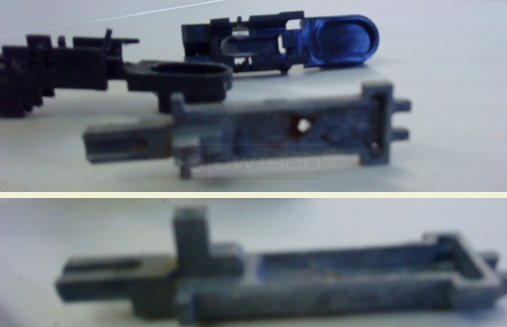

User submitted picture of pivot bar and casing.

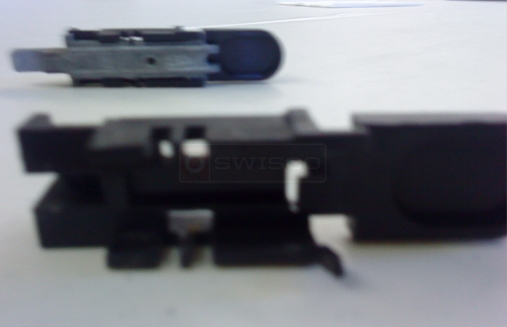

User submitted picture of replacement pivot bar with brackets.

4 Replies

Paul from SWISCO

Apr 26, 2012 11:59 am

Thanks for posting. Please take a look at our 26-125 lower sash pivot bar. Do you think this might work for you?

Handy Person from Medway, Ohio

Apr 26, 2012 1:28 pm

The 26-125 pivot bar will NOT work. Note the lower side profile as noted in the 3rd picture in your response. . .

Paul from SWISCO

Apr 26, 2012 1:49 pm

Doesn't that metal part snap into the plastic, which is then used as the entire pivot assembly itself? I believe that the 26-125 could be used to replace this entire pivot assembly, including the plastic.
