Replacement Sash Support Spiral Balance Shoes and tilt latches

Handy Person from Collingwood ON Canada

Aug 25, 2018 5:59 pm

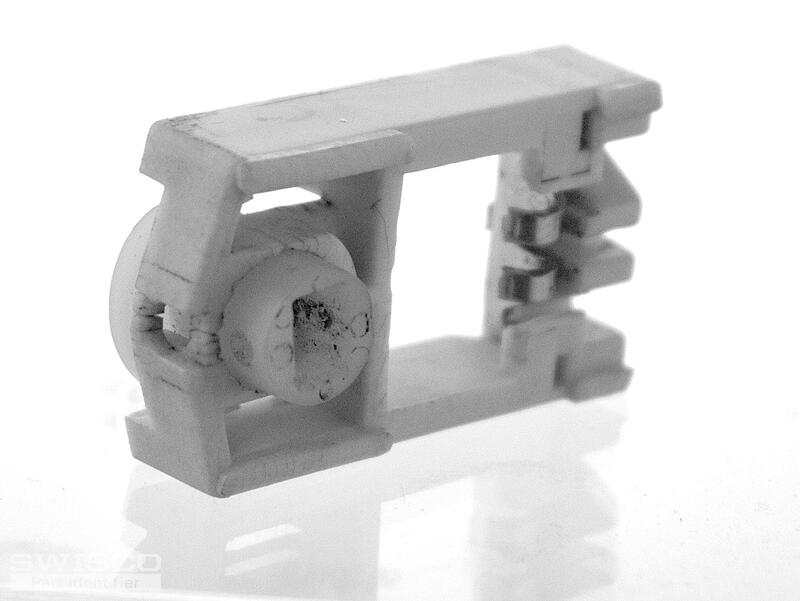

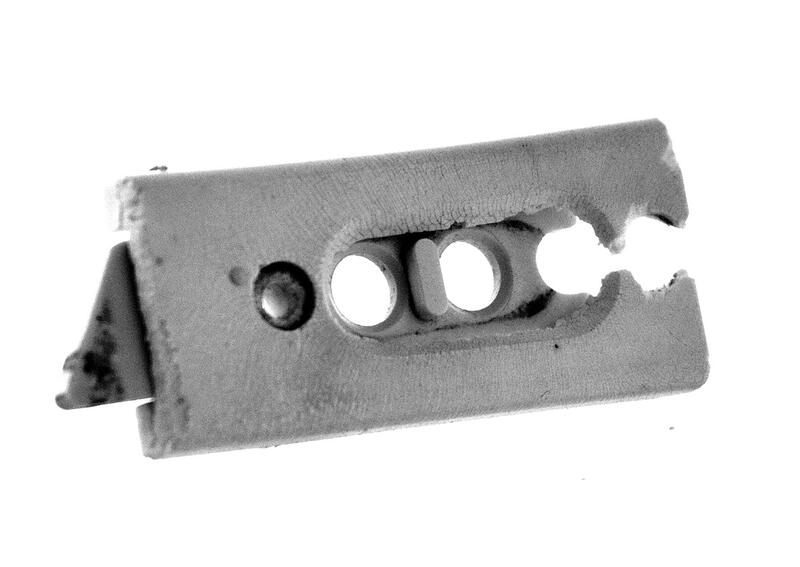

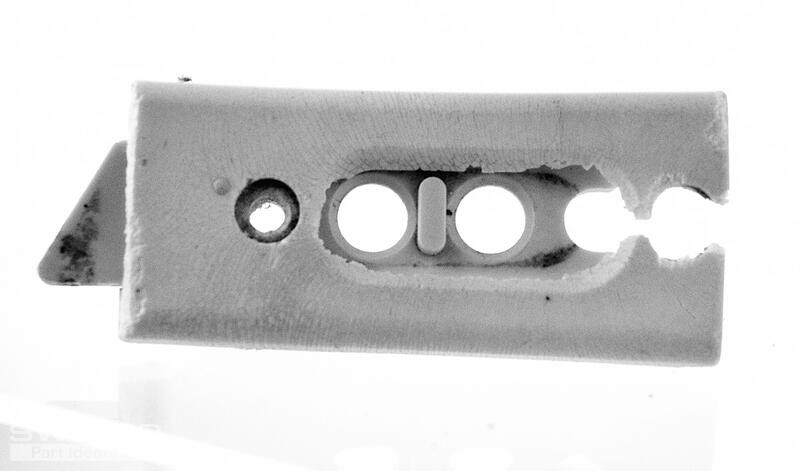

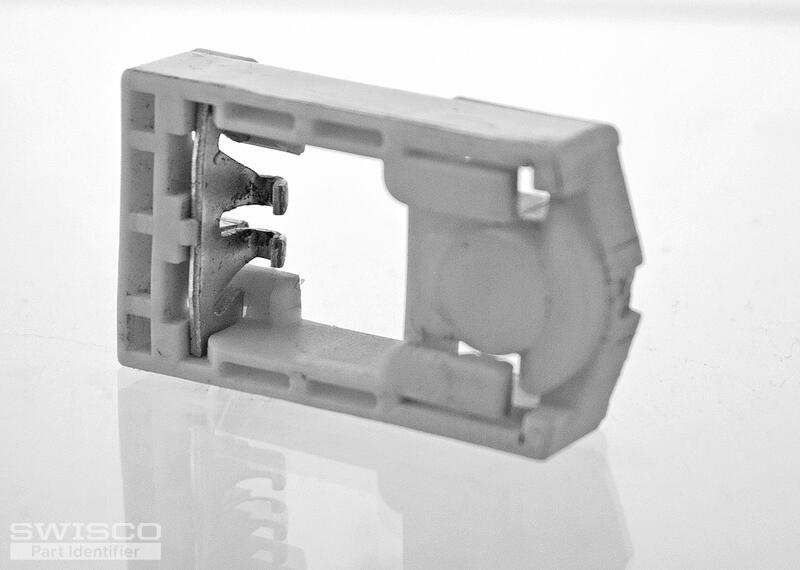

I'm looking to replace these parts on several windows. They are an older style and are still working well other than some wear and tear on these parts. Any help in locating these replacement parts or a suitable upgrade part would be appreciated.

4 user uploaded images

3 Replies

+ Add a Comment

Paul from SWISCO

Aug 31, 2018 8:27 am

EXPERT

The tilt latch you are inquiring about is no longer offered. We offer the 26-120 and 26-121 as substitutes. Compare the screw placement of your part with ours to see if this can fit into your part's place. As for your pivot shoe, we need to know the width, height, and thickness of yours so that we can narrow down which ones will work as a replacement.

Handy Person from Collingwood ON Canada

Aug 31, 2018 3:43 pm

The tilt latches should be fine as the screw holes on mine are a smidge under 2 1/8th (2 3/32nds if we are being precise)

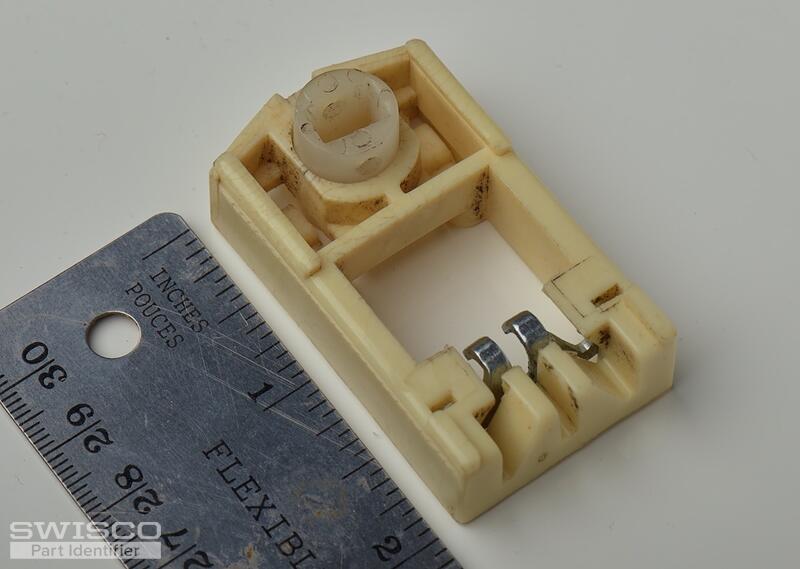

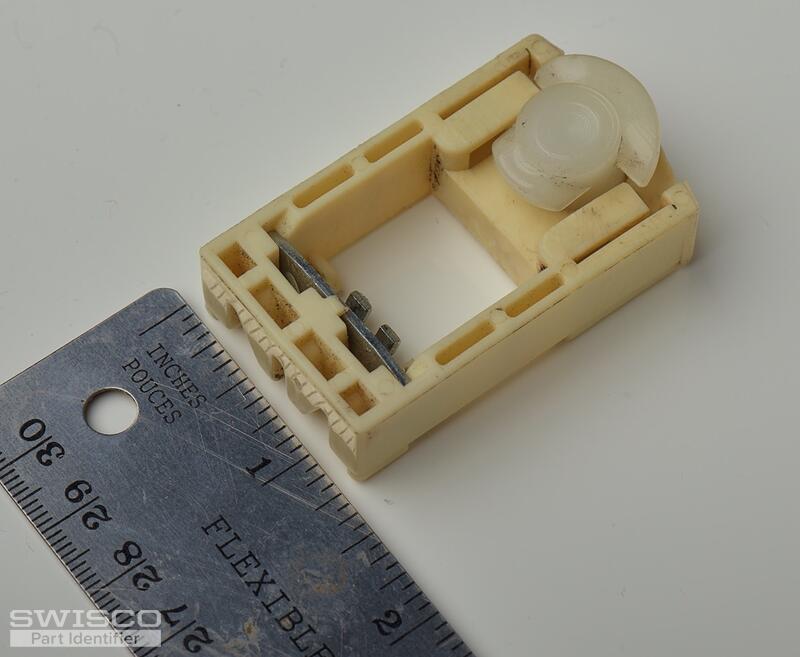

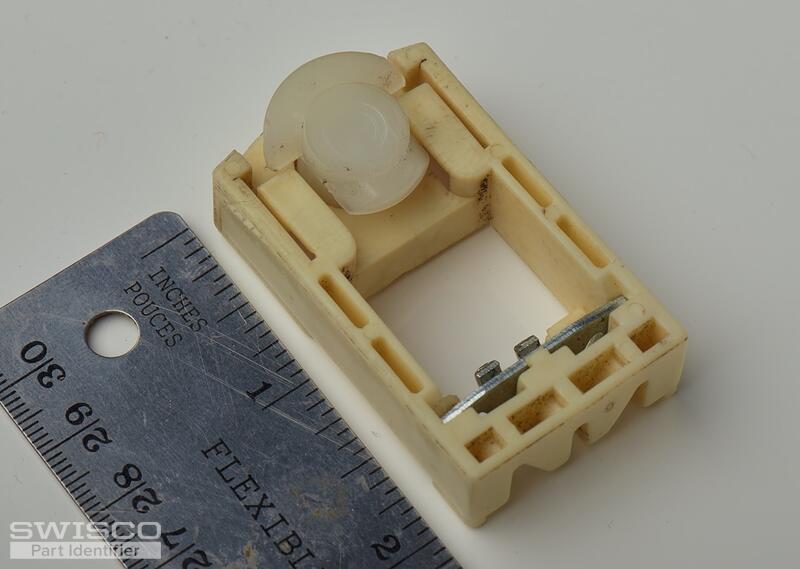

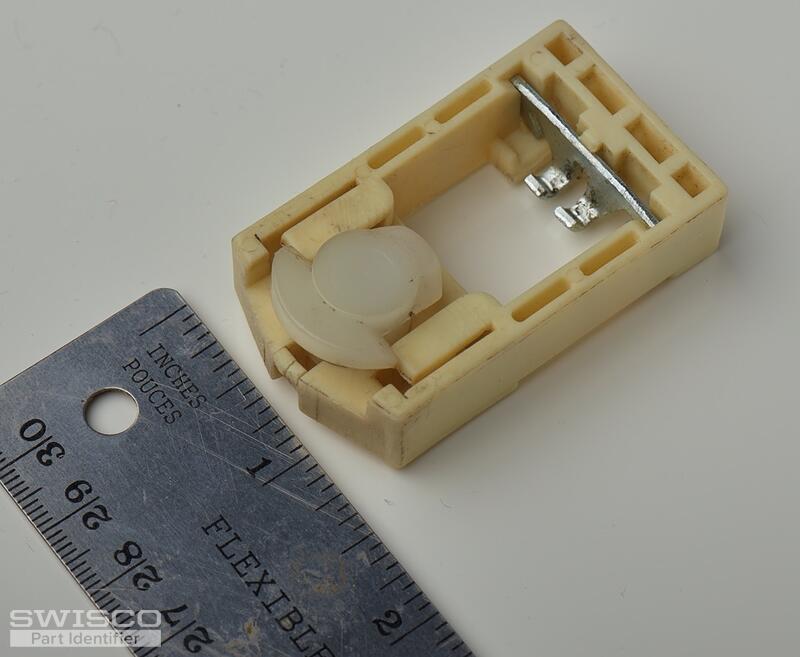

I'm adding new photos of the pivot shoe that measures at its lowest points 2 1/8"th L x 1 1/4" W x 1/2" D. I hope this helps

4 user uploaded images

Paul from SWISCO

Sep 7, 2018 10:11 am

EXPERT

Thank you for the additional information on your pivot shoe. Based on the dimensions you provided to us, we believe you may be able to use our 15-046 pivot shoe. Take a look to see if you agree.
