Replacement Window Channel Balancers

Handy Person from St. Paul Mn

Jun 22, 2023 8:43 am

Hello,
I have a tilt window that I am not sure of the manufacture.

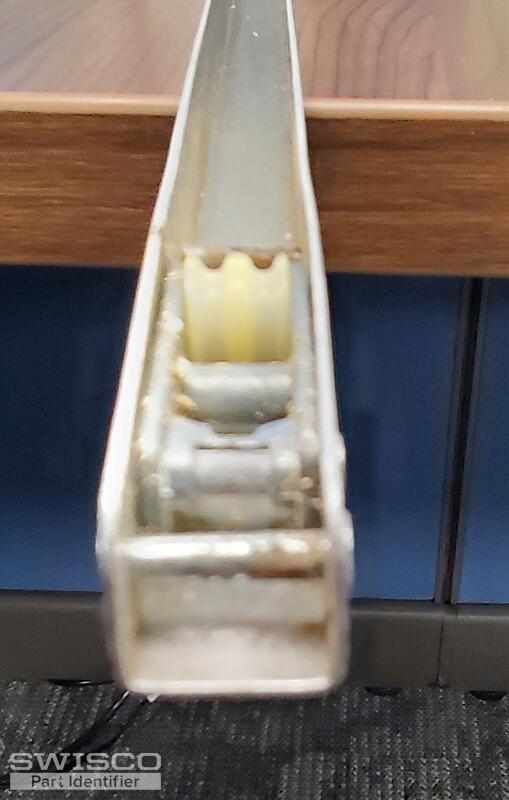

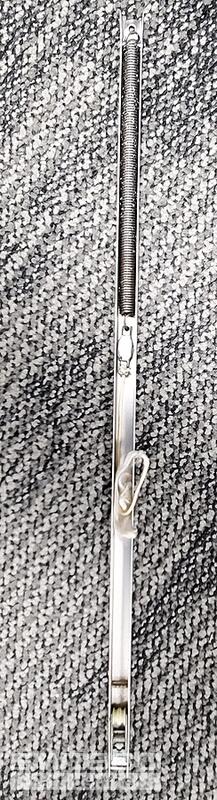

The channel measures 21" long appears to not be ribbed.

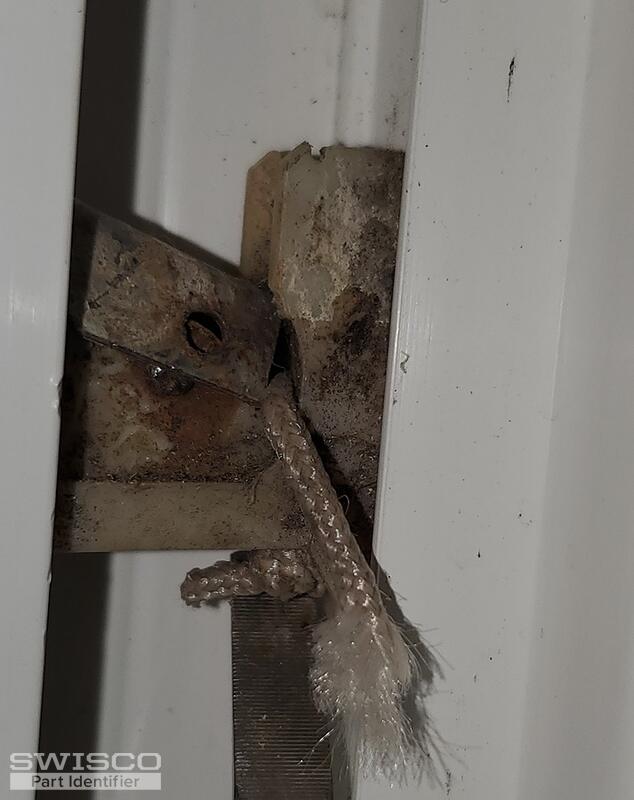

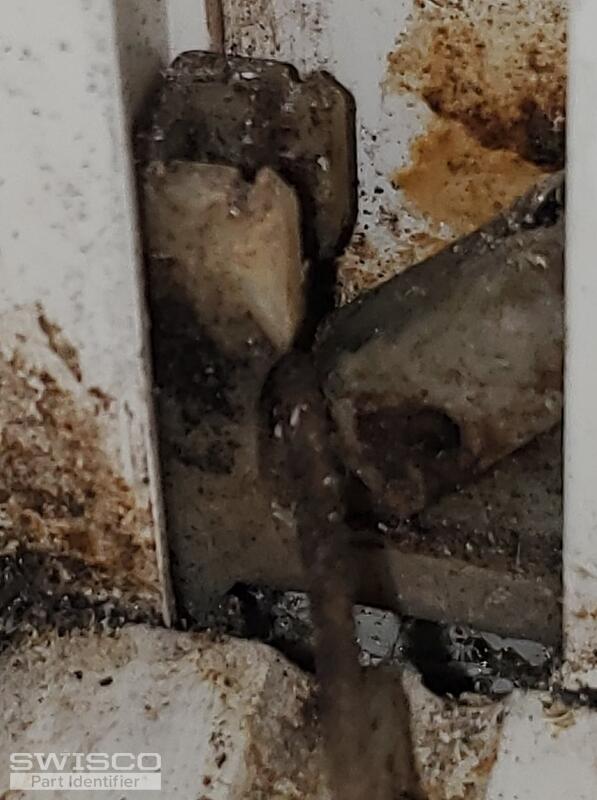

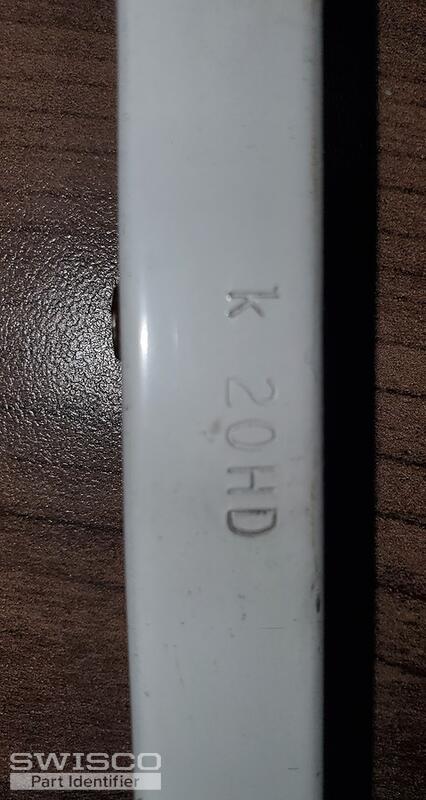

On the channel is stamped K 20HD and it appears to have a balance knife lock shoe attached.
The channel was attached with one screw. inside the channel in the mounting screw area there was a mounting Screw-way

See Photos attached for images.

What balancers would you suggest that would fit my application.

Thank you!

Rick

5 user uploaded images

6 Replies

Jasmine from SWISCO

Jun 23, 2023 1:14 pm

Thanks for posting! Your channel balances look a lot like our S751-21 with the 15-014 knife lock shoe and a 20HD stamp. To determine if the shoe connected to this balance is the correct one for your balances, I would recommend comparing the design and measurements of the shoe shown below. If you are unsure, please feel free to send a picture of your shoe removed from the window.

Also keep in mind that the shoes that come installed on our standard Series 751 balance is black.

Dimensions for 15-014

Handy Person from St. Paul Mn

Jun 28, 2023 11:24 am

Hi Jasmine,
thanks for the quick reply.

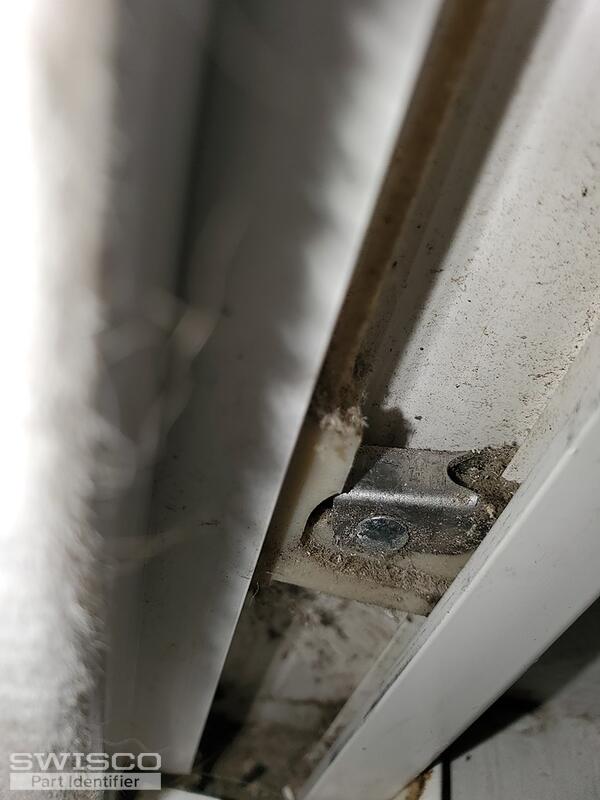

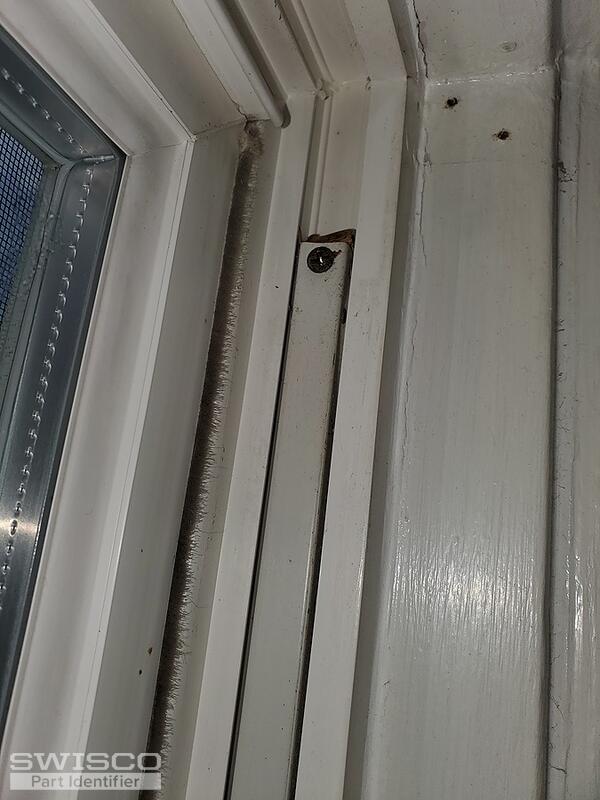

The balancer I have is the NON-Ribbed type and can be removed from the jamb liner by removing the one screw at the end as shown in the attached photo.
I am wondering how to remove the Balance knife lock shoe from the channel. It appears that it is similar to 15-014.
The jamb liner is not removeable as far as I can tell. Do I need to cut a slot in the channel up near where the channel balancer is attached to the jamb liner?

It does look like I have a balancer similar 751 series with 15-014 attached.

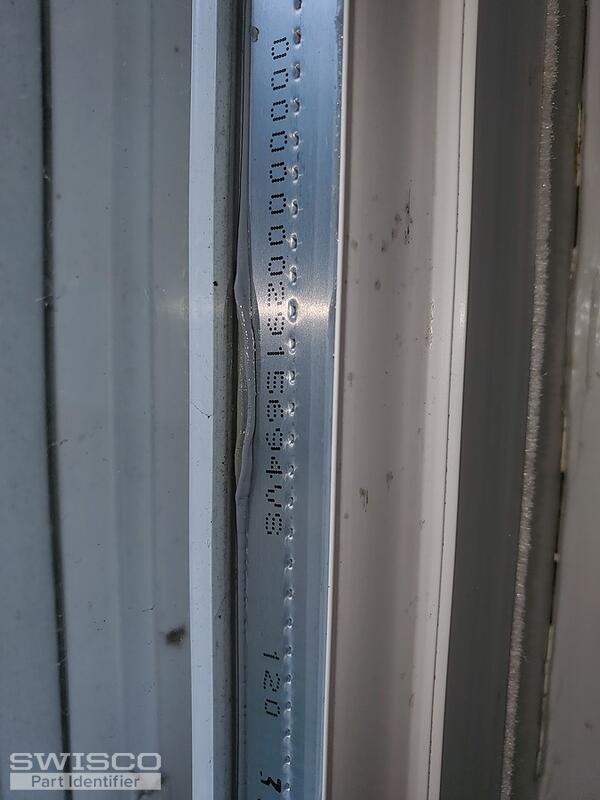

On the inside of one of the windows there is a number 291569VS which you can see in the attached photo

Thoughts?

Thank you!

3 user uploaded images

Jasmine from SWISCO

Jun 28, 2023 1:32 pm

Thanks for confirming! Since you have a non-ribbed channel you will need a special order balance. The balance you'll need will have the S770-21 channel balance with the 15-014 knife lock shoe attached. To determine the stamp needed for this special order balance, I'll need to know the exact weight of the sash the balances support. I am unable to cross-reference the stamp from the existing balance, unfortunately.

To get the order link made up for you I'll also need to know the exact number of balances you intend to purchase. There is an order minimum of (2) balances per custom balance.

To remove the knife lock shoe from your channel you will need to make a cut-out in the window frame. Be sure to exercise caution when doing so. The cut-out will need to be in an area closer to the top of the window so that the window can continue to slide up and down properly, it is also best for the shoe to be retracted into the balance.

Handy Person from St. Paul Mn

Aug 3, 2023 12:04 pm

Hi Jasmine,
Sorry for the long delay- I Finally got back to the house with the window issue.

The window weight measured 11.1 lbs. I would like to have 2 custom balancers made with the S770-21 channel balance with the 15-014 knife lock shoe attached.

Thank you!

Jasmine from SWISCO

Aug 3, 2023 3:32 pm

Hello,

That's okay!

Thanks for confirming the information. I've forwarded a link with a quote for the requested balances. You'll be able to use this link to review the quote and place the order for your balances.

Be sure to check your spam/junk folder for the email if you do not find it in your primary inbox.

Let me know if you have any questions.

Have a great day!
