Replacement Window Coil Balances Needed

A quick learner says:
April 29, 2013
Hi,

I'm trying to find a window coil balance to replace the broken ones I have in two of my windows. See attached window model sticker and the balance itself. Will your S140-20 be a possible replacement? Do you have any suggestions?

Thanks

James

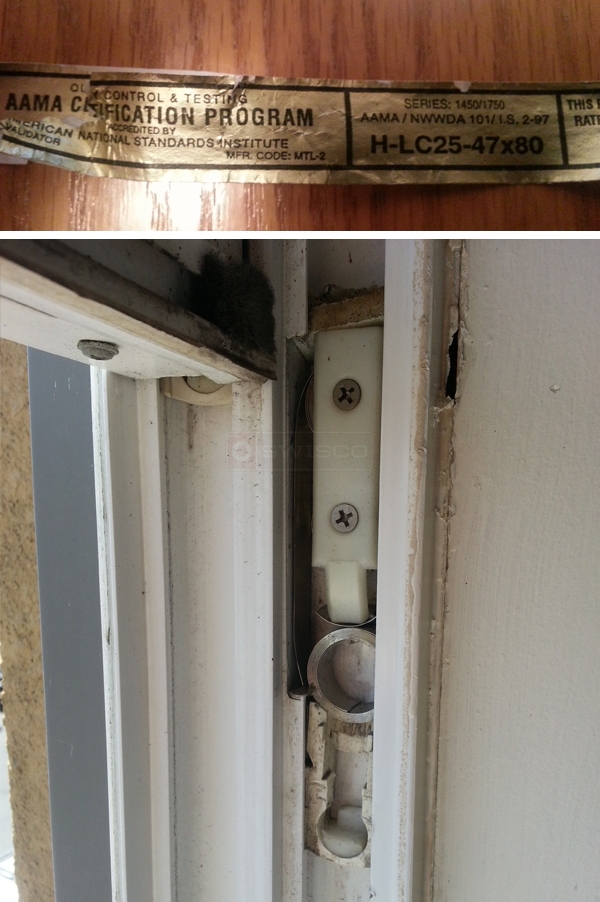

User submitted photos of a coil balance.
AAMA MFG CODE: MTL-2,SERIES: 1450/1750, H-LC25-47x80
Profile picture of Tom
Tom from SWISCO responded:
April 29, 2013
Hey, James, thanks for contacting us. Take a look at our 15-180 pivot shoe. Does this look like a match? If so, you should also check out our Series 190 coil spring, 15-181 clip and 15-182 bushing. Let me know what you think.
A quick learner says:
April 29, 2013
Thanks for your response Tom. I don't have these windows handy right now, they're in a rental...Does the setup you mentioned require one or two coil springs per set? What you've provided looks like a match.
Profile picture of Tom
Tom from SWISCO responded:
April 29, 2013
Not a problem. The parts I recommended are pretty flexible, so there's no set number of springs, per say. It all depends on what you had installed in the window originally.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Double Support Detent Clip
Double Support Detent Clip
15-181
$6.17
Balance Bushing
Balance Bushing
15-182
$1.80
20 lb Series 140 Quick-Tilt, Dual
20 lb Series 140 Quick-Tilt, Dual
S140-20
$14.72
